CRL-U.S. 550 Wide Stile Butt Hinge Pair - Custom Black Anodized
CRL-U.S. 550 Wide Stile Butt Hinge Pair - Custom Black Anodized
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# DC52422
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Black Bronze Anodized Class 1
Overview
- Includes Active and Inactive Leaf With All Standard Hardware
- Custom Fabricated to Accept Optional Hardware Applications
- 9-1/2" (241 mm) Bottom Rail Available to Comply with A.D.A. and Title 21 Applications

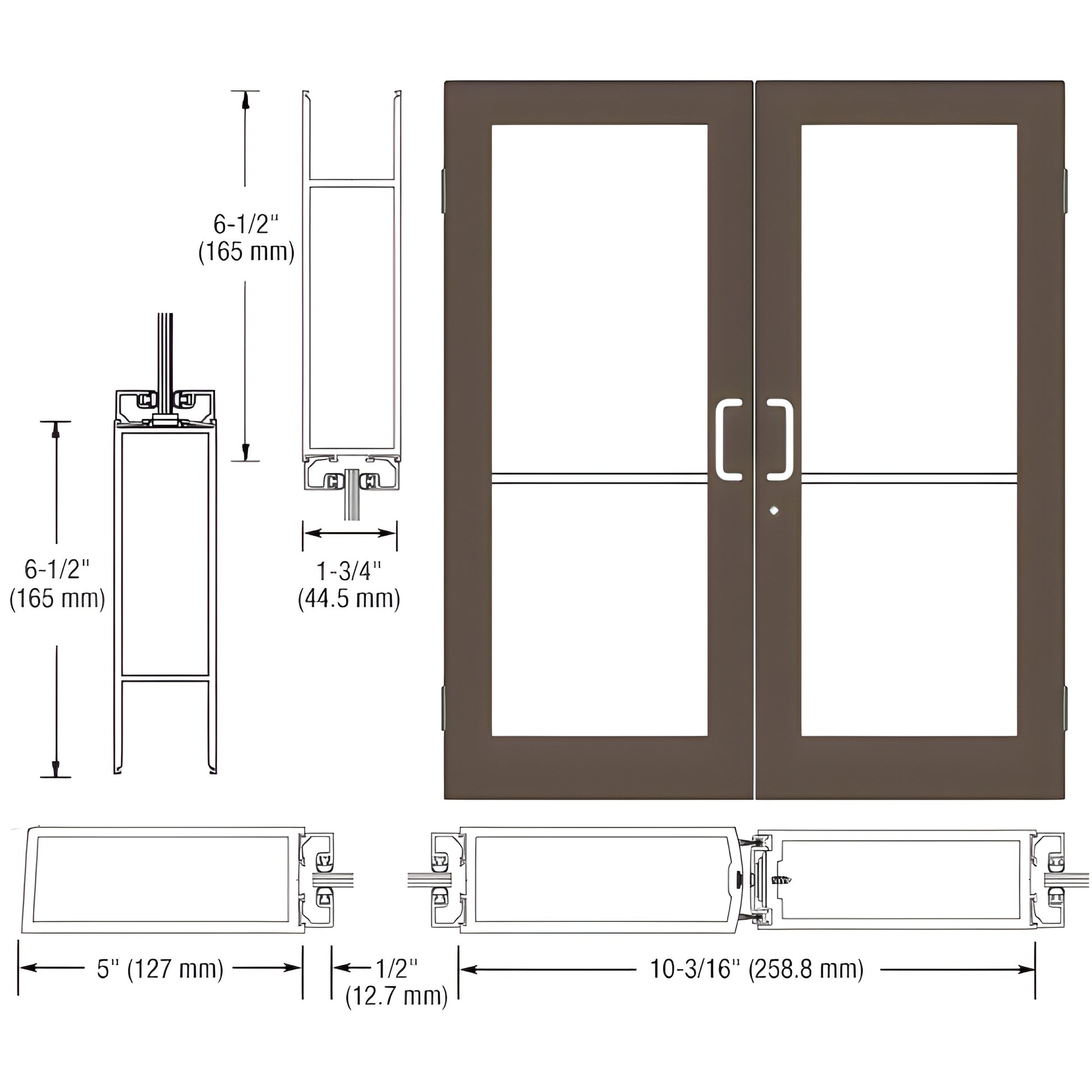

This Custom Wide Stile Entrance Door (SKU DC52422) features 5" (127 mm) stiles, a 5-1/2" (140 mm) top rail, and a 6-1/2" (165 mm) bottom rail. Designed for commercial and institutional entrances, it ships prepped for Butt Hinge hardware and includes glass stops for 1/4" (6 mm) tempered glass (glass supplied by others). The unit is custom fabricated to accept a wide range of optional hardware applications, making it ideal for retrofit and new-construction projects.
Protruding hardware (handles, pivots, etc.) is boxed separately to prevent transit damage and must be installed by the customer upon delivery.
Need exact shipping weight or a custom hardware configuration for SKU DC52422? Contact CRL Customer Service or request a quote today.
Specifications
BIM Objects - rvt
