Product Details
- Back Bar is Punched 12" (305 mm) on Center
- Supplied with Vinyl and Screws
- Available in Four Finishes

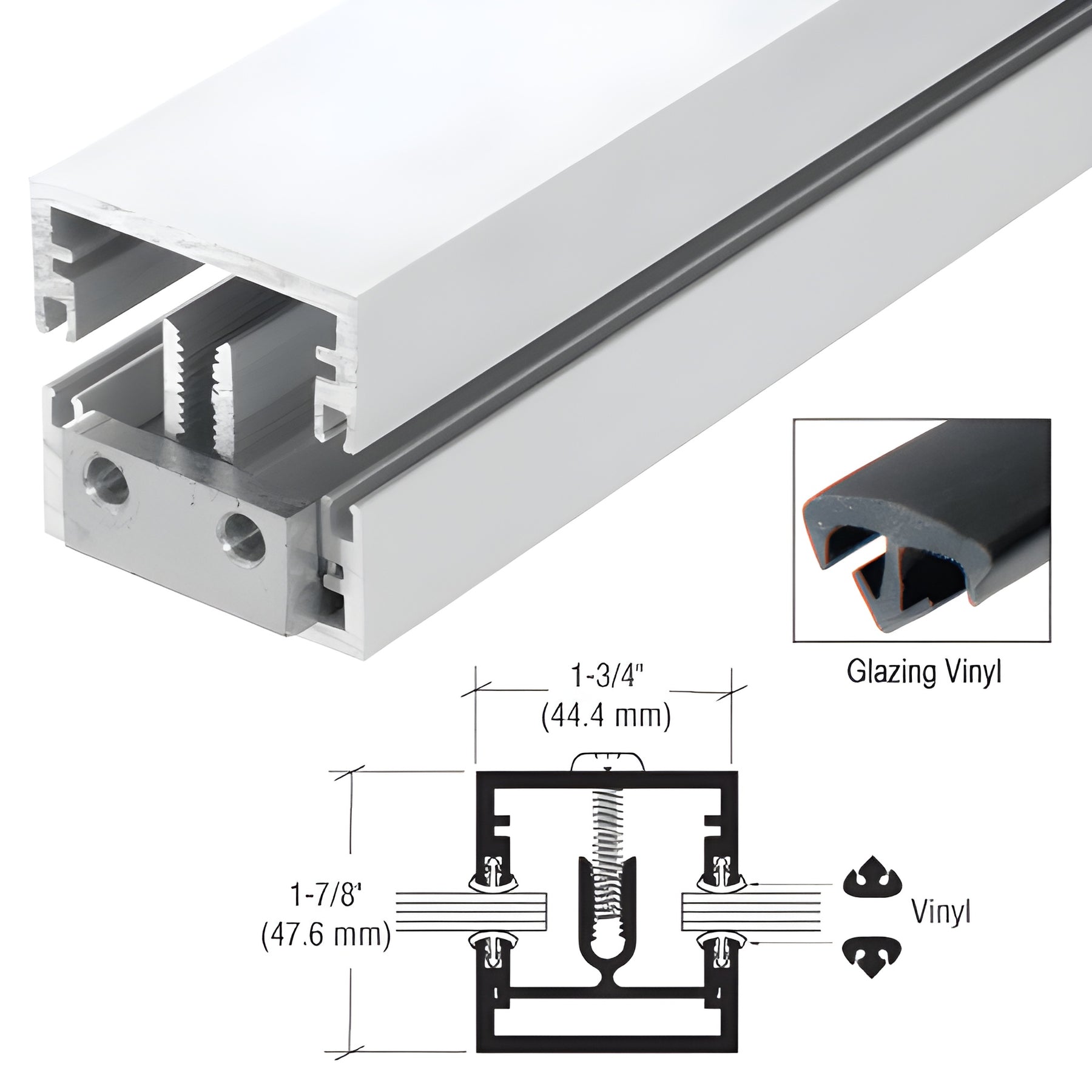

CRL Shallow Division Bar with Vinyl is lightweight extruded aluminum framing sections used vertically or horizontally for small fixed window units. A division bar consists of a face member which has an extruded spline with threads for receiving exposed fasteners inserted through the back member which has holes drilled in it. The back and face members are screwed together after the glazing infill is installed to form the window. Each piece of CRL Shallow Division Bar includes 100' (30.5 m) of glazing vinyl and 20 each 1/4-20 x 1" (25.4 mm) Pan Head Phillips Machine Screws.
