CRL-U.S. Aluminum 250 Bone White Narrow-Stile Door - Geared Hinge
CRL-U.S. Aluminum 250 Bone White Narrow-Stile Door - Geared Hinge
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# DE21952
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
White Kynar
Overview
- Includes Standard Push/Pull, hanging hardware, MS Hookbolt lock, and two keyed‑alike cylinders — convenient, ready-to-install lockset (SKU: DE21952)
- 9-1/2" (241 mm) bottom rail installed for ADA compliance — ideal for commercial entrances requiring an ADA-compliant threshold
- Custom fabricated to accept optional hardware applications — built for flexible, project-specific hardware configurations

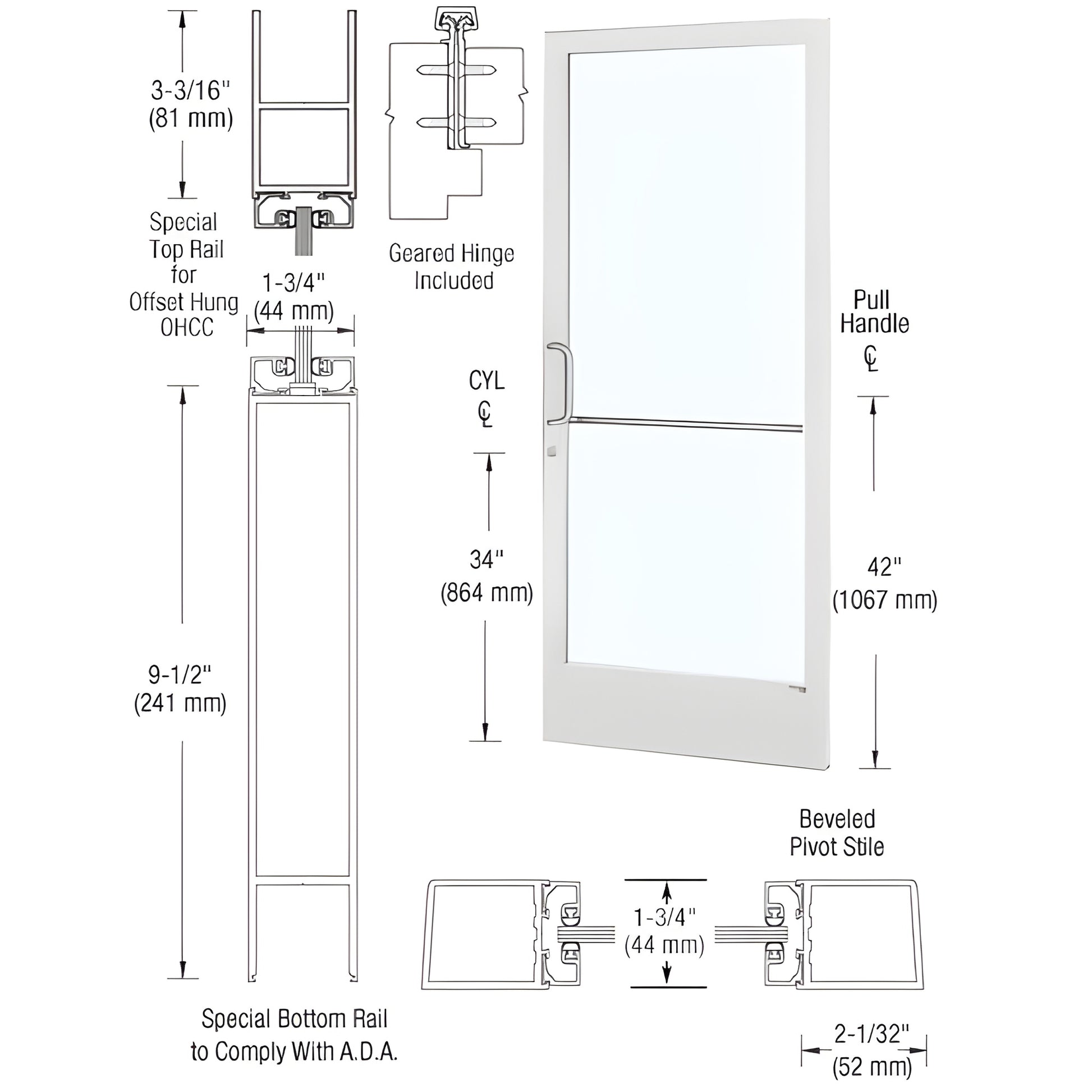

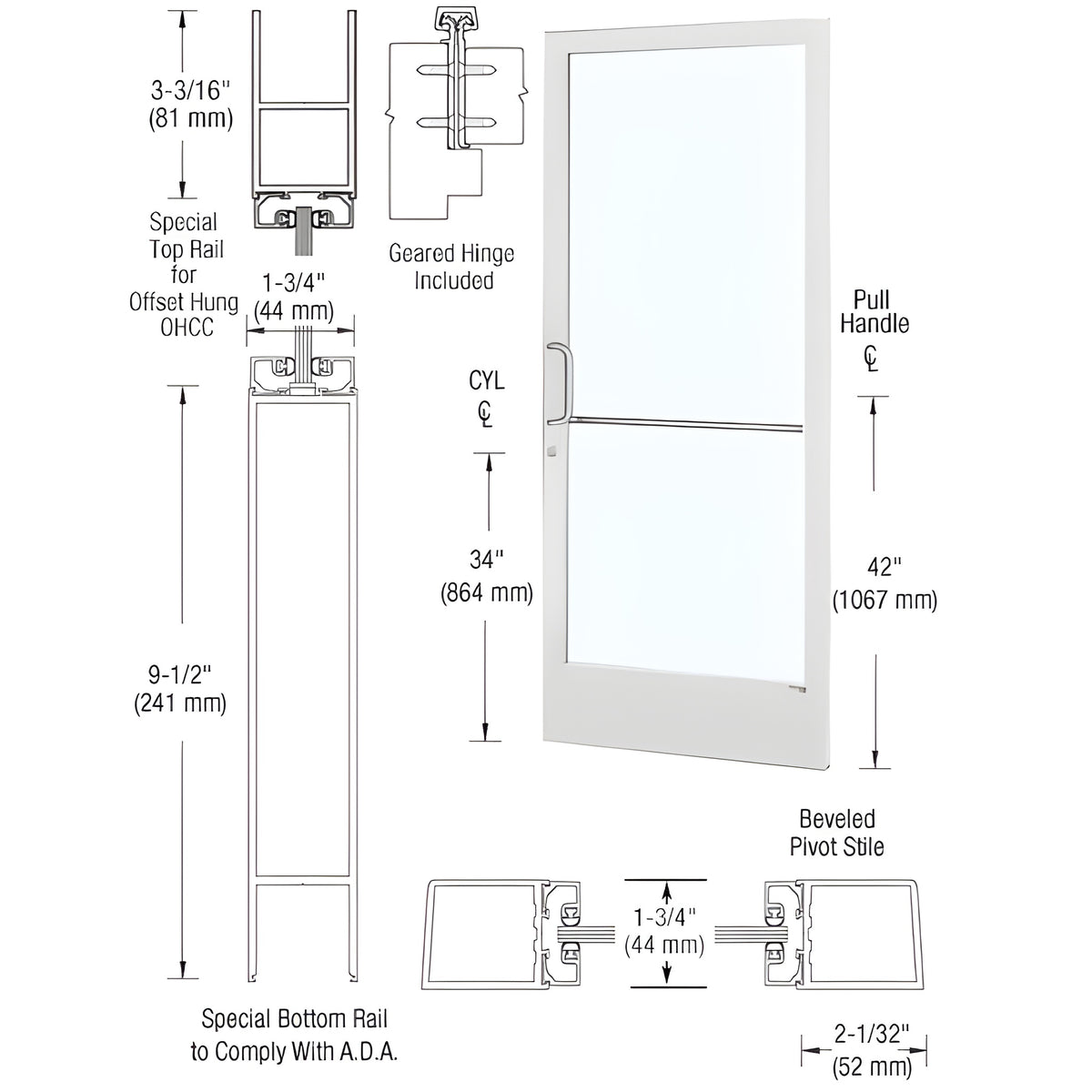

This Custom Narrow Stile Entrance Door (SKU: DE21952) features 2" (51 mm) stiles, a 3-3/16" (81 mm) top rail, and a 9-1/2" (241 mm) bottom rail. Standard construction includes stiles prepared for Gear Hinge hardware and glass stops sized for 1/4" (6 mm) tempered glass (glass supplied and installed by others). The door is manufactured ready for custom fabrication to accommodate a wide range of optional commercial hardware and access control systems.
Customer must install the included protruding hardware (handles, pivots, etc.), which is boxed separately to prevent transit damage. Note: door widths under 36" (914 mm) may not meet ADA inspection requirements.
For project quotes, custom hardware options, or to confirm ADA requirements for your installation, contact CRL Customer Service or request a quote for SKU DE21952.
Specifications
BIM Objects - rvt
