Product Details
- 9-1/2" (241 mm) Bottom Rail Available to Comply with A.D.A. and Title 21 Applications
- Custom Fabricated to Accept Optional Hardware Applications
- Accommodates 1/4" (6 mm) Tempered Glass with the Option for 1" (25 mm) Tempered Insulating Unit (Glass Not Included)
- Custom Made to Your Size Specifications
- Includes Standard Panic Pull and Hanging Hardware
- Panic Hardware and One Cylinder Ordered and Added Separately

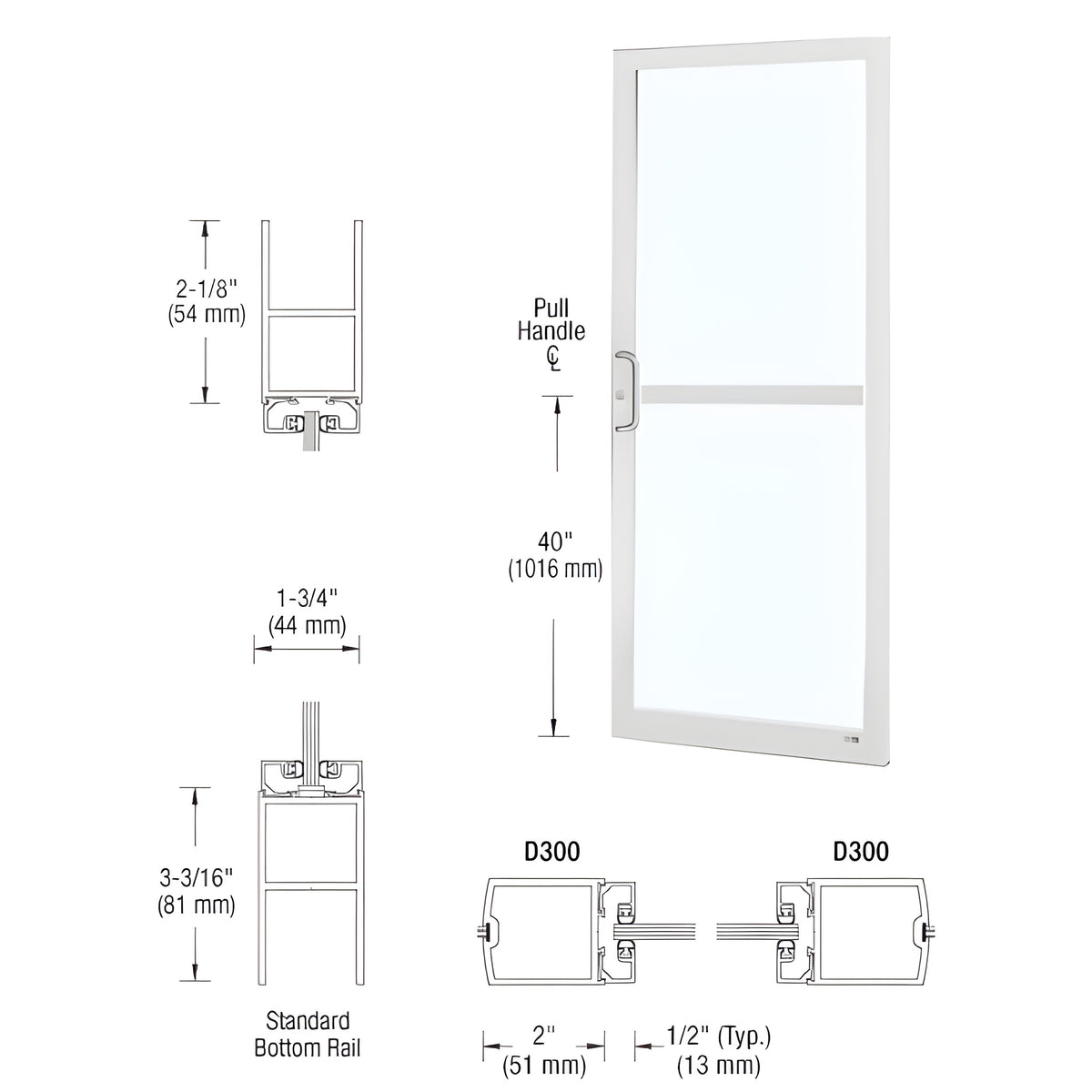

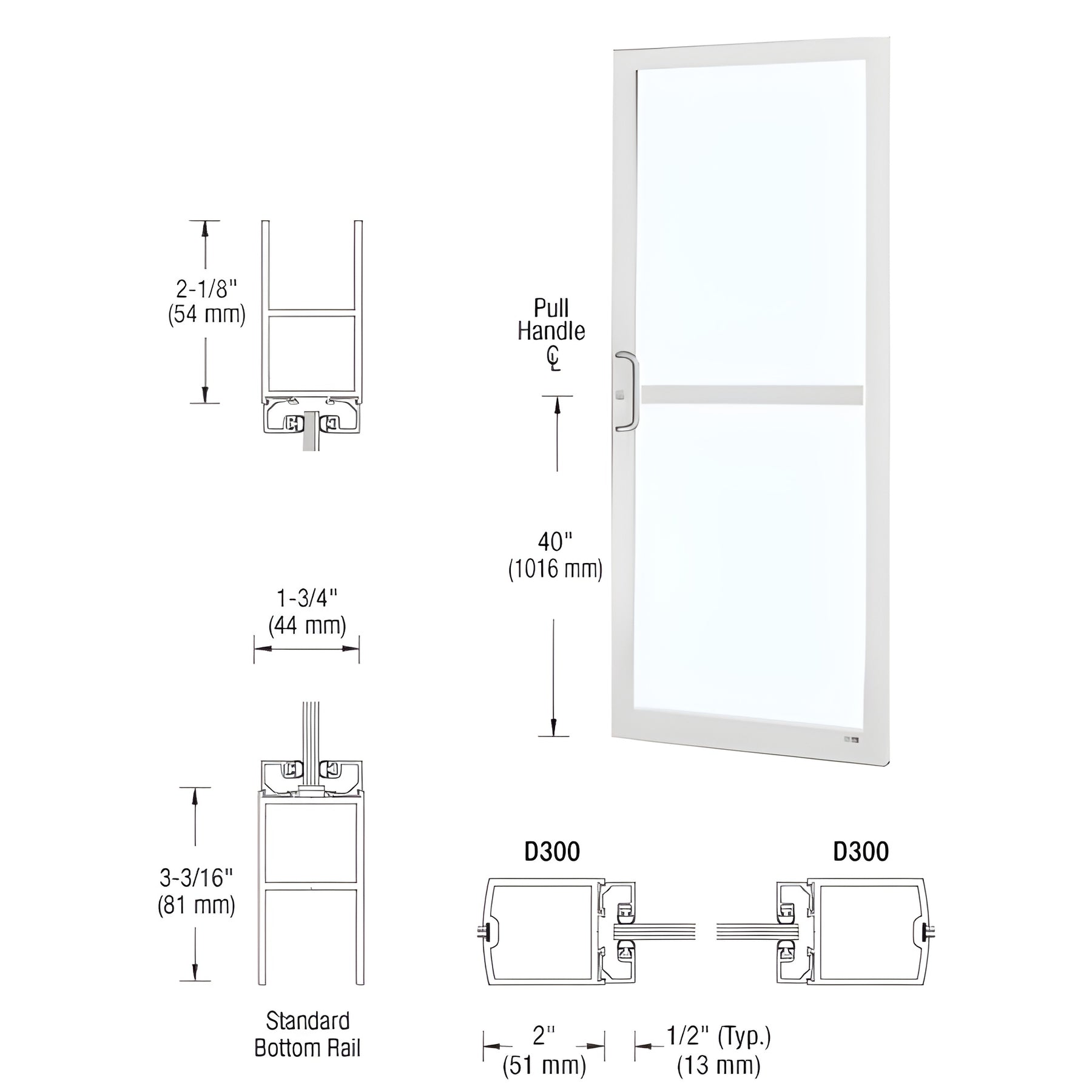

This Custom Narrow Stile Entrance Door is built with 2" (51 mm) Stiles, 2-1/8" (54 mm) Top Rail, and 3-3/16" (81 mm) Bottom Rail. Standard features include stiles for Center Pivot hardware, glass stops for 1/4" (6 mm) tempered glass (by others). Ready for custom fabrication for a wide range of optional hardware applications.
Customer must install included protruding hardware (handles, pivots, etc.) that is boxed separately to prevent damage in transit. Door widths less than 36" (914 mm) may not pass A.D.A. Inspection. Panic Hardware and One Cylinder Ordered and Added Separately.
