• SR22511 clear anodized narrow stile commercial entrance door with glass, adjustable astragal and pivot stile
1 1

CRL

CRL-U.S. Aluminum 250 Clear Anodized Narrow-Stile Butt Hinge Pair

CRL-U.S. Aluminum 250 Clear Anodized Narrow-Stile Butt Hinge Pair

Shipping calculated at checkout.
View More Information Buy More, Save More
Item# SR22511
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Clear Anodized Class 1

Overview

  • Includes active and inactive leaf with all standard hardware
  • Accommodates 1/4" (6 mm) tempered glass or optional 1" (25 mm) tempered insulating unit (glass not included)
  • Custom fabricated
  • Typically used in auto and boat dealerships

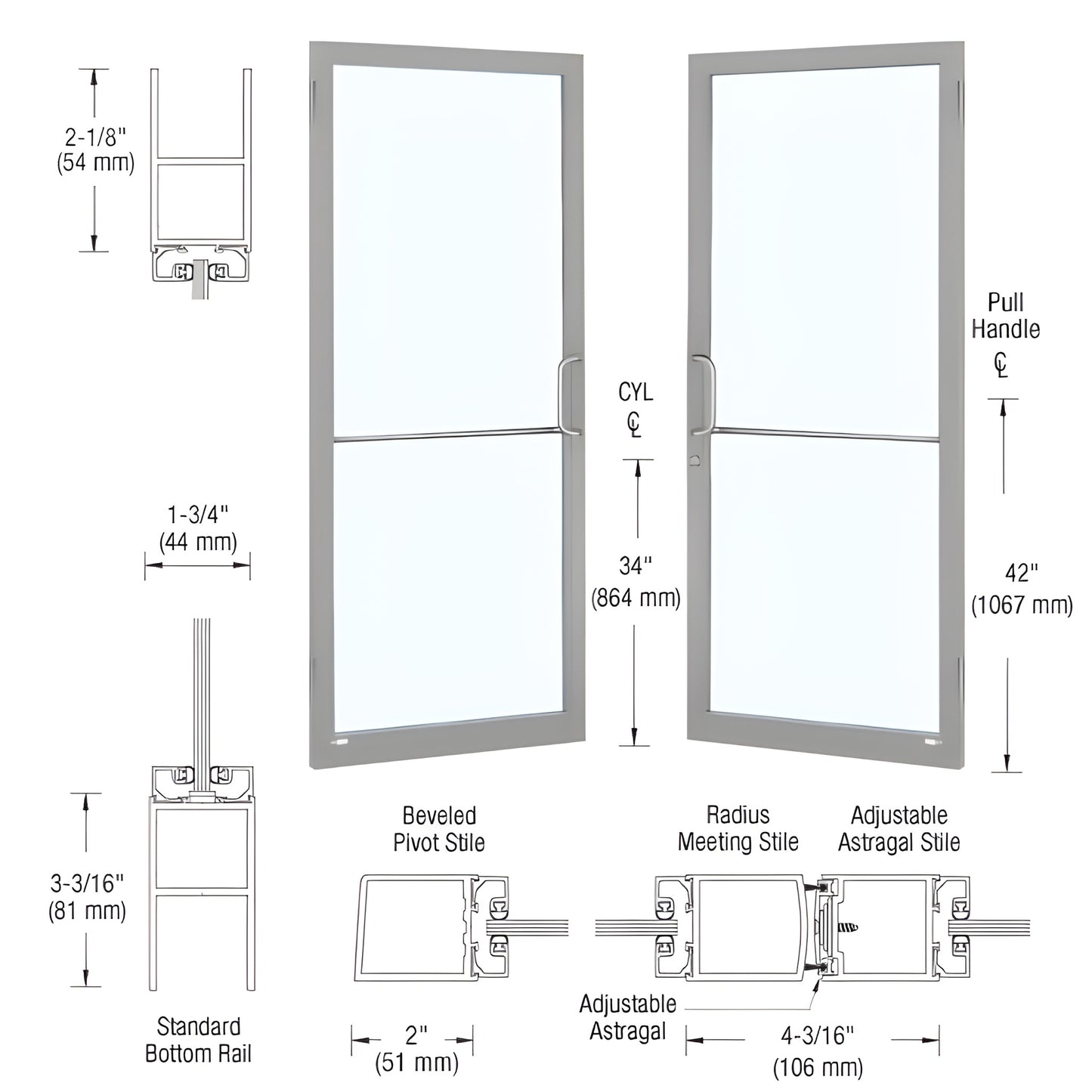

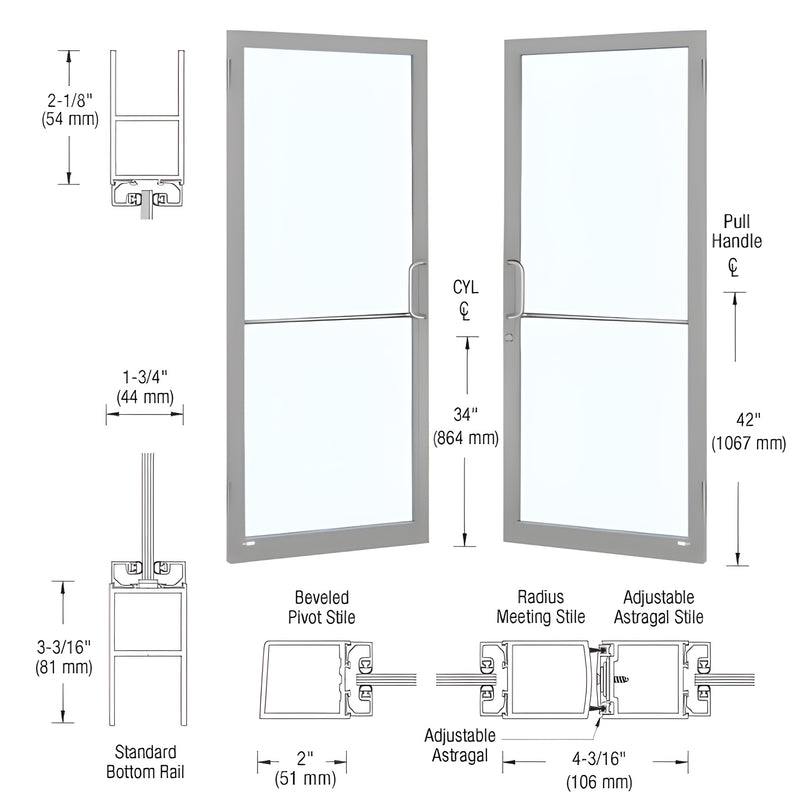

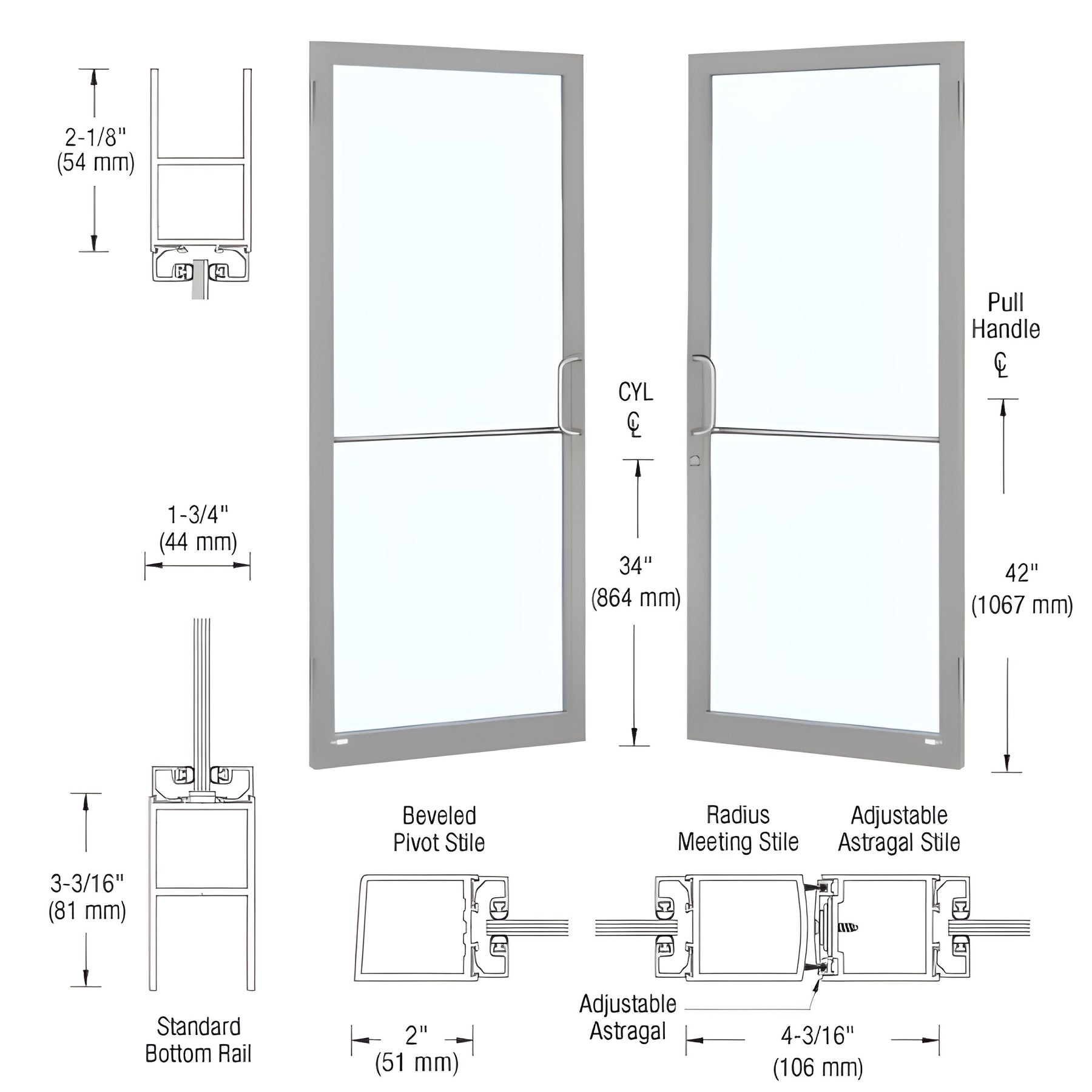

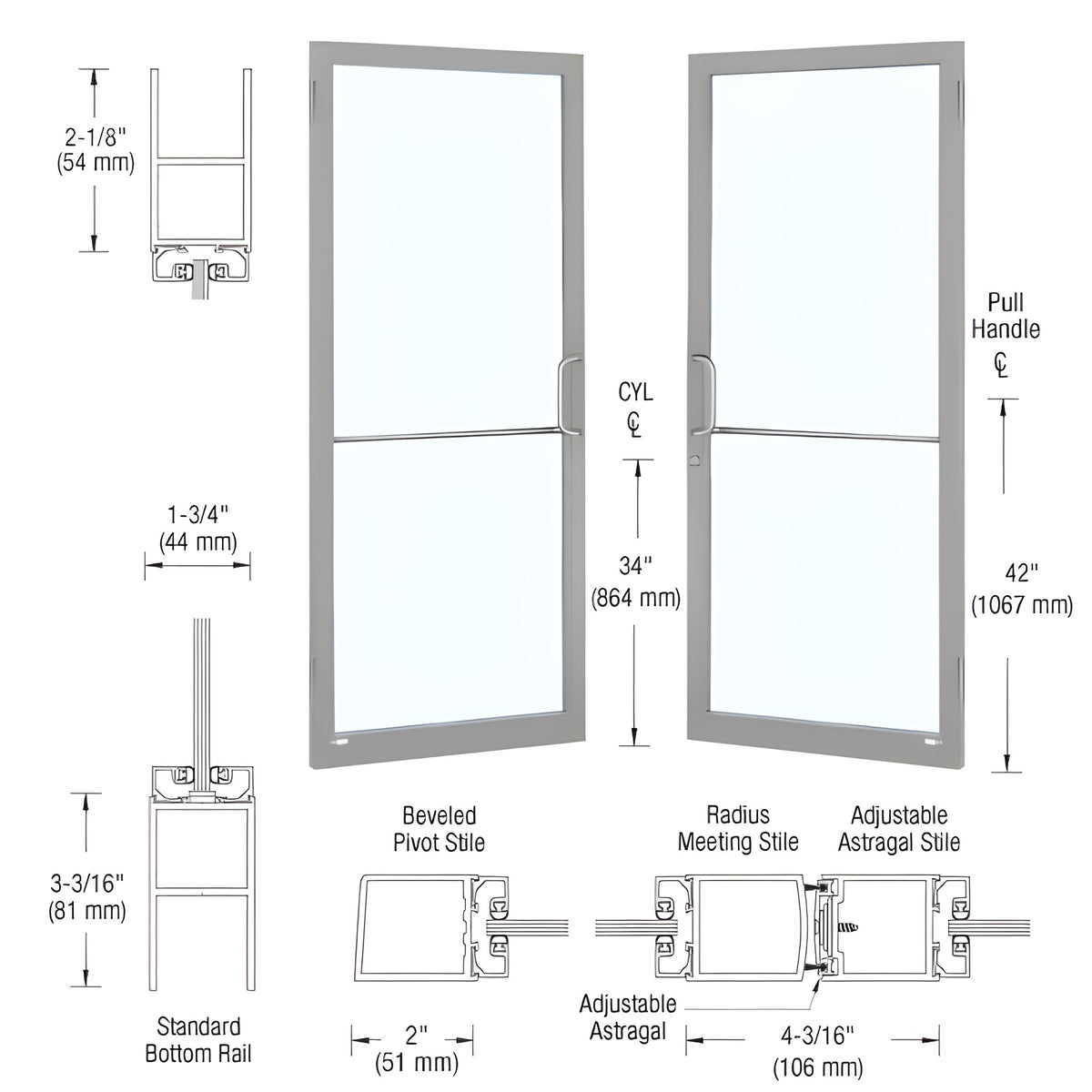

This Custom Narrow Stile Entrance Door (SKU: SR22511) features 2" (51 mm) stiles, a 2-1/8" (54 mm) top rail, and a 3-3/16" (81 mm) bottom rail. Standard design includes stiles prepared for butt hinge hardware and glass stops sized for 1/4" (6 mm) tempered glass (by others). Built for custom hardware applications and commercial storefronts, this narrow stile door is ideal for auto and boat dealership entrances and other high-visibility retail openings.

Customer-installed protruding hardware (handles, pivots, etc.) is boxed separately to prevent transit damage and must be installed on site.

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs prior to ordering, please contact CRL Customer Service. Product images are of the actual item or a close representation; colors may vary by monitor and settings.


Order this custom narrow stile entrance door (SR22511) for dealership-grade appearance and flexible hardware options.

Specifications

BIM Objects - rvt
Entrance Series 250 400 550 BIM.rvt
