CRL-U.S. Aluminum 250 Entrance Door Butt Hinge, Bone White KYNAR

• 9-1/2" (241 mm) bottom rail available to comply with A.D.A. and Title 21 applications
• Custom fabricated to accept optional hardware applications
• Includes standard push/pull, hanging hardware, MS hookbolt lock, and two keyed-alike cylinders
• Accommodates 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit available (glass not included)

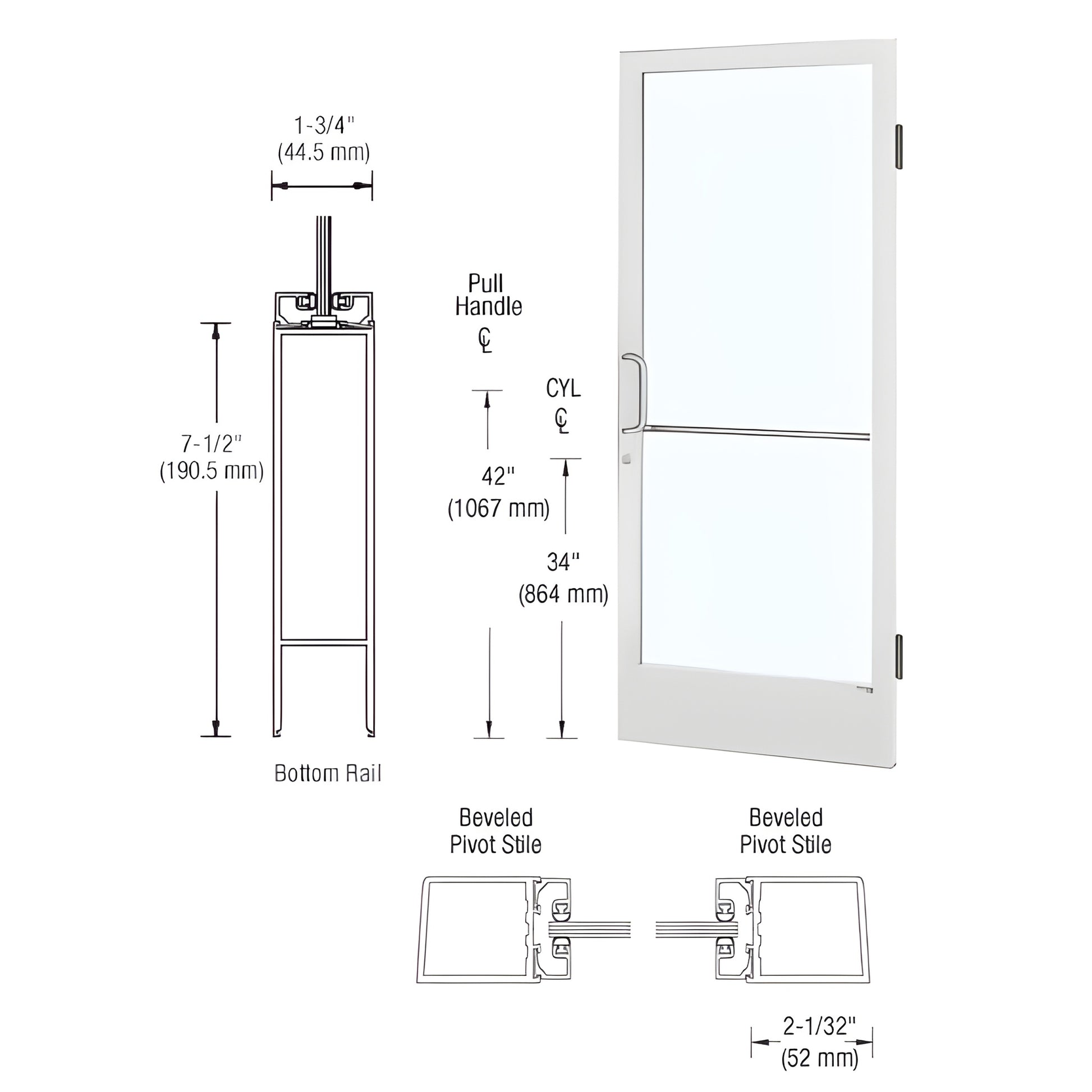

This Custom Narrow Stile Entrance Door (SKU: HE21552) features 2" (51 mm) stiles, a 2-1/8" (54 mm) top rail, and a 7-1/2" (191 mm) bottom rail. The door ships with stiles prepared for butt hinge hardware and glass stops for 1/4" (6 mm) tempered glass (glass supplied by others). Designed for custom narrow stile entrance applications, it’s ready for a wide range of optional hardware configurations.

Standard hardware (handles, pivots, etc.) ships boxed separately and must be installed by the customer to prevent transit damage. Note: door widths under 36" (914 mm) may not meet A.D.A. inspection requirements.

Order SKU HE21552 today to specify a custom narrow stile entrance door with ADA-compatible bottom rail and optional insulating glass — contact us for pricing and lead times.
