CRL-U.S. Aluminum 250 Geared Hinge Clear Anodized Panic Compatible
CRL-U.S. Aluminum 250 Geared Hinge Clear Anodized Panic Compatible
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CZ21911
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Clear Anodized Class 1
Overview
- Includes Standard Panic Pull, Hanging Hardware, Concealed Vertical Rod Panic Hardware, and One Cylinder
- Accommodates 1/4" (6 mm) tempered glass with option for 1" (25 mm) insulated tempered unit (glass not included)
- 9-1/2" (241 mm) bottom rail installed to comply with A.D.A.
- Custom fabricated to accept a wide range of optional hardware applications

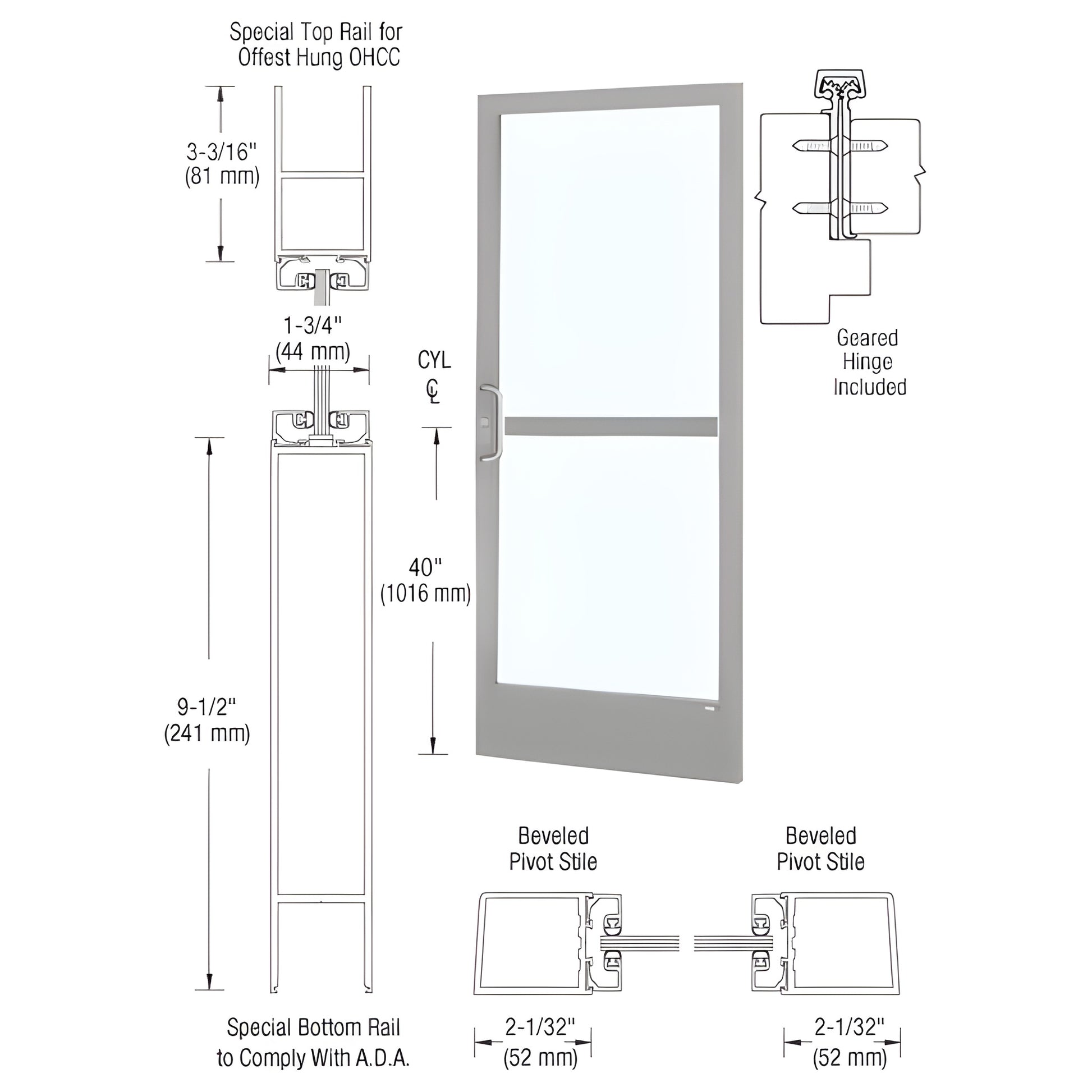

CRL Custom Narrow Stile Entrance Door — SKU CZ21911 — features 2" (51 mm) stiles, a 3-3/16" (81 mm) top rail, and a 9-1/2" (241 mm) bottom rail. Standard design includes stiles prepped for Gear Hinge hardware and glass stops for 1/4" (6 mm) tempered glass (by others). Built for custom fabrication to integrate concealed vertical rod panic hardware and other optional hardware for commercial entrance applications.
Note: Included protruding hardware (handles, pivots, etc.) is boxed separately to prevent transit damage and must be installed by the customer. Door widths under 36" (914 mm) may not meet A.D.A. inspection requirements.
Order SKU CZ21911 or contact us for custom hardware options and ADA-compliant configurations.
Specifications
BIM Objects - rvt
