CRL-U.S. Aluminum 250 Geared Hinge for Surface Mount Door Closer

• Fits 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating glass unit (IGU) capable — glass sold separately
• 9-1/2" (241 mm) bottom rail option available for A.D.A. and Title 24/21 compliance
• Custom-fabricated to accept a wide range of optional hardware applications for commercial storefronts
• Ships with standard push/pull set, hanging hardware, MS hookbolt lock, and two keyed-alike cylinders

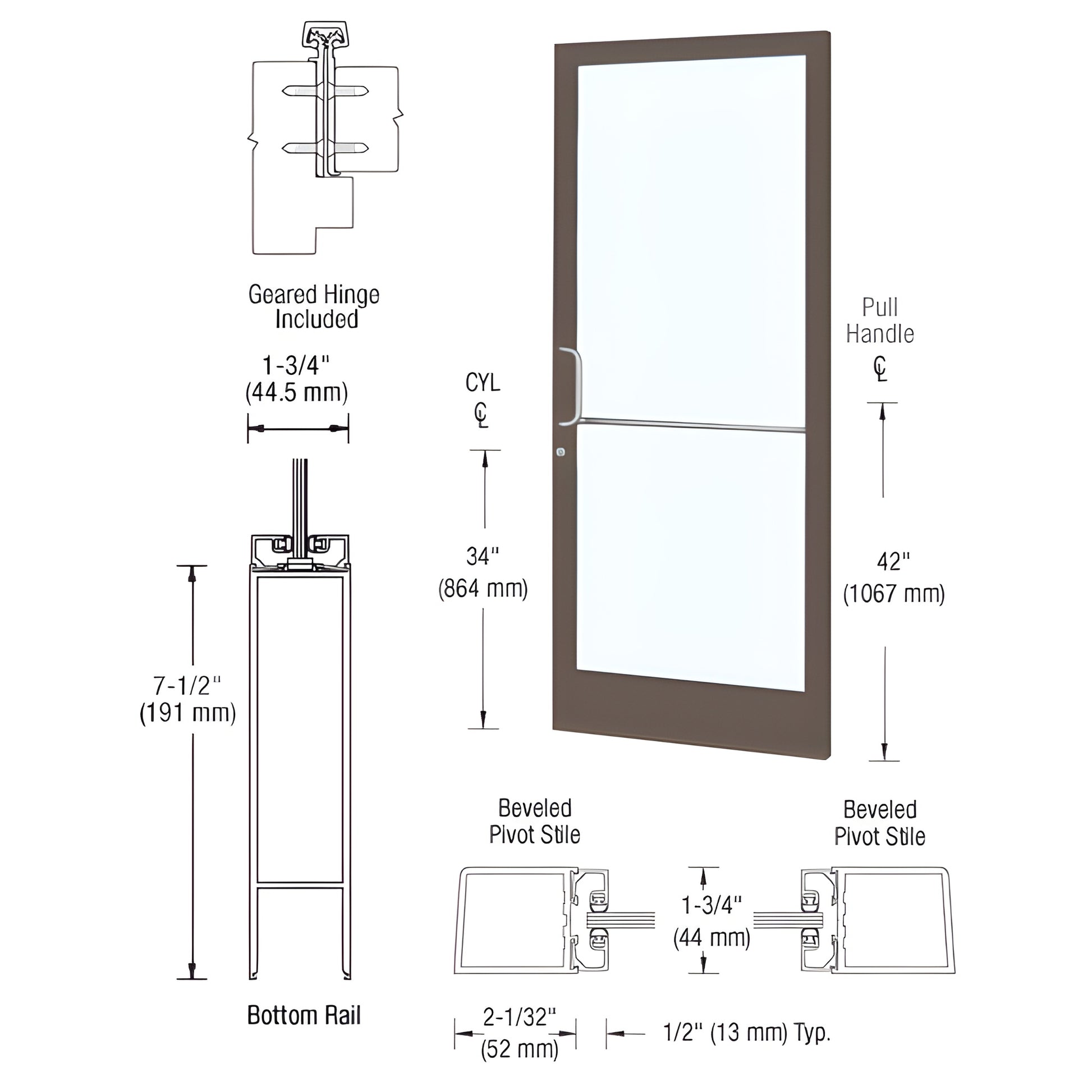

This Custom Narrow Stile Entrance Door (SKU: HE21822) features 2" (51 mm) stiles, a 2-1/8" (54 mm) top rail, and a 7-1/2" (191 mm) bottom rail. Standard design includes stiles prepped for Gear Hinge hardware and glass stops sized for 1/4" (6 mm) tempered glass (glass by others). Door is ready for precision custom fabrication to accept commercial-grade optional hardware and accessories.

Please note: protruding hardware (handles, pivots, etc.) is boxed separately and must be installed by the customer to prevent transit damage. Door widths under 36" (914 mm) may not meet A.D.A. inspection requirements. For exact shipping weights or shipping cost estimates, contact CRL Customer Service before ordering.

Order the HE21822 custom narrow stile entrance door for ADA-ready, commercial storefront applications — contact our sales team to confirm options and lead times.
