CRL-U.S. Aluminum 250 Geared Hinge Narrow-Stile, Panic, Black
CRL-U.S. Aluminum 250 Geared Hinge Narrow-Stile, Panic, Black
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# HZ21822
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Black Bronze Anodized Class 1
Overview
- Accommodates 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit compatible (glass not included)
- 7-1/2" (191 mm) bottom rail for reinforced threshold support
- Custom fabricated to accept a wide range of optional hardware applications — ideal for commercial storefront and institutional entrance projects
- Includes standard panic pull, hanging hardware, concealed vertical rod panic hardware, and one cylinder for immediate secure installation

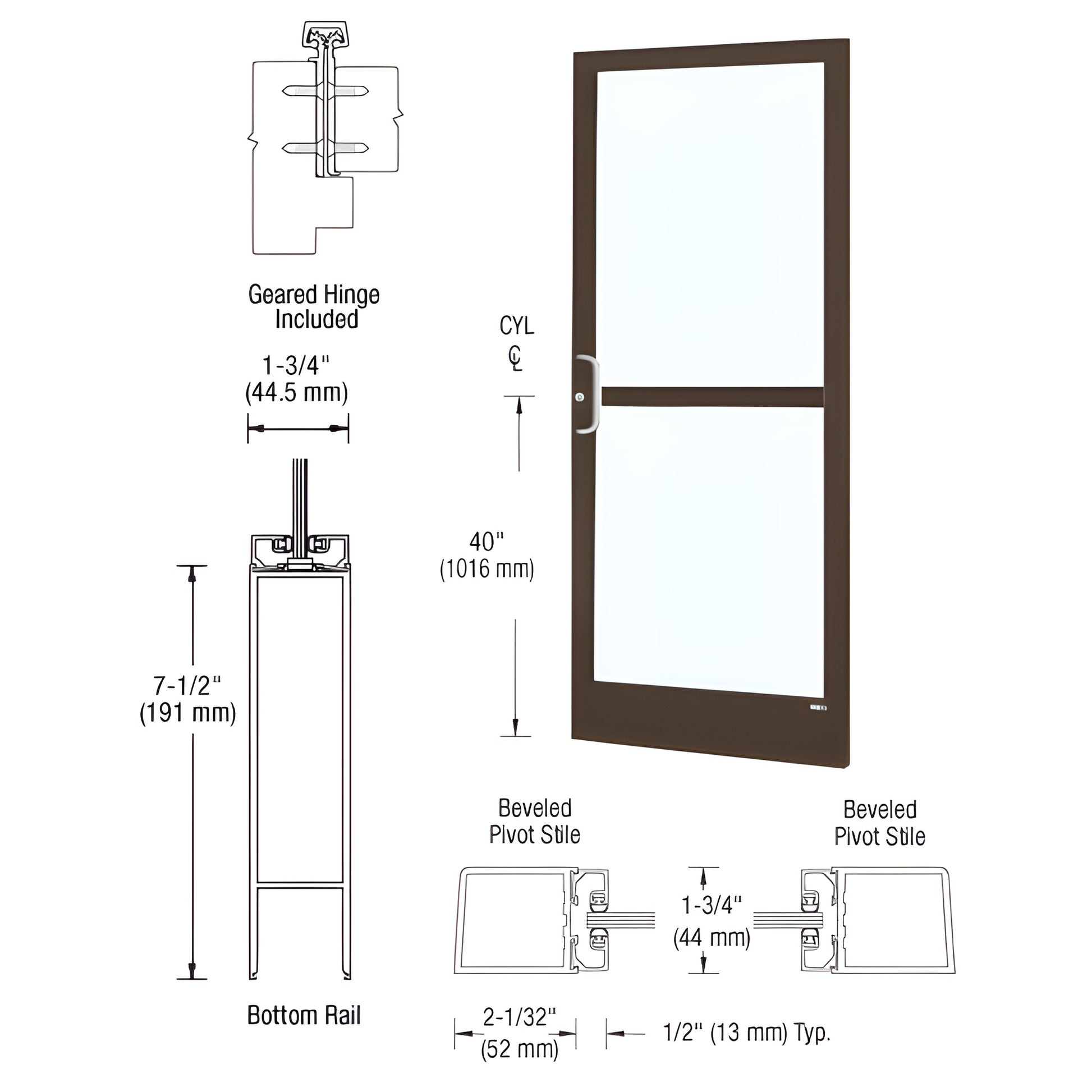

This Custom Narrow Stile Entrance Door (SKU: HZ21822) features 2" (51 mm) stiles, a 2-1/8" (54 mm) top rail, and a 7-1/2" (191 mm) bottom rail. Designed with stiles for Gear Hinge hardware and glass stops for 1/4" (6 mm) tempered glass (by others), it is ready for custom fabrication and a variety of optional hardware configurations — a dependable choice for commercial and retail storefront entrances.
Specifications
BIM Objects - rvt
