CRL-U.S. Aluminum 250 Geared Hinge Pair - Narrow Stile Panic Hardware
CRL-U.S. Aluminum 250 Geared Hinge Pair - Narrow Stile Panic Hardware
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# HZ22822
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Black Bronze Anodized Class 1
Overview
- 7-1/2" (191 mm) bottom rail available to comply with A.D.A. and Title 21 applications
- Custom fabricated to accept optional hardware applications
- Includes active and inactive leaf with all standard concealed vertical rod panic hardware
- Accommodates 1/4" (6 mm) tempered glass with an option for 1" (25 mm) tempered insulating unit (glass not included)

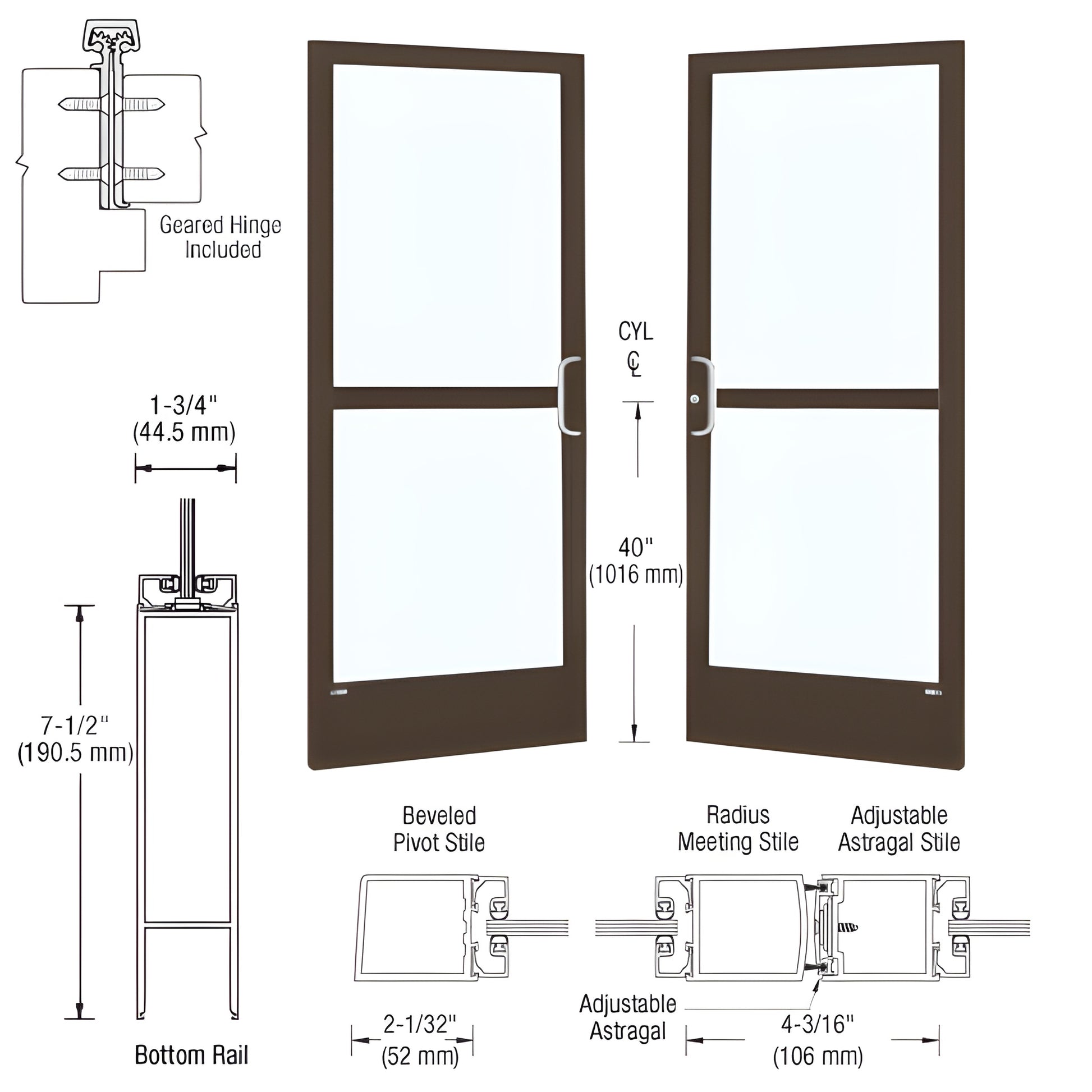

This Custom Narrow Stile Entrance Door (SKU: HZ22822) features 2" (51 mm) stiles, a 2-1/8" (54 mm) top rail, and a 7-1/2" (191 mm) bottom rail. Standard features include stiles prepped for Gear Hinge hardware and glass stops sized for 1/4" (6 mm) tempered glass (by others). Built for commercial applications, this narrow-stile entrance door is custom-fabricated to accommodate a wide range of optional hardware, including concealed vertical rod panic devices—ideal for high-traffic, secure entryways.
Note: Protruding hardware (handles, pivots, etc.) is boxed separately to prevent transit damage and must be installed by the customer.
Configure your custom narrow stile entrance door (HZ22822) today — contact CRL for pricing and lead times.
Specifications
BIM Objects - rvt
