CRL-U.S. Aluminum 250 Narrow Geared Hinge for Surface Mount Closer
CRL-U.S. Aluminum 250 Narrow Geared Hinge for Surface Mount Closer
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# DE21811
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Clear Anodized Class 1
Overview
- Includes Standard Push/Pull, Hanging Hardware, MS Hookbolt Lock, and Two Keyed-Alike Cylinders — secure keyed-alike functionality for simplified maintenance (SKU: DE21811)
- 9-1/2" (241 mm) Bottom Rail is Installed to Comply With A.D.A. — ADA-compliant bottom rail for accessible commercial entrances
- Custom Fabricated to Accept Optional Hardware Applications — built for easy integration with specialty commercial hardware

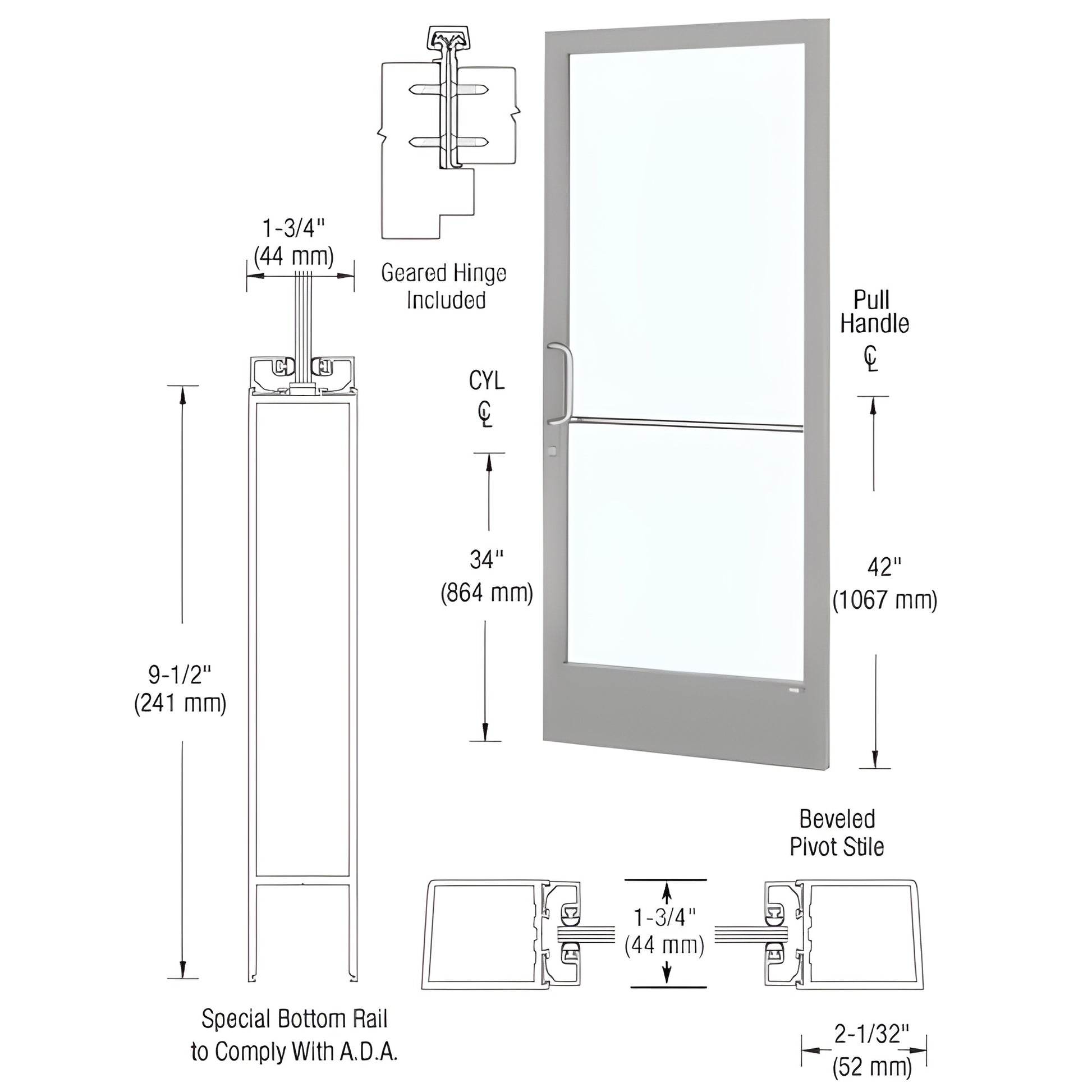

This Custom Narrow Stile Entrance Door (SKU: DE21811) features 2" (51 mm) narrow stiles, a 2-1/8" (54 mm) top rail, and an ADA 9-1/2" (241 mm) bottom rail. Standard design includes stiles prepped for Gear Hinge hardware and glass stops sized for 1/4" (6 mm) tempered glass (glass supplied by others). Fabricated for a wide range of optional hardware applications, this door is ideal for commercial storefronts, retail entrances, and ADA-accessible projects.
Customer-installed protruding hardware (handles, pivots, etc.) is boxed separately to prevent transit damage. Note: door widths under 36" (914 mm) may not meet ADA inspection requirements.
Specifications
BIM Objects - rvt
