CRL-U.S. Aluminum 250 Narrow Stile Center Pivot Entry Door - KYNAR
Item# DC21771
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Finish/Color
Custom Kynar
- Custom made to your size specifications — SKU: DC21771
- Includes standard push/pull, hanging hardware, MS hookbolt lock, and two keyed-alike cylinders
- Accepts 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit can be accommodated (glass not included)
- 9-1/2" (241 mm) bottom rail option available to meet A.D.A. and Title 24 applications
- Custom fabricated to accept optional hardware applications and center pivot hardware

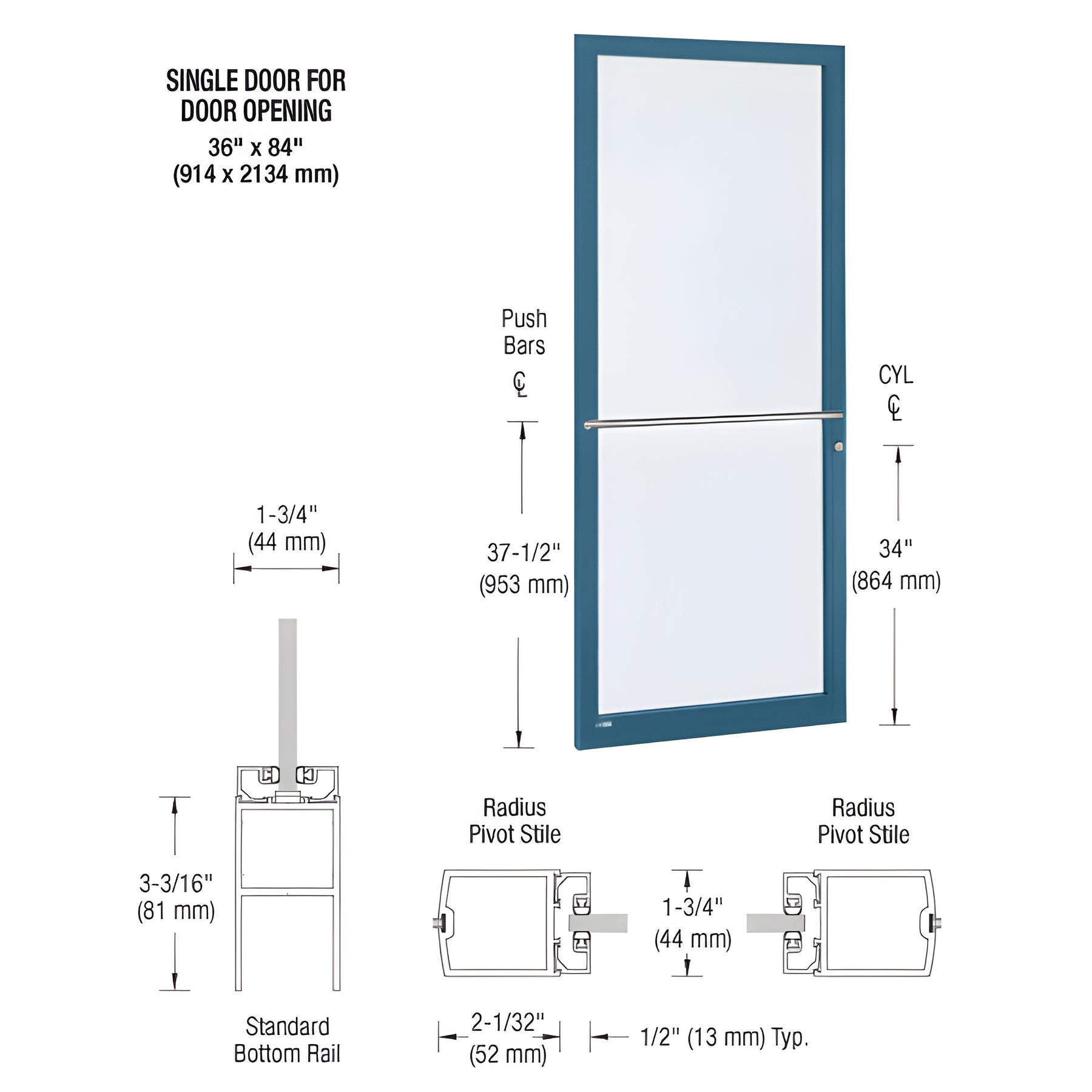

This Custom Narrow Stile Entrance Door is engineered for commercial storefronts and entryways. Construction details: 2" (51 mm) stiles, 2-1/8" (54 mm) top rail, and 3-3/16" (81 mm) bottom rail. Standard glass stops fit 1/4" (6 mm) tempered glass (by others). Door is prepared for center pivot hardware and is configured for custom hardware installations.
Note: Protruding hardware (handles, pivots, etc.) is boxed separately to prevent transit damage and must be installed on site. Door widths under 36" (914 mm) may not meet A.D.A. inspection requirements.
Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs before ordering, contact CRL Customer Service. Product images are representative; actual color may vary with monitor settings.
Order the DC21771 custom narrow stile entrance door for reliable, ADA-ready commercial performance — contact us to get a custom quote.
