CRL-U.S. Aluminum 250 Narrow-Stile Geared Hinge, Clear Anodized
CRL-U.S. Aluminum 250 Narrow-Stile Geared Hinge, Clear Anodized
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# DE21911
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Clear Anodized Class 1
Overview
- Includes Standard Push/Pull, Hanging Hardware, MS Hookbolt Lock, and Two Keyed-Alike Cylinders
- 9-1/2" (241 mm) Bottom Rail installed for A.D.A. compliance
- Custom fabricated to accept a wide range of optional hardware applications

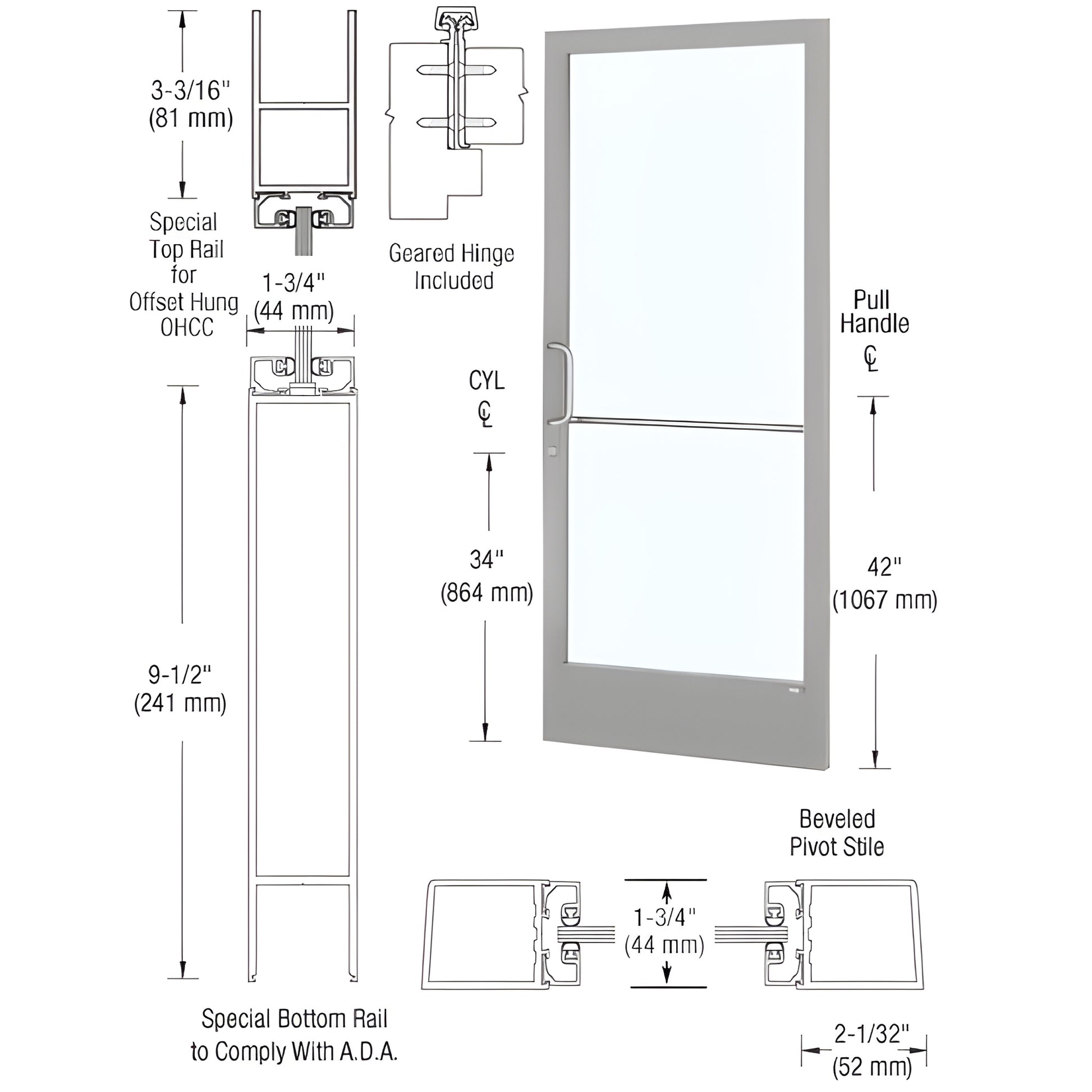

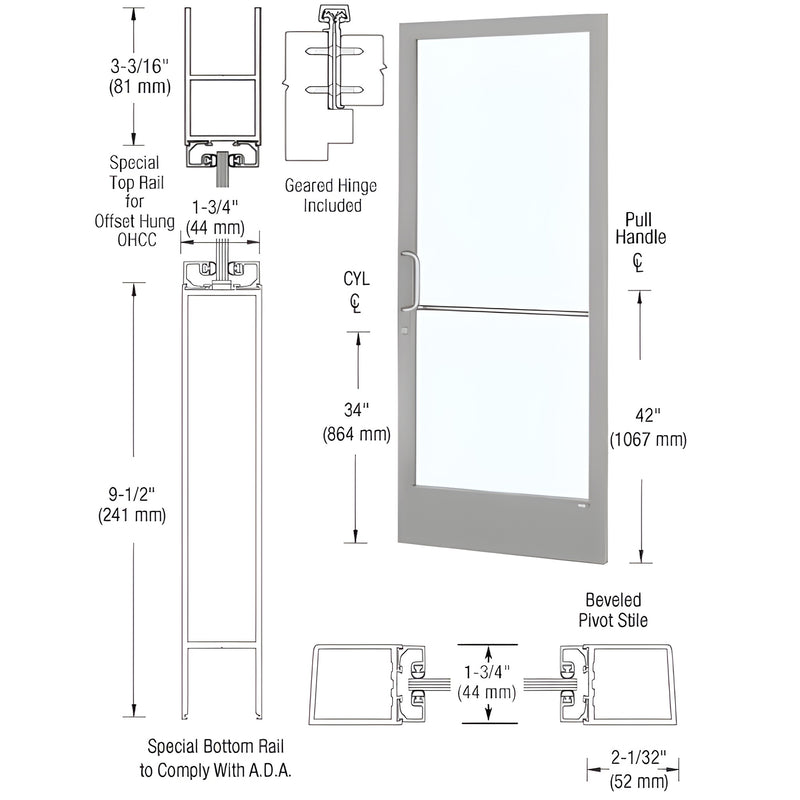

Custom Narrow Stile Entrance Door — SKU: DE21911. Built with 2" (51 mm) stiles, a 3-3/16" (81 mm) top rail, and a 9-1/2" (241 mm) bottom rail for ADA-conscious installations. Standard prep includes stiles for Gear Hinge hardware and glass stops sized for 1/4" (6 mm) tempered glass (by others). The door is ready for custom fabrication to accommodate additional hardware options and specialty configurations.
Shipping note: protruding hardware (handles, pivots, etc.) is boxed separately to prevent transit damage and must be installed by the customer. Doors less than 36" (914 mm) wide may not pass A.D.A. inspection.
Order DE21911 today for an ADA-ready, customizable narrow stile entrance door.
