CRL-U.S. Aluminum 250 Narrow Stile Geared-Hinge Doors, Pair, KYNAR
CRL-U.S. Aluminum 250 Narrow Stile Geared-Hinge Doors, Pair, KYNAR
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# HE22871
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Custom Kynar
Overview
- Includes active and inactive leaf with all standard hardware (handles/pivots boxed separately)
- Accepts 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit available (glass not included)
- 9-1/2" (241 mm) bottom rail option for ADA and Title 21 compliance
- Custom fabricated to accept a wide range of optional hardware applications, including Gear Hinge prep

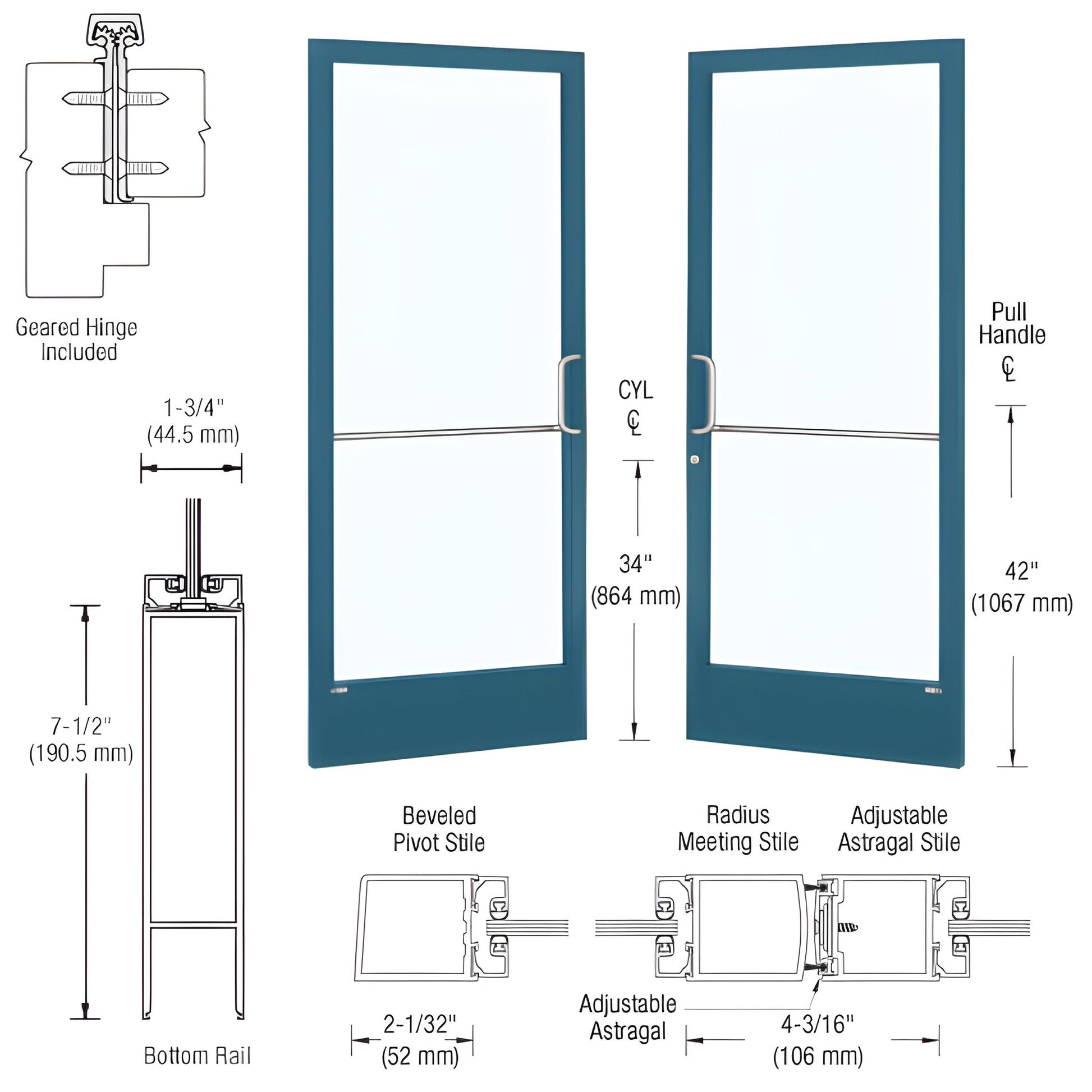

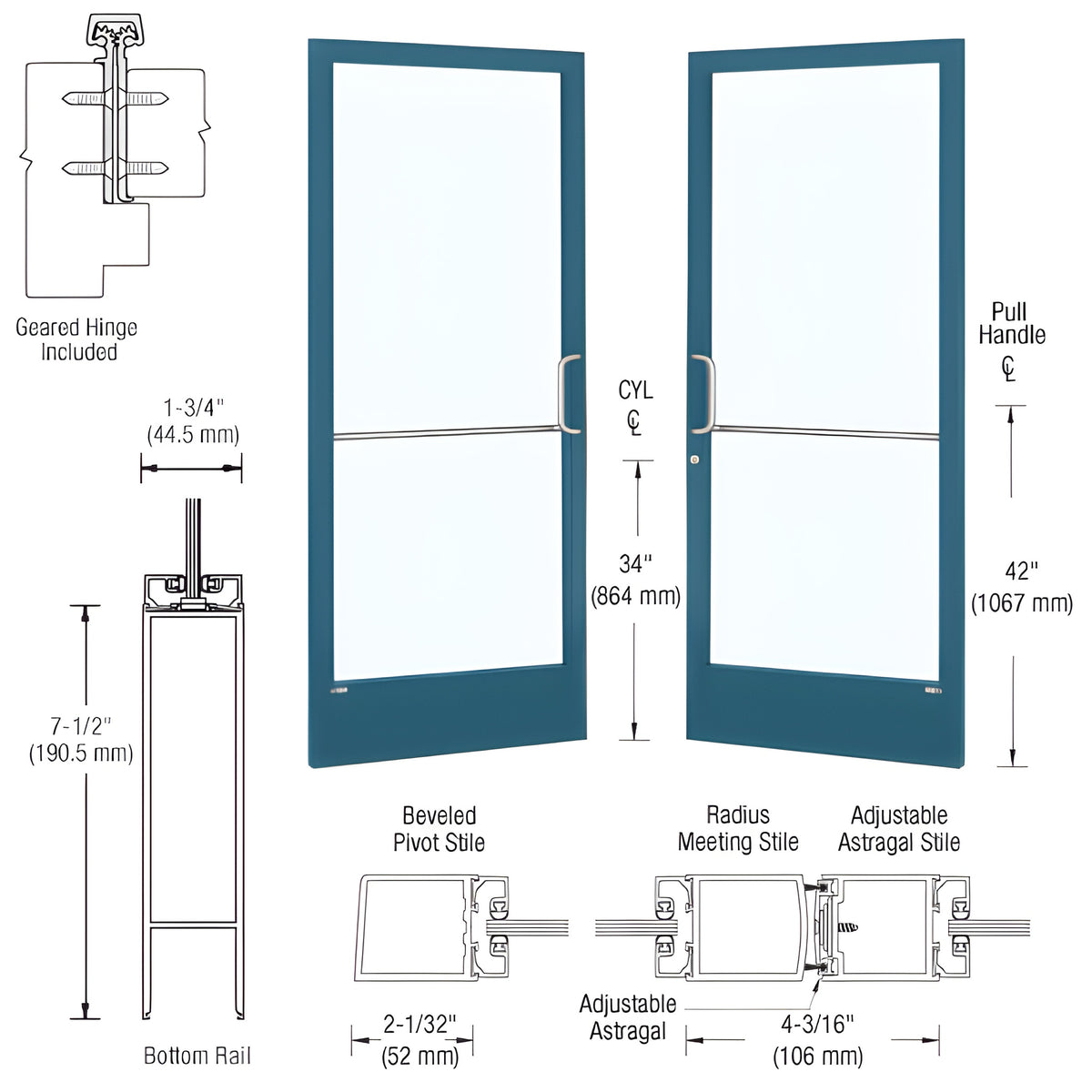

This Custom Narrow Stile Entrance Door (SKU: HE22871) features 2" (51 mm) stiles, a 2-1/8" (54 mm) top rail, and a 7-1/2" (191 mm) bottom rail. Standard glass stops are provided for 1/4" (6 mm) tempered glass. Built for easy customization and compatible with Gear Hinge hardware, this narrow stile door is ideal for storefront, commercial, and ADA-compliant entrance applications. Glass and insulating units are supplied by others.
Customer-installed protruding hardware (handles, pivots, etc.) is boxed separately to prevent transit damage.
Ready to specify? Contact CRL Customer Service for lead times, exact weights, or custom hardware options.
Specifications
BIM Objects - rvt
