CRL-U.S. Aluminum 250 Narrow Stile Geared-Hinge Entry Door White KYNAR®
Item# DE21852
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Finish/Color
White Kynar
- Custom fabricated to accept optional hardware applications
- Includes standard push/pull, hanging hardware, MS hookbolt lock, and two keyed-alike cylinders
- 9-1/2" (241 mm) bottom rail installed to comply with A.D.A.

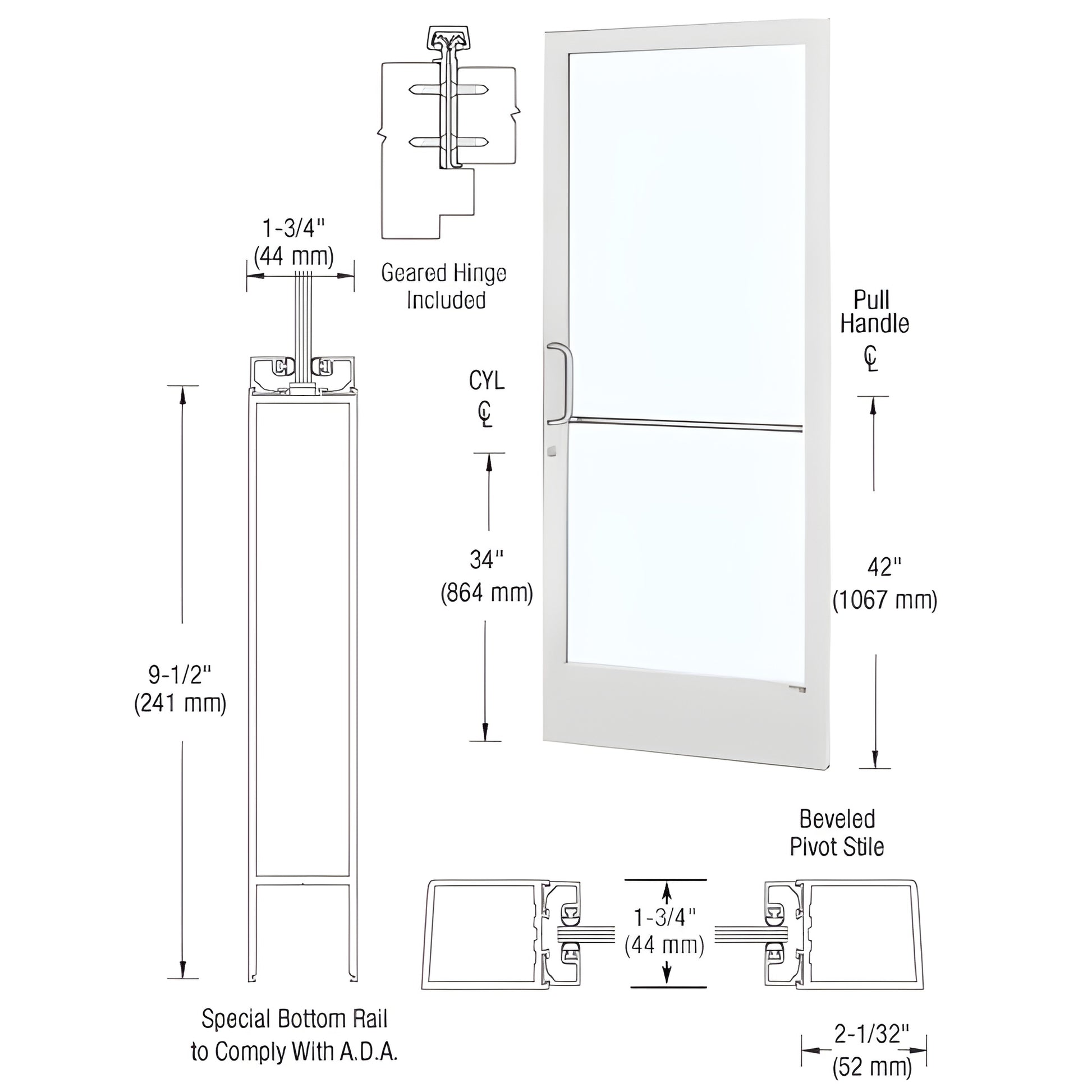

Custom Narrow Stile Entrance Door (SKU: DE21852) — Built for commercial entrances, this narrow-stile door features 2" (51 mm) stiles, a 2-1/8" (54 mm) top rail, and a 9-1/2" (241 mm) ADA-compliant bottom rail. It is prepped with stiles for Gear Hinge hardware and glass stops sized for 1/4" (6 mm) tempered glass (glass supplied by others). The door is ready for custom fabrication to accommodate a wide range of optional hardware applications.
Note: Protruding hardware (handles, pivots, etc.) is boxed separately to prevent shipping damage and must be installed by the customer. Door widths under 36" (914 mm) may not pass A.D.A. inspection.
Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs before ordering, contact CRL Customer Service. Product images are representative; colors may vary by monitor and settings.
Order this ADA-ready, custom narrow stile entrance door (DE21852) for commercial projects — contact sales to confirm optional hardware compatibility and lead time.
BIM Objects - rvt
