CRL-U.S. Aluminum 250 Narrow Stile Geared Hinge for Concealed Closer

• 9-1/2" (241 mm) bottom rail option to comply with A.D.A. and Title 24 applications
• Custom fabricated to accept a wide range of optional hardware applications
• Includes standard push/pull, hanging hardware, MS hookbolt lock, and two keyed-alike cylinders
• Accepts 1/4" (6 mm) tempered glass (by others) with an optional 1" (25 mm) tempered insulating glass unit — glass not included

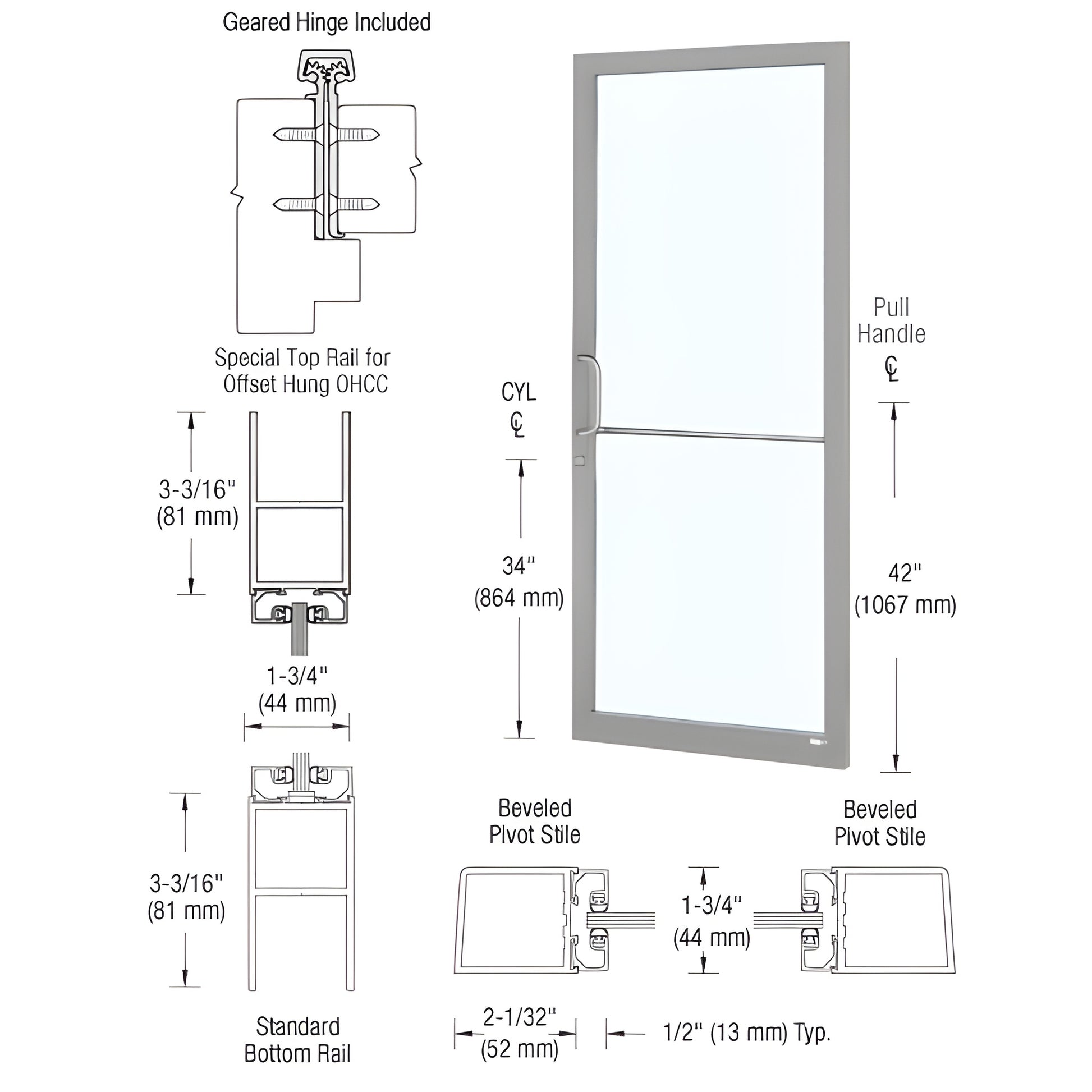

This CRL Custom Narrow Stile Entrance Door (SKU: DC21911) is engineered for commercial storefronts and ADA-compliant entrance projects. Built with 2" (51 mm) stiles, a 3-3/16" (81 mm) top rail, and a 3-3/16" (81 mm) bottom rail, it features stiles prepared for Gear Hinge hardware and glass stops sized for 1/4" (6 mm) tempered glass. The narrow stile design suits modern storefront aesthetics while supporting custom hardware integrations and accessibility requirements.

Customer-installed protruding hardware (handles, pivots, etc.) is boxed separately to prevent transit damage. Note: door widths under 36" (914 mm) may not pass A.D.A. inspection—confirm project requirements before ordering.
