CRL-U.S. Aluminum 250 Narrow Stile Geared Hinge, Panic, Anodized
CRL-U.S. Aluminum 250 Narrow Stile Geared Hinge, Panic, Anodized
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# DZ21911
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Clear Anodized Class 1
Overview
- Custom made to your size specifications (SKU: DZ21911)
- Includes standard panic pull and hanging hardware
- Panic hardware and one cylinder ordered and added separately
- 9-1/2" (241 mm) bottom rail available to comply with A.D.A. and Title 21 applications
- Custom fabricated to accept optional hardware applications
- Accommodates 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit (glass not included)

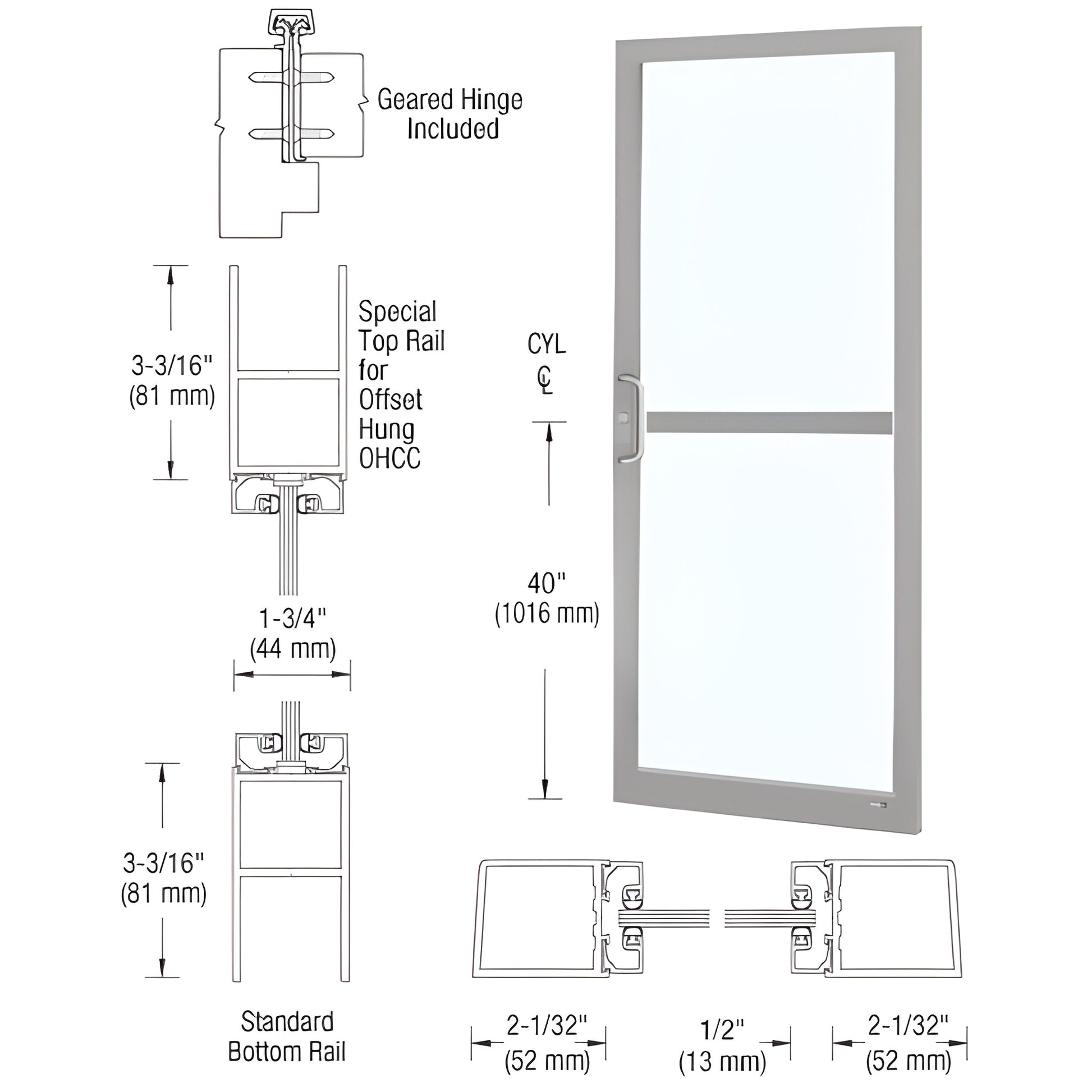

This Custom Narrow Stile Entrance Door features 2" (51 mm) stiles, a 2-1/8" (54 mm) top rail, and a 3-3/16" (81 mm) bottom rail. It ships ready for installation with stiles configured for Gear Hinge hardware and glass stops sized for 1/4" (6 mm) tempered glass.
Designed for commercial entrances that require a narrow stile profile and flexible hardware options. Note: customer must install included protruding hardware (handles, pivots, etc.) boxed separately to prevent transit damage. Door widths under 36" (914 mm) may not meet A.D.A. inspection. Panic hardware and one cylinder are ordered and added separately.
Order this custom narrow stile entrance door (SKU: DZ21911) or contact us for ADA-compliant configurations and hardware options.
Specifications
BIM Objects - rvt
