CRL-U.S. Aluminum 250 Narrow Stile Geared Hinge, Panic-Ready, Black

• SKU: DZ21822 — Custom Narrow Stile Entrance Door built to your size specifications
• Accepts 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit (glass not included)

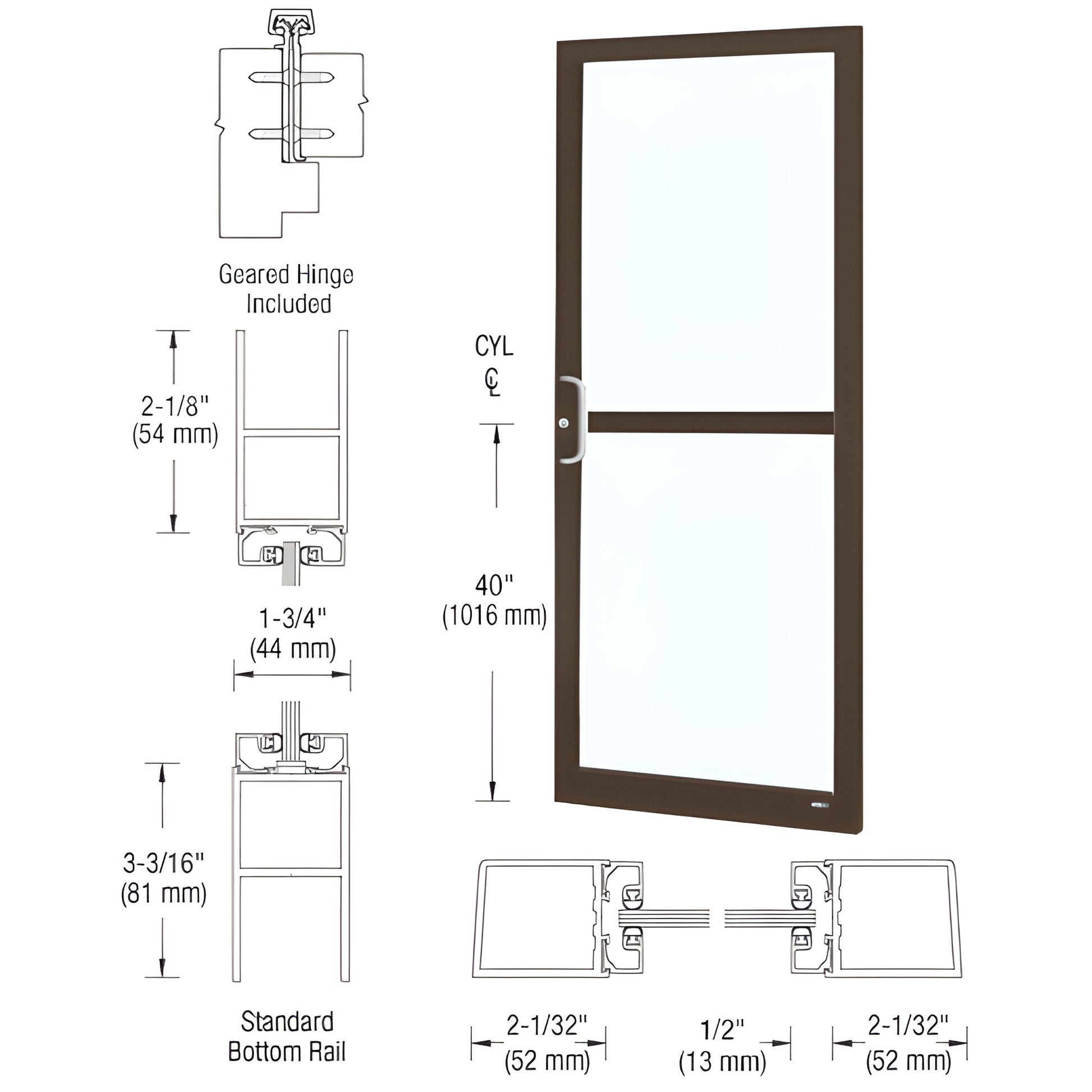

• 2" (51 mm) stiles, 2-1/8" (54 mm) top rail, and 3-3/16" (81 mm) bottom rail for narrow stile storefronts
• Optional 9-1/2" (241 mm) bottom rail available to comply with A.D.A. and Title 24/Title 21 applications
• Custom fabricated to accept a wide range of optional hardware applications (select panic hardware and cylinder ordered separately)
• Includes standard panic pull and hanging hardware; protruding hardware (handles, pivots, etc.) is boxed separately for transit protection and must be installed by customer
• Designed with stiles for Gear Hinge hardware and glass stops for 1/4" (6 mm) tempered glass (glass provided by others)

This Custom Narrow Stile Entrance Door is ready for storefront, commercial, and ADA-aware entrance applications and is built for custom hardware configurations. Door widths under 36" (914 mm) may not meet ADA inspection requirements. Panic hardware and one cylinder are ordered and added separately.


Order model DZ21822 today—contact CRL Customer Service to confirm custom sizes, hardware options, and shipping details.
