CRL-U.S. Aluminum 250 Narrow-Stile Geared Hinged Doors, White Kynar
CRL-U.S. Aluminum 250 Narrow-Stile Geared Hinged Doors, White Kynar
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# DE22952
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
White Kynar
Overview
- Includes active and inactive leaf with all standard hardware
- Accommodates 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit—glass not included
- 9-1/2" (241 mm) ADA-compliant bottom rail
- Custom fabricated to accept a wide range of optional hardware applications

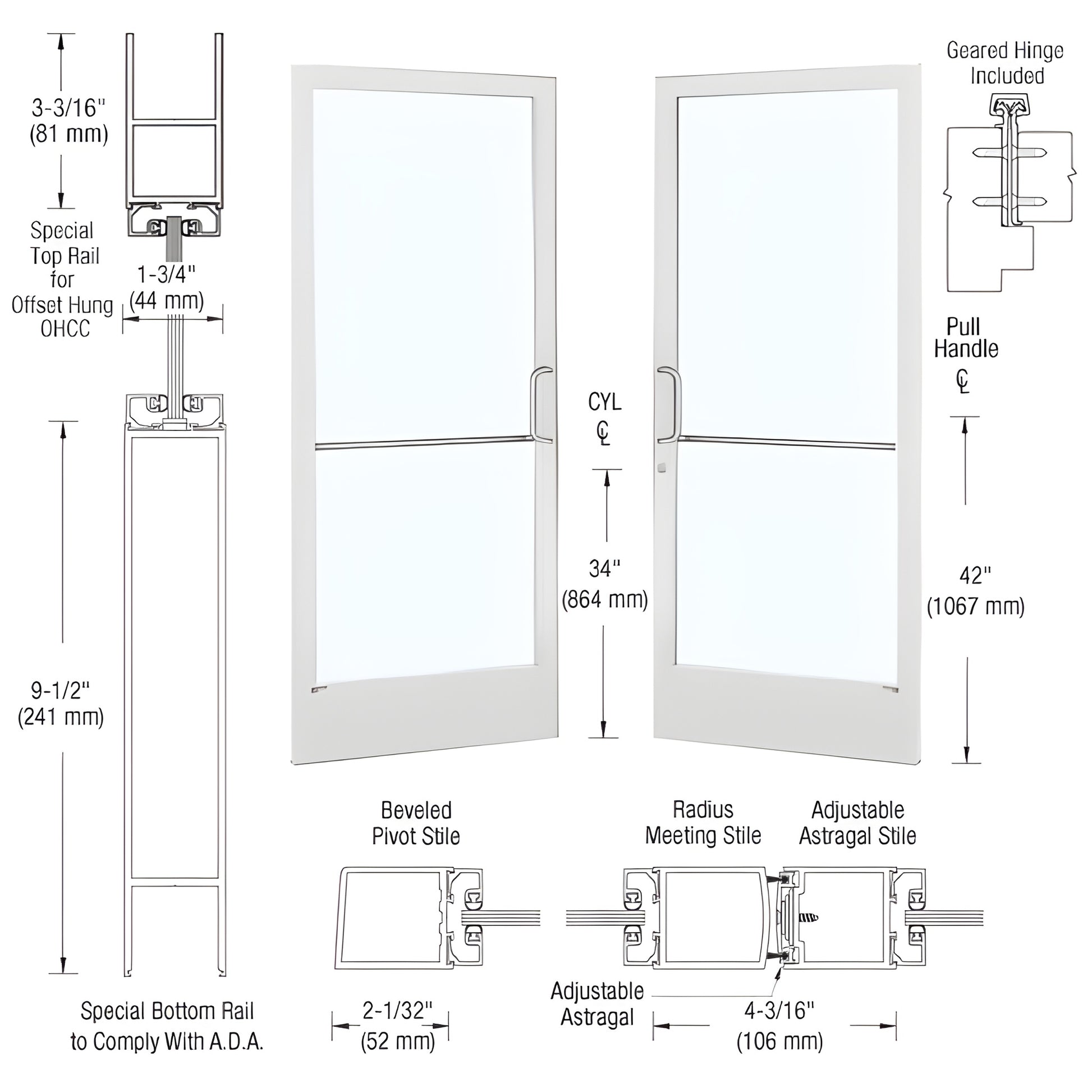

Custom Narrow Stile Entrance Door (SKU: DE22952) features 2" (51 mm) stiles, a 3-3/16" (81 mm) top rail, and a 9-1/2" (241 mm) bottom rail. Standard preparation includes stiles for Gear Hinge hardware and glass stops for 1/4" (6 mm) tempered glass. Designed for commercial storefront and entry applications, this narrow stile door is ready for custom fabrication to support specialty locks, pivots, and other door hardware—ideal for projects requiring ADA-compliant thresholds and tempered glass storefront doors.
Customer must install protruding hardware (handles, pivots, etc.) shipped separately in a protective box to prevent transit damage.
Order SKU DE22952 or contact CRL Customer Service for pricing and customization options.
Specifications
BIM Objects - rvt
