CRL-U.S. Aluminum 250 Narrow Stile Pair Doors - Butt Hinge, KYNAR
CRL-U.S. Aluminum 250 Narrow Stile Pair Doors - Butt Hinge, KYNAR
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# HE22571
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Custom Kynar
Overview
- 7-1/2" Bottom Rail available to comply with A.D.A. and Title 24 applications
- Custom fabricated to accept optional hardware applications
- Accommodates 1/4" (6 mm) tempered glass or optional 1" (25 mm) tempered insulating unit (glass not included)
- Includes active and inactive leaf with all standard hardware

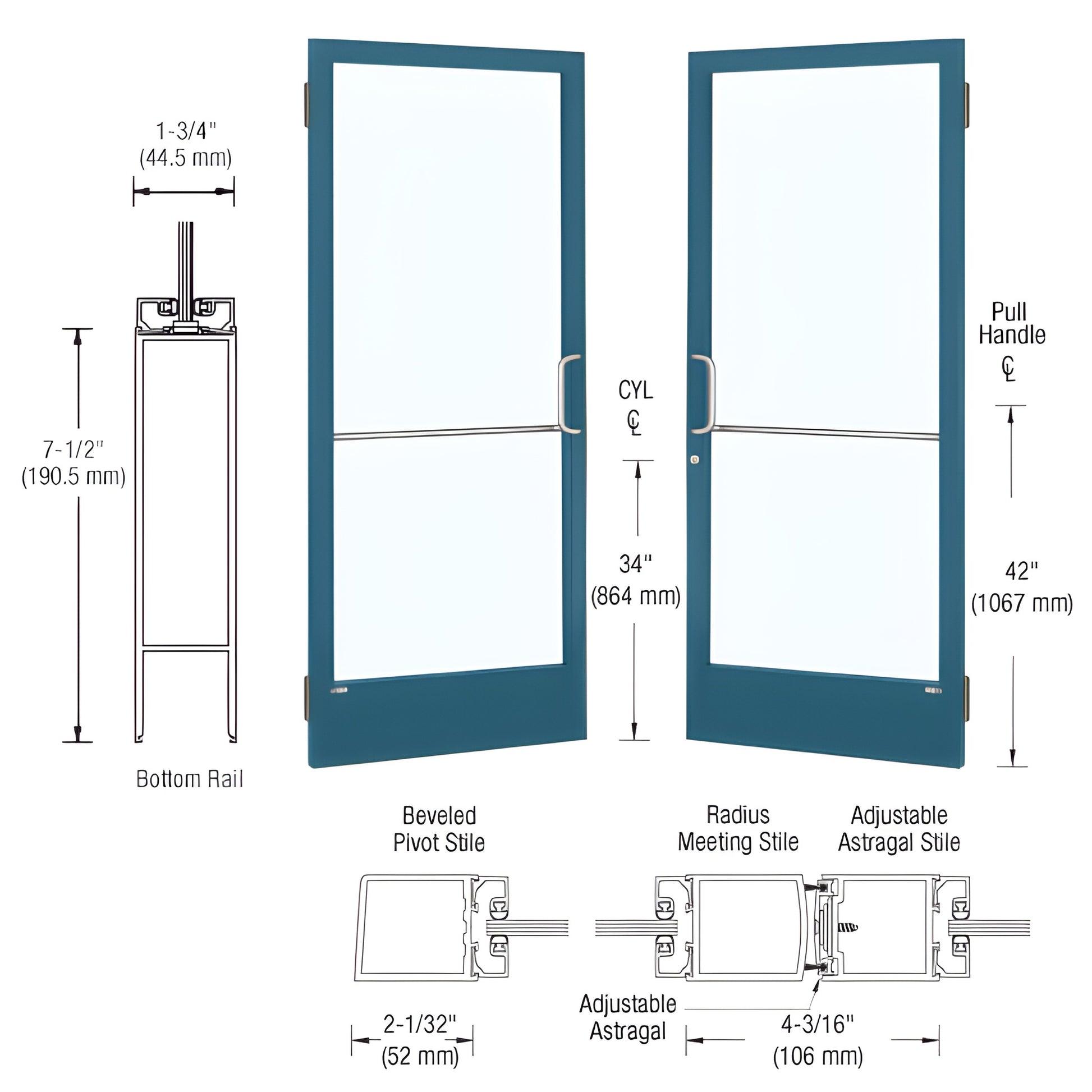

Custom Narrow Stile Entrance Door (SKU: HE22571) — Built with 2" (51 mm) stiles, a 2-1/8" (54 mm) top rail, and a 7-1/2" (191 mm) bottom rail. The door is prepped for butt hinge hardware and features glass stops for 1/4" (6 mm) tempered glass (by others). Engineered for custom narrow stile commercial entrance applications and ready for a wide range of optional hardware configurations.
Note: Protruding hardware (handles, pivots, etc.) is boxed separately to prevent transit damage and must be installed by the customer.
Order this ADA-capable custom narrow stile entrance door (HE22571) today to get a door prepped for optional hardware and tempered glass options.
Specifications
BIM Objects - rvt
