CRL-U.S. Aluminum 250 Narrow Stile Pair w/ Panic Bar& Concealed Closer

• Custom made to your size specifications (SKU: DZ22911)
• Includes standard panic pull and hanging hardware
• Panic hardware and one cylinder must be ordered and installed separately
• 9-1/2" (241 mm) bottom rail option available to comply with A.D.A. and Title 24 applications
• Custom fabricated to accept a wide range of optional hardware applications
• Accommodates 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit can be accepted (glass not included)

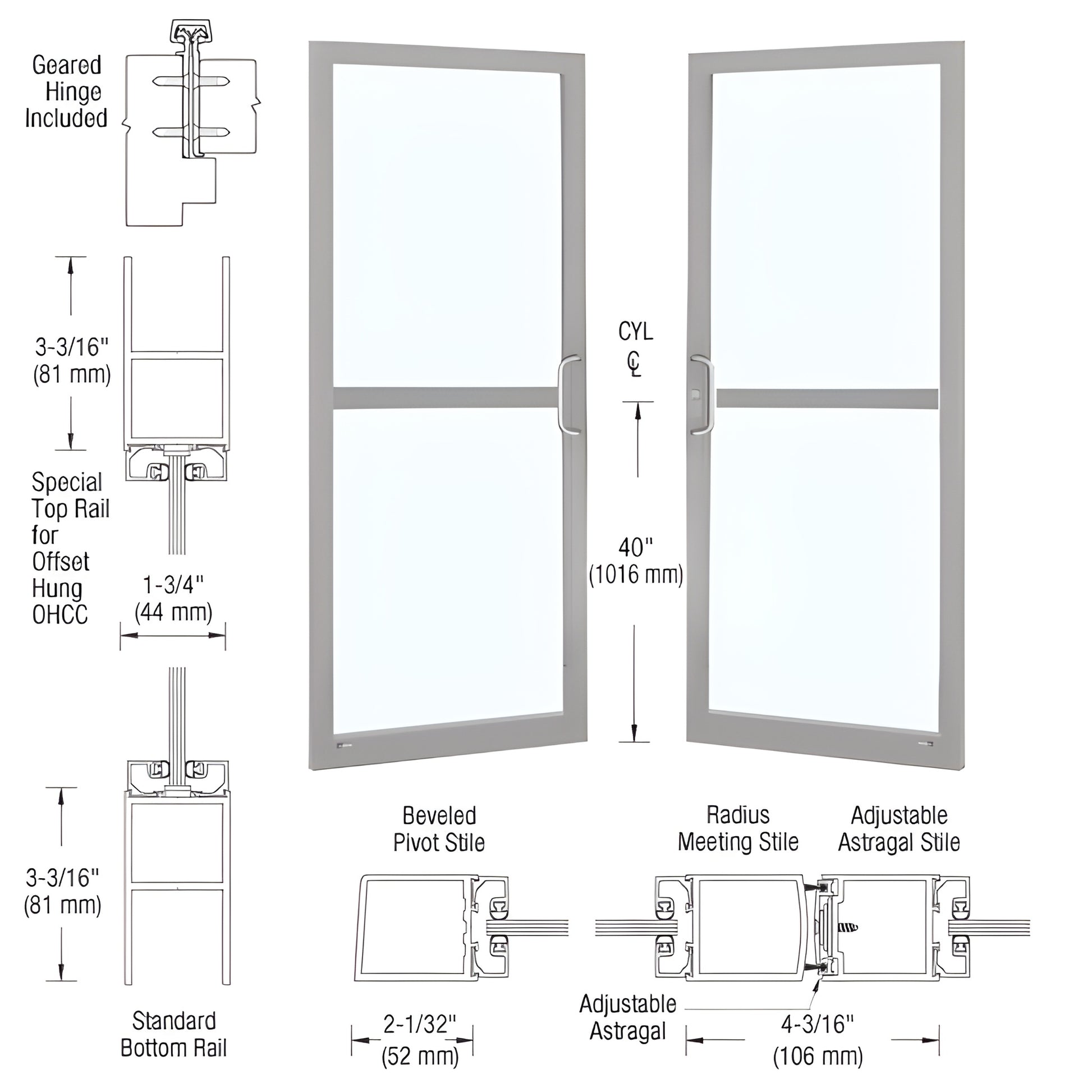

This Custom Narrow Stile Entrance Door features 2" (51 mm) stiles, a 2-1/8" (54 mm) top rail, and a 3-3/16" (81 mm) bottom rail. Standard stiles are configured for Gear Hinge hardware with glass stops for 1/4" (6 mm) tempered glass (glass supplied by others). The door is ready for custom fabrication to accommodate a wide range of optional commercial hardware and panic devices.

Customer-installed protruding hardware (handles, pivots, etc.) is boxed separately to prevent damage during transit. Note: door widths under 36" (914 mm) may not meet A.D.A. inspection requirements. Panic hardware and one cylinder are ordered and added separately.

Order the custom narrow stile entrance door (DZ22911) for ADA-ready commercial entrances—contact us to request a quote or technical assistance.
