CRL-U.S. Aluminum 250 Offset Pivot Door - Panic, Concealed Closer
CRL-U.S. Aluminum 250 Offset Pivot Door - Panic, Concealed Closer
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CZ21152
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
White Kynar
Overview
- Includes Standard Panic Pull, Hanging Hardware, Concealed Vertical Rod Panic Hardware, and One Cylinder
- Accommodates 1/4" (6 mm) tempered glass or optional 1" (25 mm) tempered insulating unit (glass not included)
- 9-1/2" (241 mm) bottom rail installed to comply with A.D.A.
- Custom fabricated to accept optional hardware applications and offset pivot hardware

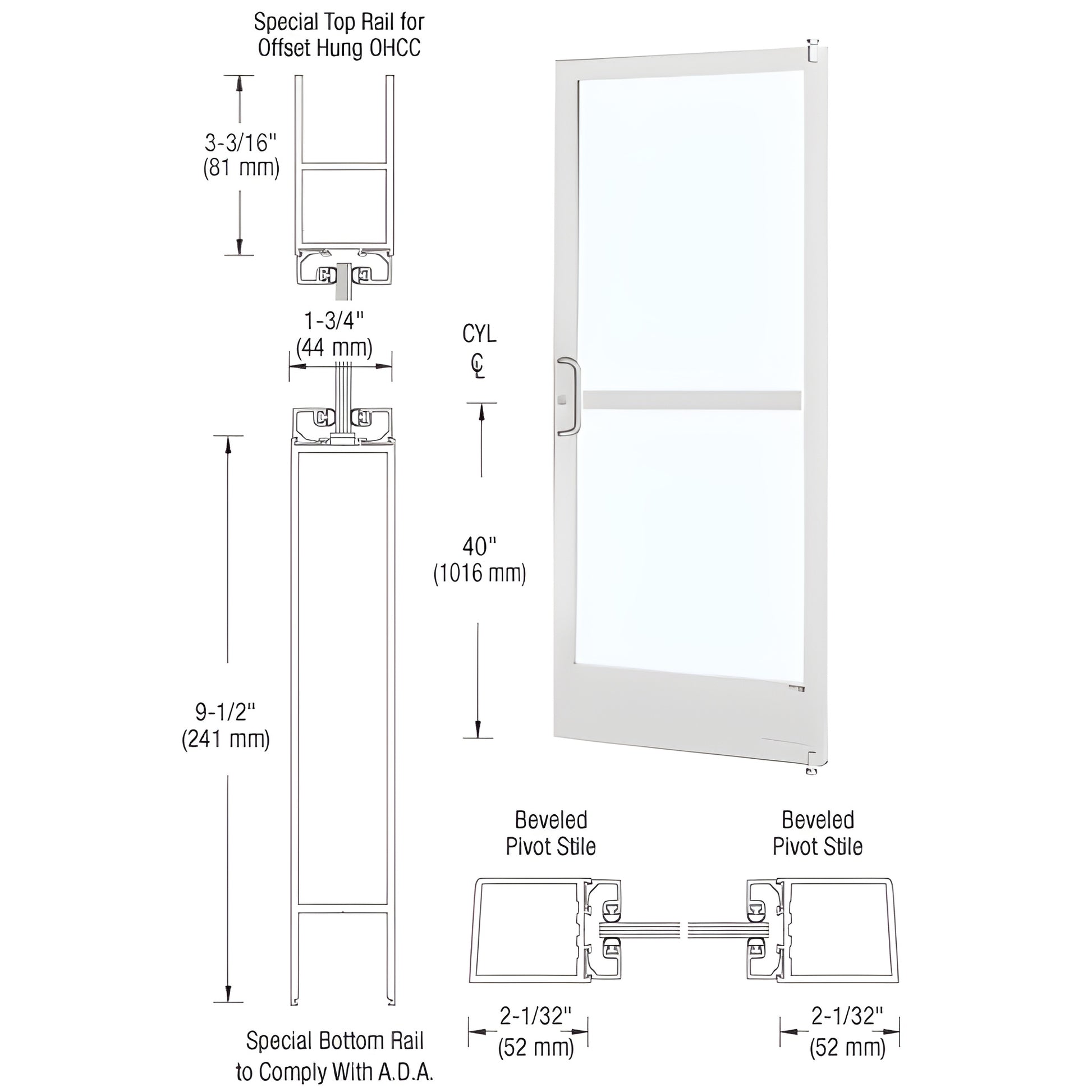

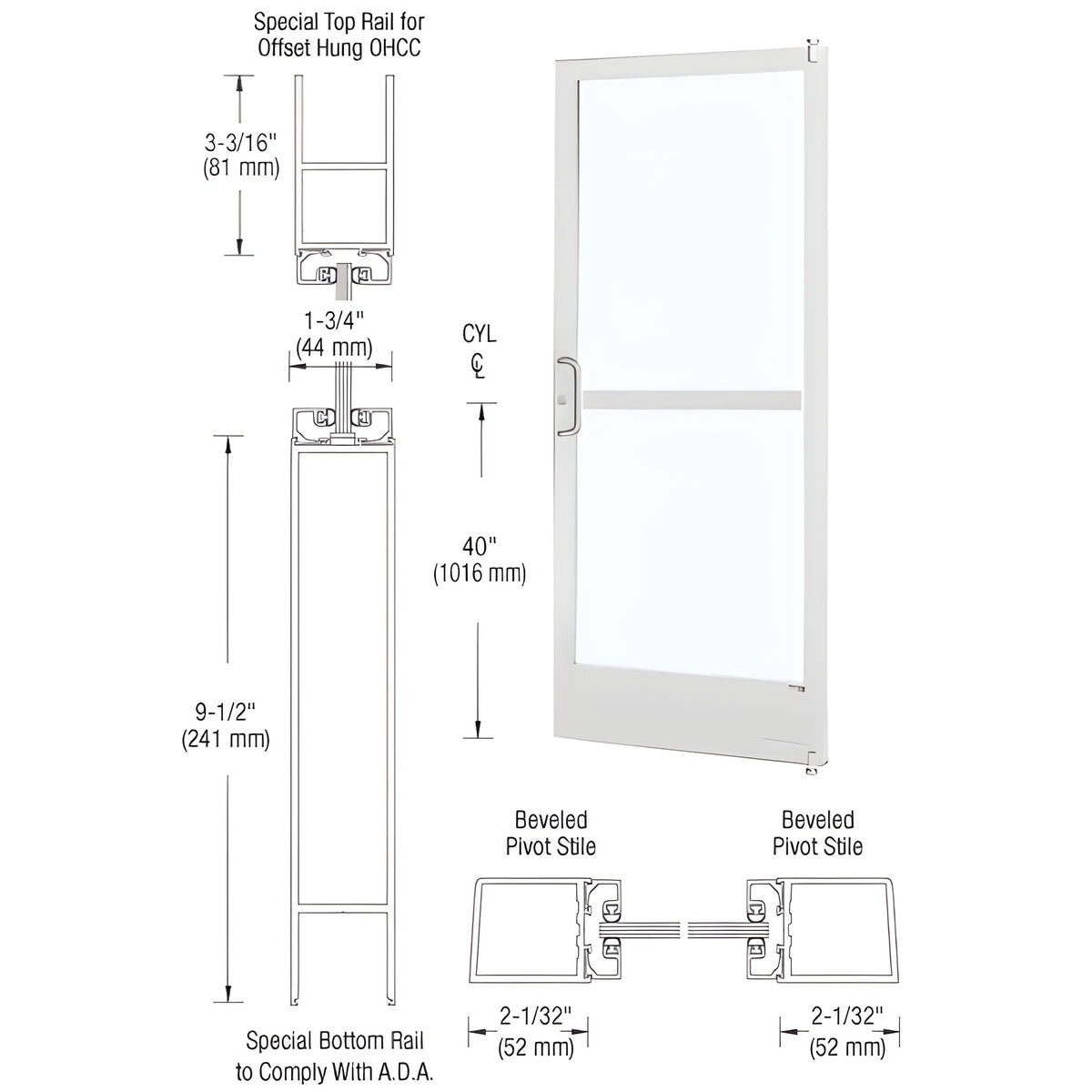

CRL Custom Narrow Stile Entrance Door (SKU: CZ21152) features 2" (51 mm) stiles, a 2-1/8" (54 mm) top rail, and a 9-1/2" (241 mm) bottom rail. Designed for commercial use, this narrow-stile tempered glass door ships ready for installation with glass stops for 1/4" (6 mm) tempered glass (by others) and is prepped for concealed vertical rod panic hardware and other exit devices.
Handles, pivots and other protruding hardware are boxed separately to prevent transit damage and must be installed by the customer. Note: door widths under 36" (914 mm) may not meet A.D.A. inspection requirements.
Order SKU CZ21152 today — contact us to confirm glass options and hardware compatibility.
Specifications
BIM Objects - rvt
