Most shipping weights are approximate and have not been verified. If the exact weight is required to determine shipping costs, please request this prior to placing your order by contacting CRL Customer Service. Product images are of the actual product or a close representation; colors may vary by monitor settings.
CRL
CRL-U.S. Aluminum 250 Series 72x84 Clear Anodized Gear-Hinge Doors
CRL-U.S. Aluminum 250 Series 72x84 Clear Anodized Gear-Hinge Doors
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CZ22911
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Clear Anodized Class 1
Overview
- 9-1/2" (241 mm) bottom rail — ADA-compliant threshold for accessible entry
- Custom fabricated to accept a wide range of optional hardware applications
- Includes active and inactive leaf with standard concealed vertical rod panic hardware
- Fits 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating glass unit available (glass not included)

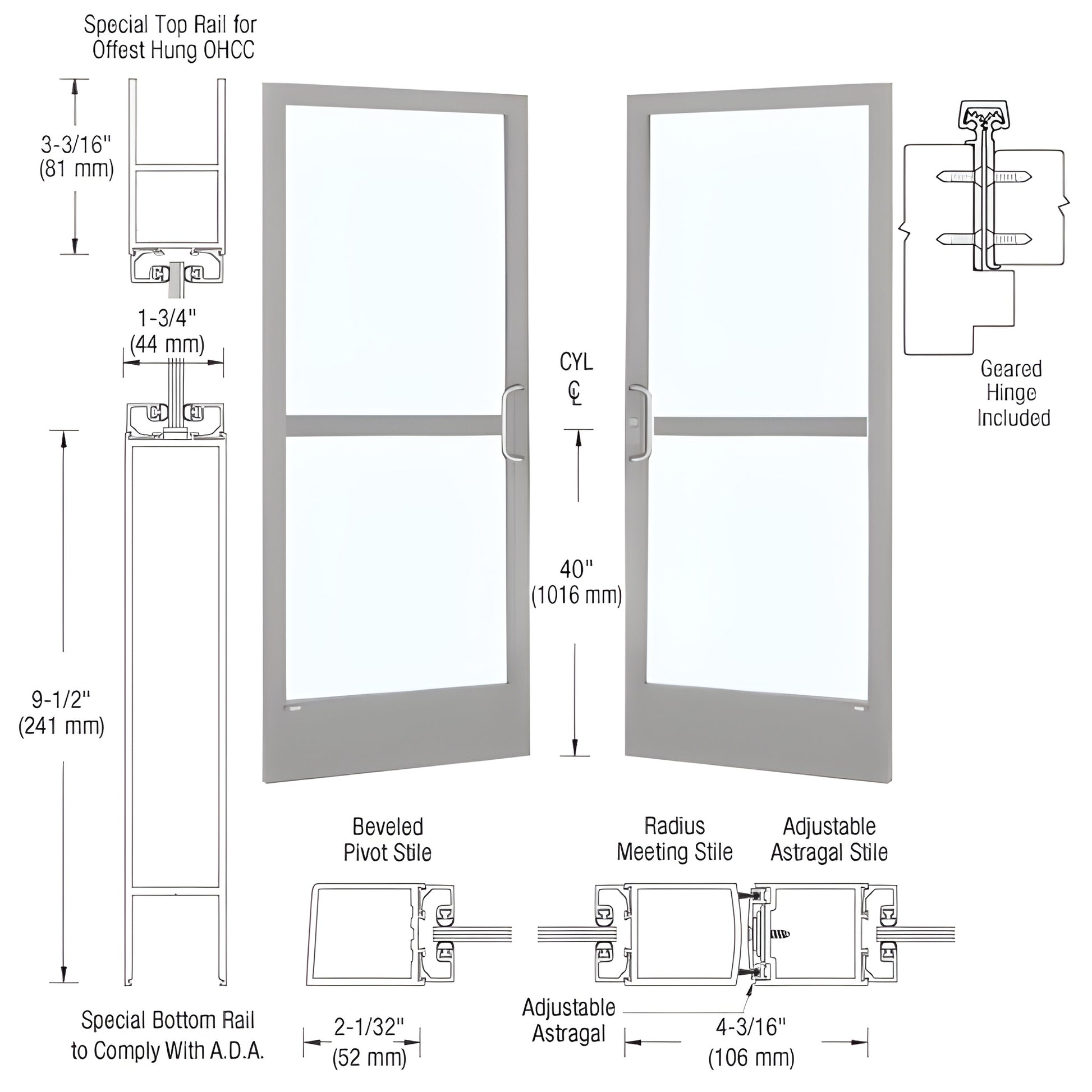

This CRL Custom Narrow Stile Entrance Door (SKU: CZ22911) features 2" (51 mm) stiles, a 3-3/16" (81 mm) top rail, and a 9-1/2" (241 mm) ADA-compliant bottom rail. Designed for commercial narrow stile storefronts and interior entrance applications, it ships ready for Gear Hinge hardware and glass stops for 1/4" (6 mm) tempered glass (by others). Custom fabrication options make it ideal for concealed vertical rod panic hardware and other specialized door hardware configurations.
Customer-installed protruding hardware (handles, pivots, etc.) is boxed separately to prevent transit damage.
Order SKU CZ22911 or contact CRL for customization and lead times.
Specifications
BIM Objects - rvt
