CRL-U.S. Aluminum 250 Series Narrow-Stile 3x7 Center-Hung Door Leaf

• Accommodates 1/4" (6 mm) clear tempered glass (glass not included)
• 36" x 84" (914 mm x 2.13 m) active leaf of a pair
• Prepped for overhead concealed door closer (closer not included)
• Choice of standard or ADA access bottom rails

Stocking Program for fast delivery — U.S. Aluminum offers stock-size narrow stile center pivot doors for exterior and interior use. Available in clear or bronze anodized finishes as single doors or paired doors (center pivot and offset pivot), packed for immediate shipment or pick-up from U.S. Aluminum and CRL Service Centers.

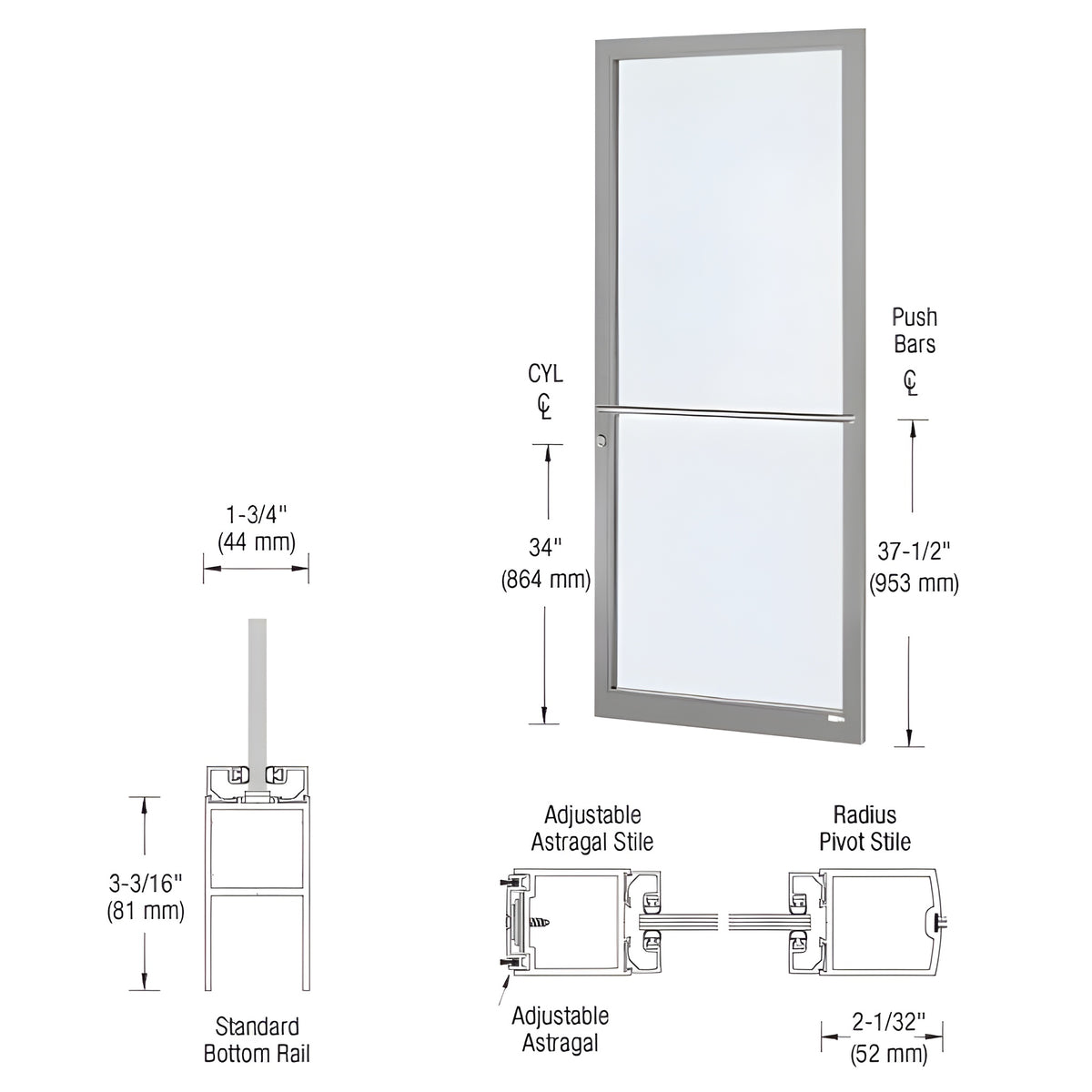

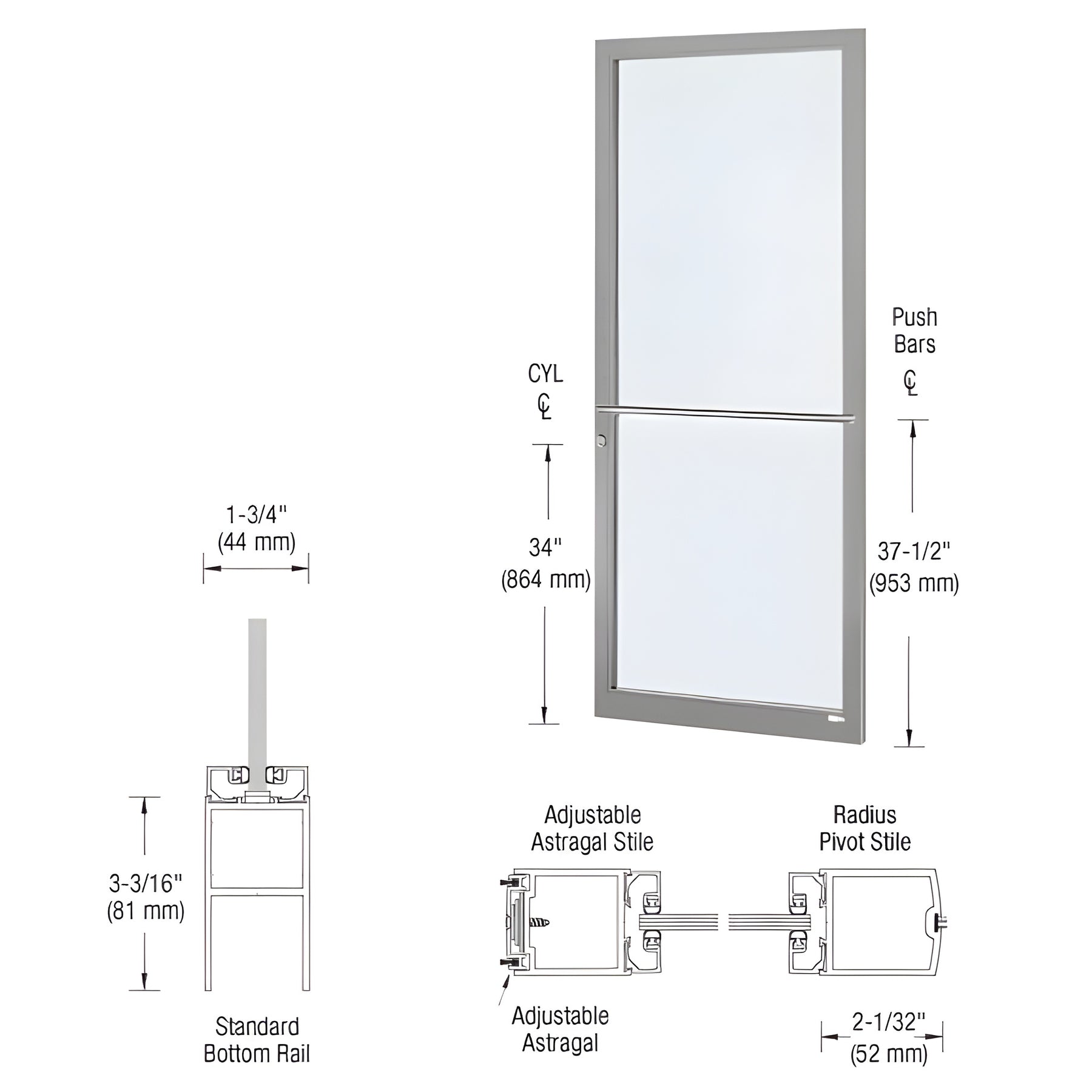

These center pivot doors include 2" (51 mm) stiles, 2-1/8" (54 mm) top rails, and your choice of 3-3/16" (81 mm) standard bottom rails or 9-1/2" (241 mm) ADA access bottom rails. Standard hardware provisions include push bar, lock, lock indicator, cylinder and cylinder guards, glass stops, and glazing gaskets. You supply the 1/4" (6 mm) clear tempered glass.

STANDARD FEATURES:

• Push bar
• Hookbolt lock (single doors)
• Three-point lock (paired doors)
• Lock indicator
• Cylinders and cylinder guards
• Glazing gaskets and glass stops

AVAILABLE OPTIONS:

• Panic devices
• Continuous geared hinges
• Butt hinges
• Vanguard security astragal

Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs, request this from CRL Customer Service before placing your order. Product images are of the actual product or close representation; colors may vary by monitor.

SKU: DC22711LA36

Narrow stile center pivot aluminum door — stocked for quick fulfillment. Order now or contact CRL for availability and shipping details.
