CRL-U.S. Aluminum 250 Series Narrow Stile Butt Hinge, Kynar® Finish

• Includes standard push/pull, hanging hardware, MS hookbolt lock, and two keyed-alike cylinders—convenient keyed-alike commercial door hardware (SKU HE21571)
• Accepts 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit compatible (glass not included)
• 9-1/2" (241 mm) bottom rail option available to meet A.D.A. and Title 24 applications for accessible commercial storefront doors
• Custom-fabricated to accept a wide range of optional hardware applications for storefront and commercial entrance use

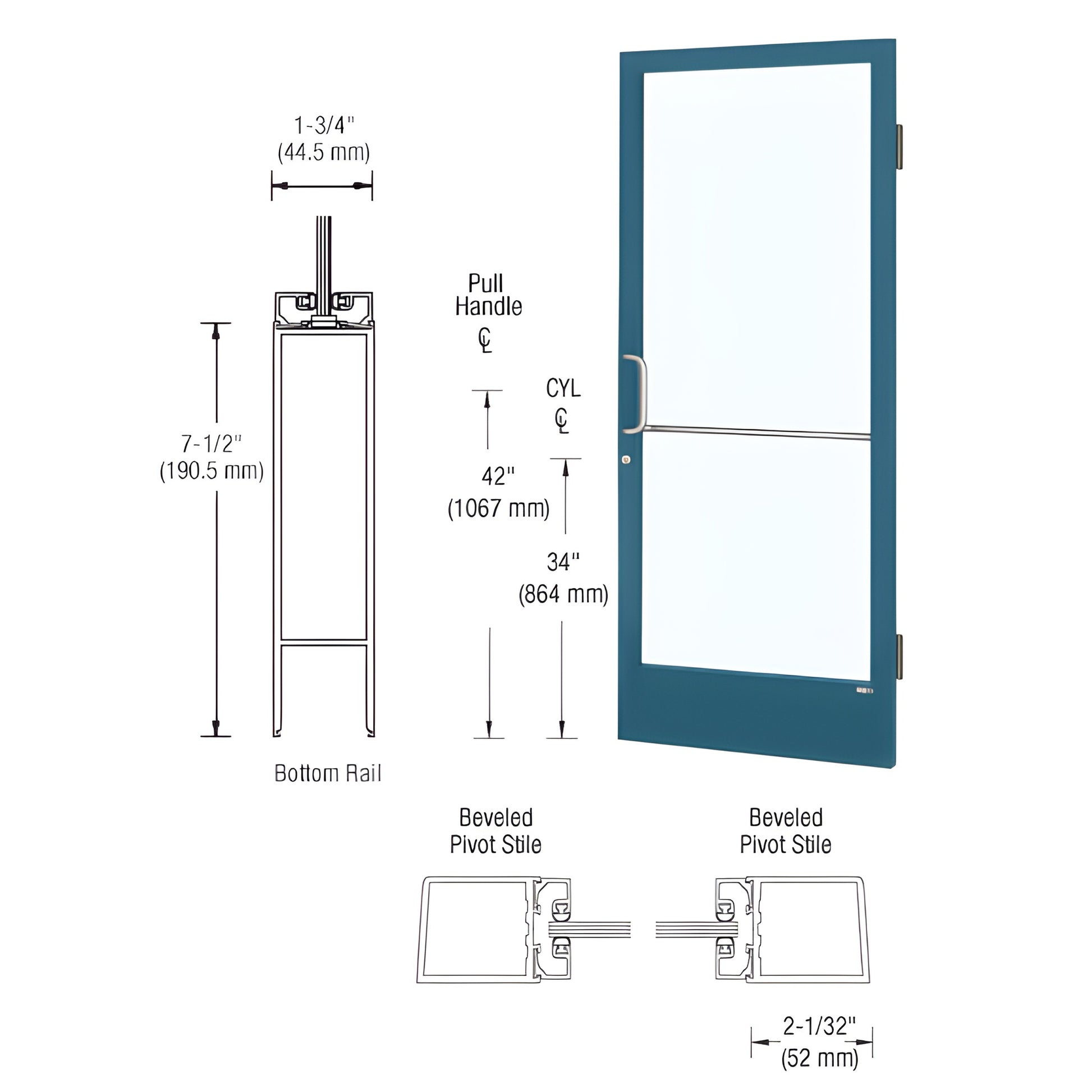

This Custom Narrow Stile Entrance Door is manufactured with 2" (51 mm) stiles, a 2-1/8" (54 mm) top rail, and a 7-1/2" (191 mm) bottom rail. Standard construction includes stiles prepared for butt hinge hardware and glass stops sized for 1/4" (6 mm) tempered glass (glass supplied by others). The door is ready for custom fabrication to accommodate additional optional hardware for commercial storefront and interior entrance applications.

Note: Included protruding hardware (handles, pivots, etc.) ships boxed separately to prevent transit damage and must be installed by the customer. Door widths under 36" (914 mm) may not meet A.D.A. inspection requirements.

Key differentiators: keyed-alike cylinders included, optional ADA-compliant bottom rail, compatible with 1/4" tempered or 1" insulated glass, and custom hardware-ready fabrication. Order SKU HE21571 or contact us for custom options and a quote.
