CRL-U.S. Aluminum 250 White KYNAR Narrow Stile Geared-Hinge Doors
CRL-U.S. Aluminum 250 White KYNAR Narrow Stile Geared-Hinge Doors
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# HE22852
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
White Kynar
Overview
- 9-1/2" (241 mm) Bottom Rail available to comply with A.D.A. and Title 21 applications
- Custom fabricated to accept optional hardware applications
- Accommodates 1/4" (6 mm) tempered glass with option for 1" (25 mm) tempered insulating unit (glass not included)
- Includes active and inactive leaf with all standard hardware

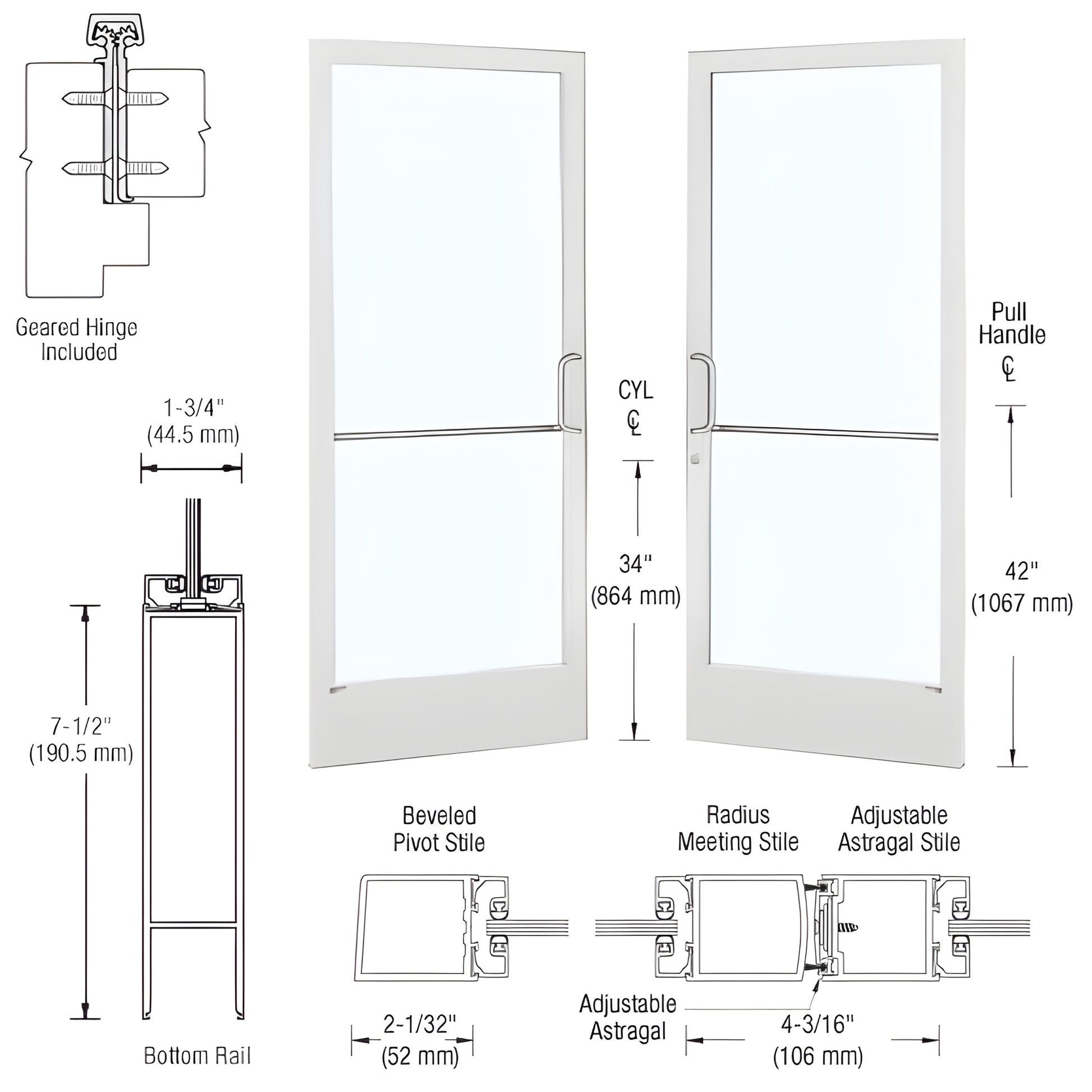

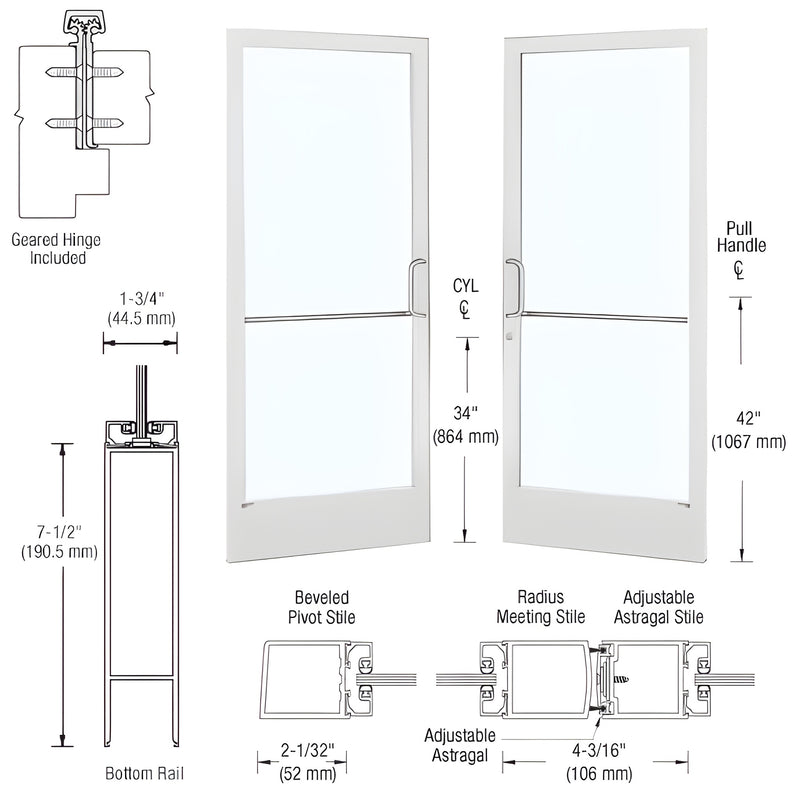

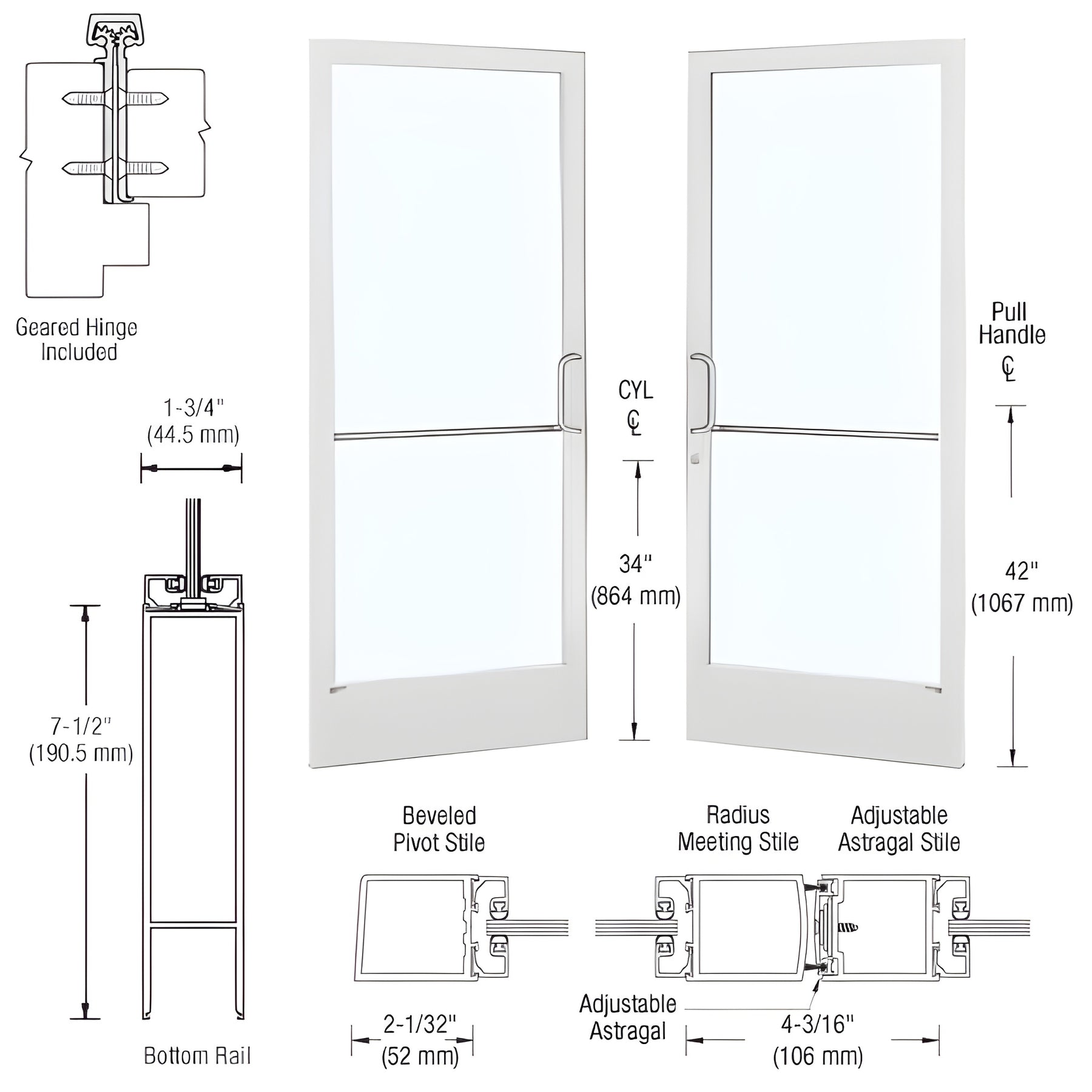

This Custom Narrow Stile Entrance Door (SKU: HE22852) features 2" (51 mm) stiles, a 2-1/8" (54 mm) top rail, and a 7-1/2" (191 mm) bottom rail. Designed for commercial and ADA-compliant entrance installations, it ships ready for Gear Hinge hardware and glass stops for 1/4" (6 mm) tempered glass (glass by others). Built for easy customization, the door accepts a wide range of optional hardware and can be factory-prepared for specific commercial storefront applications.
Customer must install included protruding hardware (handles, pivots, etc.) boxed separately to prevent transit damage.
Specifications
BIM Objects - rvt
