CRL

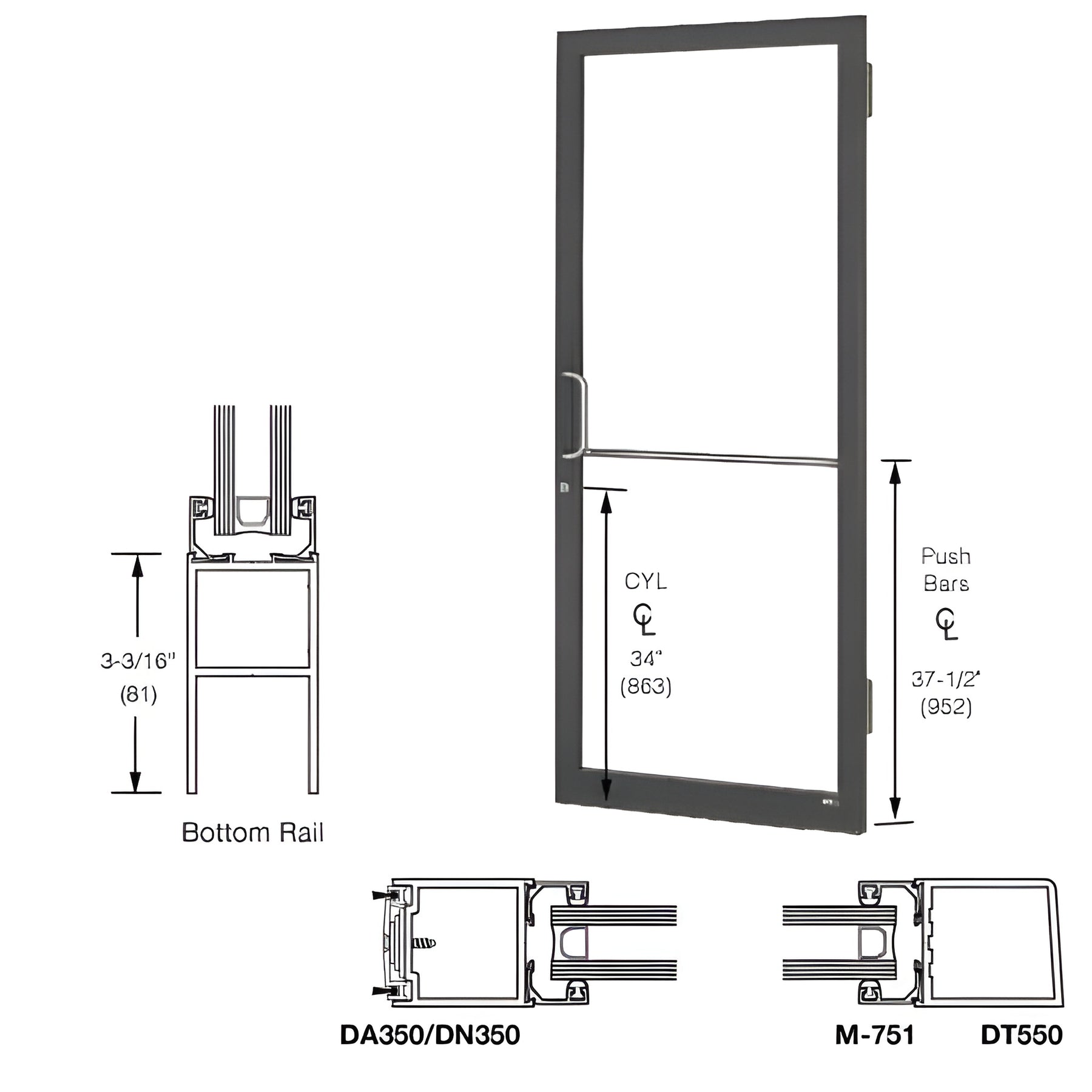

CRL-U.S. Aluminum 3'0x7'0 Narrow Stile Active Leaf, Offset Hung
Item# LE22522LA36
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Finish/Color
Black Bronze Anodized Class 1
- Accommodates 1" (25 mm) insulated glass (glass not included)

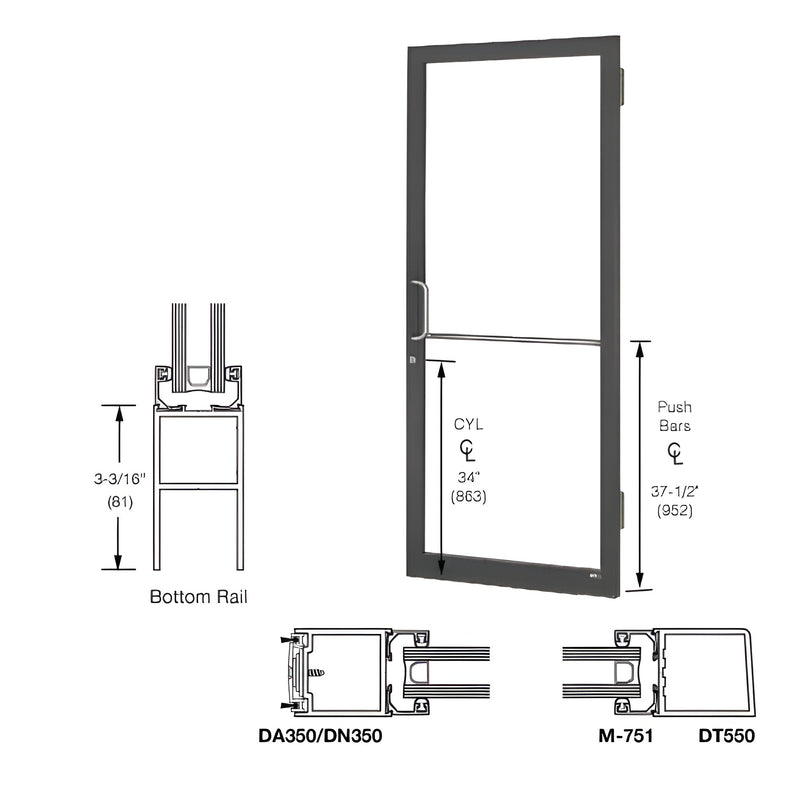

- Active door leaf with standard 3-3/16" (81 mm) bottom rail
This CRL Butt Hung active leaf of pair entrance door (SKU: LE22522LA36) is built for commercial and storefront applications with standard 2" (51 mm) stiles, a 2-1/8" (54 mm) top rail, and a 3-3/16" (81 mm) bottom rail. Designed for 1" glazing, it includes glazing gaskets and glass stops for insulated glass units. Long-tail features for storefront and commercial glass door projects: butt-hung active leaf, adjustable astragal, and compatibility with 1" insulated glass.
Standard features and hardware:
- Three butt hinges per door (1-1/2" pair of butt hinges included)
- Push bar and offset pull handle for commercial entry
- Hookbolt lock on single doors; flush bolts on paired doors
- Cylinder exterior and thumbturn interior
- Glazing gaskets and glass stops for 1" glazing
- Adjustable astragal on the active door leaf
Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs, request this prior to ordering by contacting CRL Customer Service. Product images are actual product or close representations; colors may vary by monitor.
Differentiators: Built specifically for storefront and commercial glass door installations, this butt-hung active leaf supports 1" insulated glazing and includes adjustable astragal and commercial-grade hardware for secure, durable performance.
Ready to specify? Contact CRL Customer Service or add SKU LE22522LA36 to your quote.
