CRL-U.S. Aluminum 36x84 Clear Anodized Wide-Stile Entry Door
Item# HZ51511
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Finish/Color
Clear Anodized Class 1
- Includes Standard Panic Pull, Hanging Hardware, Concealed Vertical Rod Panic Hardware, and one cylinder — ready for commercial and emergency-exit applications
- Designed for 1/4" (6 mm) tempered glass with optional 1" (25 mm) tempered insulating unit compatibility (glass not included)
- Optional 9-1/2" (241 mm) bottom rail available to meet A.D.A. and Title 24/21 requirements for accessible storefront doors
- Custom fabricated to accept a wide range of optional hardware applications, including butt hinges, pivots, and specialty exit devices

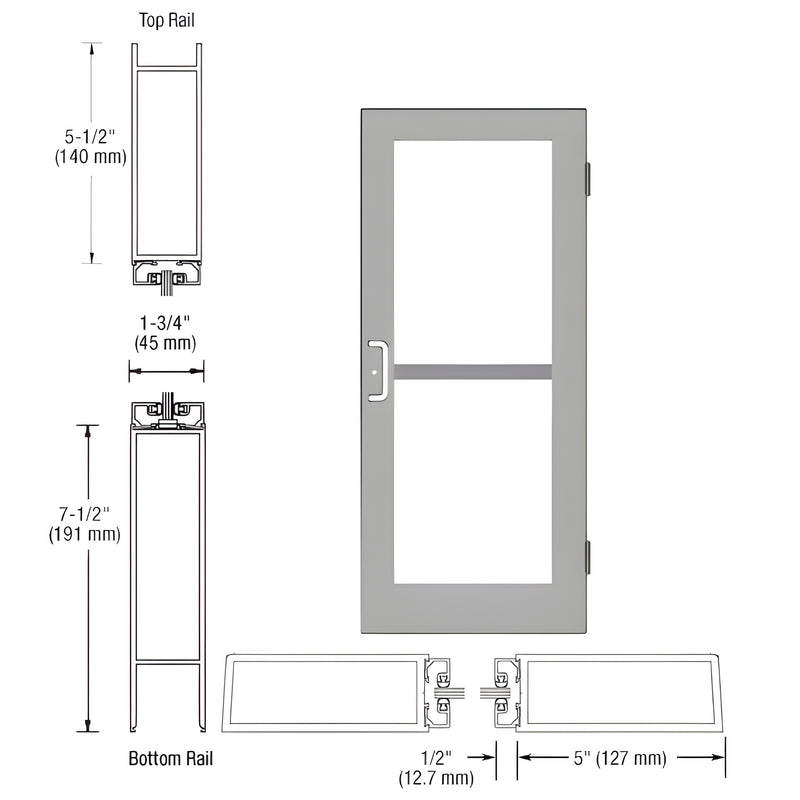

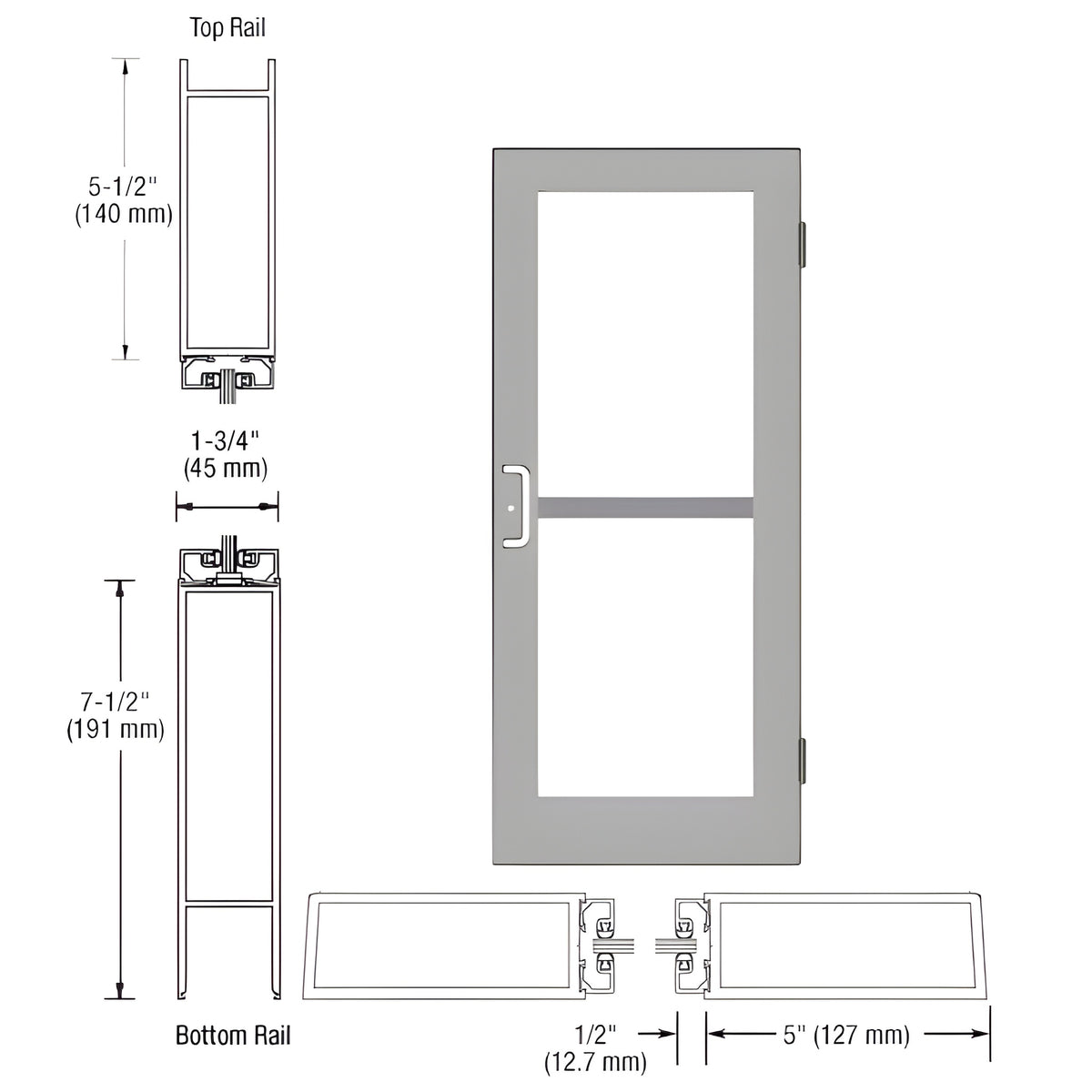

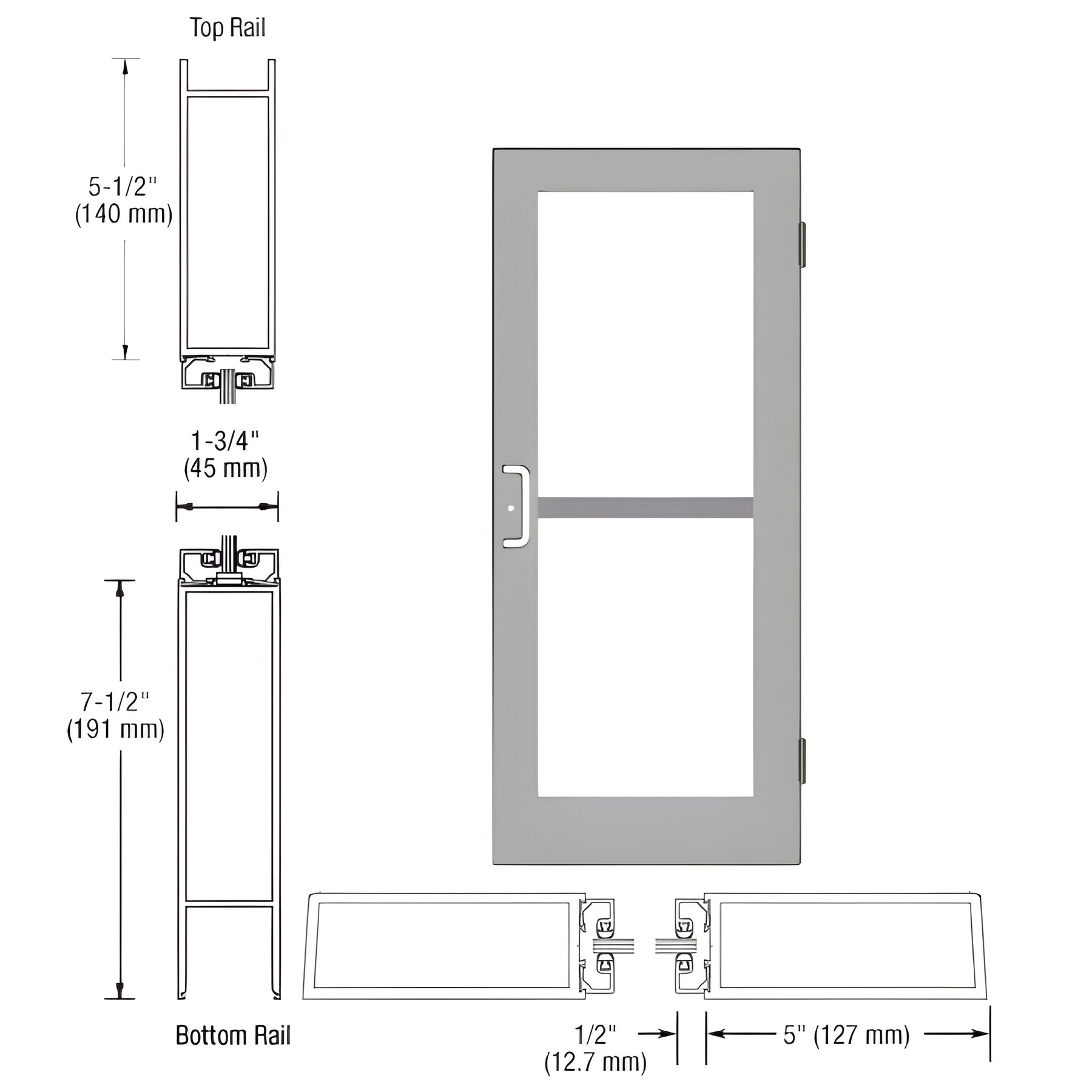

This Custom Wide Stile Entrance Door (SKU: HZ51511) features 5" (127 mm) stiles, a 5-1/2" (140 mm) top rail, and a 7-1/2" (191 mm) bottom rail. Standard configuration includes stiles prepared for butt hinge hardware and glass stops sized for 1/4" (6 mm) tempered glass (glass supplied by others). The door is built for custom fabrication to accept concealed vertical rod panic hardware and other commercial-grade exit devices.
Note: Protruding hardware (handles, pivots, etc.) is boxed separately and must be installed by the customer to prevent transit damage. Door widths under 36" (914 mm) may not meet A.D.A. inspection requirements — consider the optional 9-1/2" bottom rail when specifying accessible tempered glass storefront doors.
Most shipping weights are approximate and have not been verified. If you need exact weight to calculate shipping costs, contact CRL Customer Service before ordering. Product images show the actual product or a close representation; colors may vary by monitor.
Highlights: Commercial-grade custom wide stile entrance door, compatible with insulated tempered glass units, concealed vertical rod panic hardware ready, ADA-compliant bottom rail option. Order SKU HZ51511 or contact us for custom hardware and glazing specifications.
Ready to specify? Contact CRL Customer Service to request exact weights, delivery lead times, or to start a custom order.
