CRL-U.S. Aluminum 36x84 KYNAR® Narrow Stile Entrance Door Butt Hinge

• Includes standard panic pull, hanging hardware, concealed vertical rod panic hardware, and one cylinder (SKU: CZ21471)
• Accepts 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating glass unit compatible (glass not included)
• 9-1/2" (241 mm) bottom rail installed to comply with A.D.A.; narrower door widths may not meet A.D.A. inspection
• Custom fabricated stiles and rails to accept optional hardware applications and specialty commercial hardware

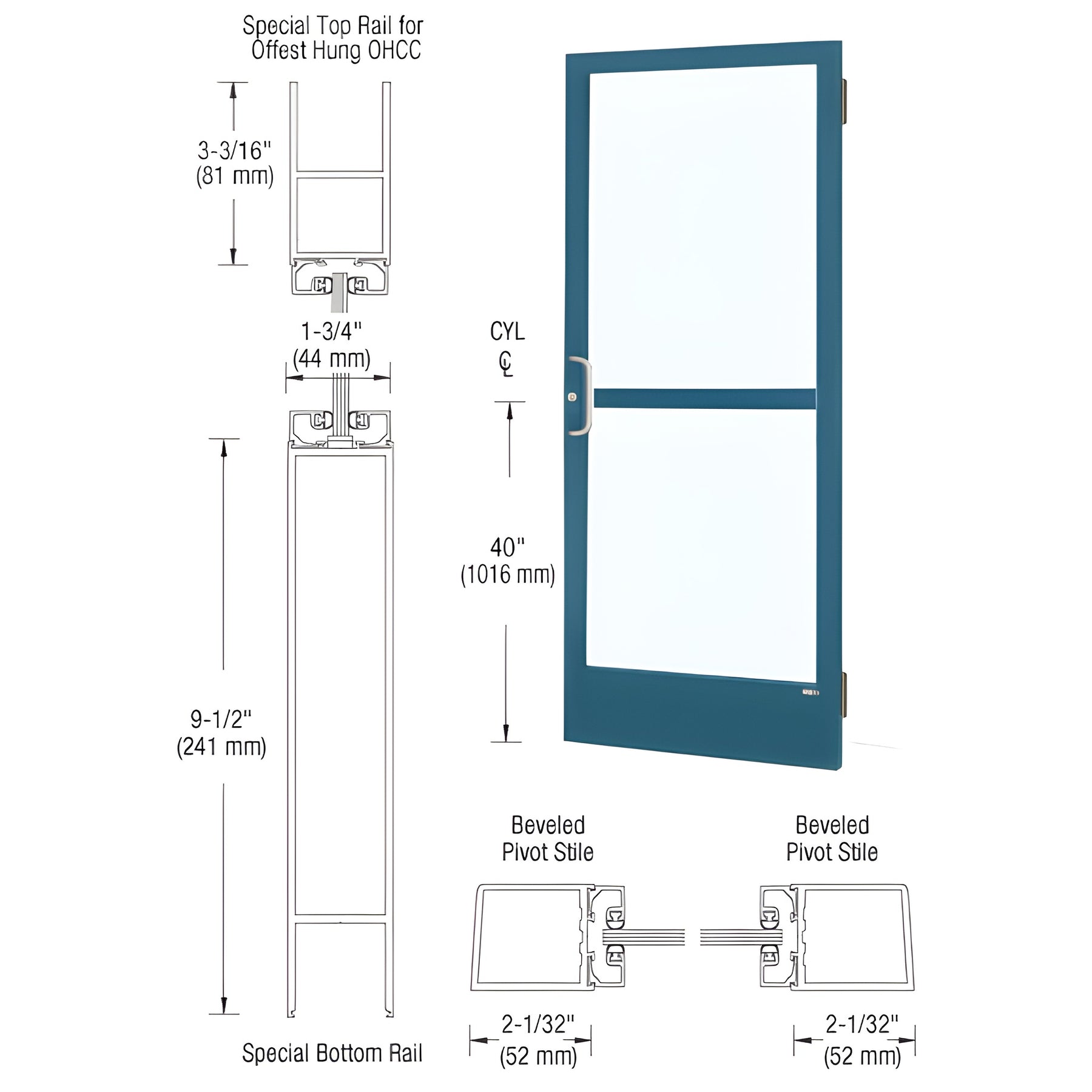

This CRL Custom Narrow Stile Entrance Door features 2" (51 mm) stiles, a 3-3/16" (81 mm) top rail, and a 9-1/2" (241 mm) ADA bottom rail. Standard preparation includes stiles for butt hinge hardware and glass stops for 1/4" (6 mm) tempered glass (by others). Designed for custom fabrication to accommodate a wide range of optional commercial and security hardware, including concealed vertical rod panic devices and commercial exit hardware.

Customer-installed protruding hardware (handles, pivots, etc.) is boxed separately to prevent transit damage. Door widths under 36" (914 mm) may not pass A.D.A. inspection—verify required clearances before ordering.

Order the CZ21471 narrow stile entrance door or contact CRL for custom hardware options and lead times.
