CRL-U.S. Aluminum 36x84 Narrow-Stile Butt-Hinge Door - Black Anodized
CRL-U.S. Aluminum 36x84 Narrow-Stile Butt-Hinge Door - Black Anodized
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# DE21522
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Black Bronze Anodized Class 1
Overview
- Includes standard push/pull hardware, hanging hardware, MS hookbolt lock, and two keyed-alike cylinders
- 9-1/2" (241 mm) bottom rail installed to comply with A.D.A.
- Custom fabricated to accept optional hardware applications

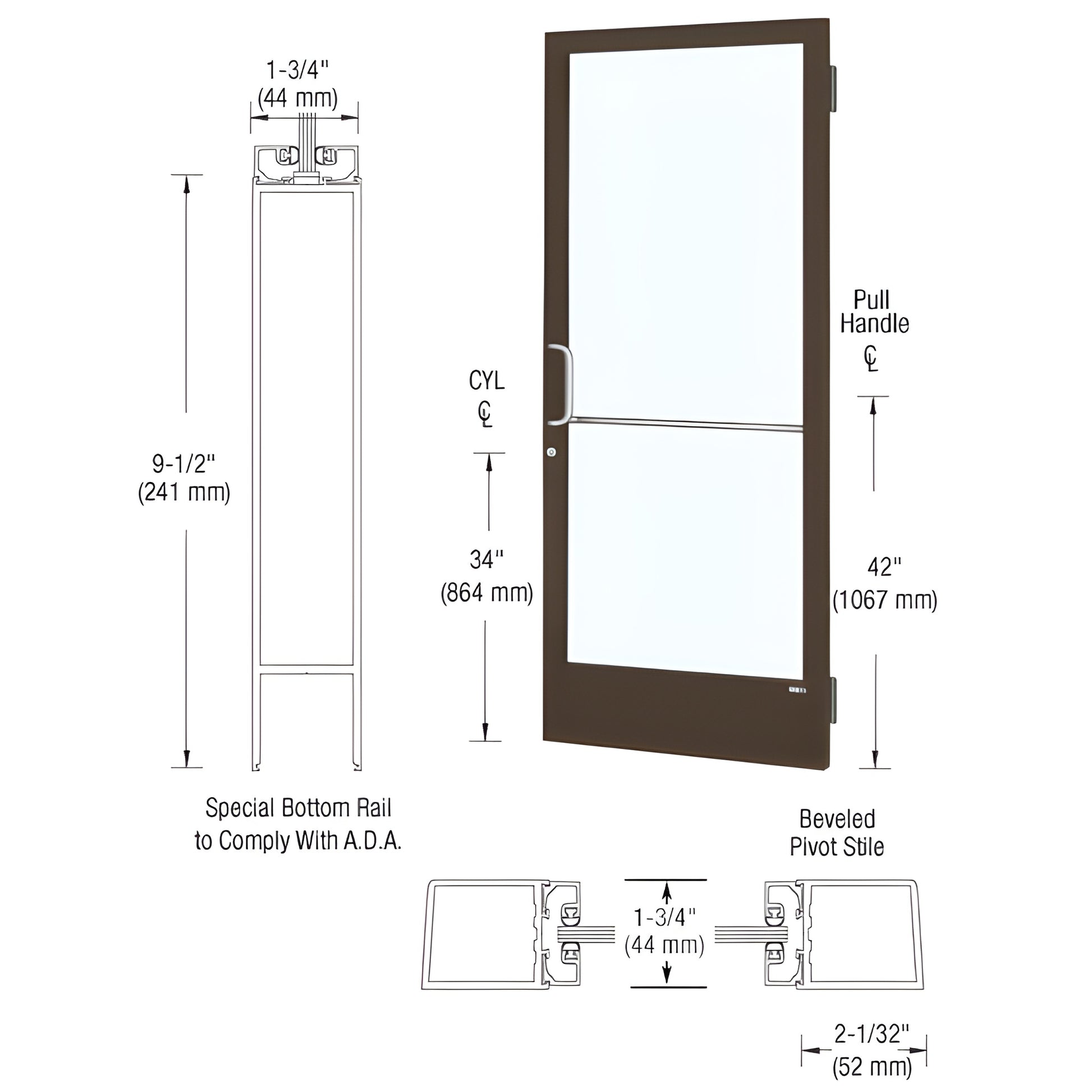

This Custom Narrow Stile Entrance Door (SKU DE21522) features 2" (51 mm) stiles, a 2-1/8" (54 mm) top rail, and a 9-1/2" (241 mm) ADA bottom rail. Standard design includes stiles for butt hinge hardware and glazed stops to accept 1/4" (6 mm) tempered glass (by others). The door is ready for custom fabrication to accommodate a wide range of optional hardware applications, making it ideal for storefronts, commercial entrances, and ADA-compliant narrow stile installations.
Note: Protruding hardware (handles, pivots, etc.) ships boxed separately to prevent damage and must be installed by the customer. Door widths under 36" (914 mm) may not meet A.D.A. inspection requirements.
Call or order online to configure this custom narrow stile entrance door for your project.
Specifications
BIM Objects - rvt
