CRL-U.S. Aluminum 36x84 Series 250 KYNAR® Narrow Stile Butt Hinge Door

CRL-U.S. Aluminum 36x84 Series 250 KYNAR® Narrow Stile Butt Hinge Door

Shipping calculated at checkout.
Quantity
Item# CZ21571
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Custom Kynar

Overview

  • Includes standard panic pull, hanging hardware, concealed vertical rod panic hardware, and one cylinder
  • 9-1/2" (241 mm) bottom rail installed to comply with A.D.A.
  • Custom fabricated to accept optional hardware applications for storefront and commercial entrances
  • Accommodates 1/4" (6 mm) tempered glass (by others) with option for 1" (25 mm) tempered insulating unit; glass not included

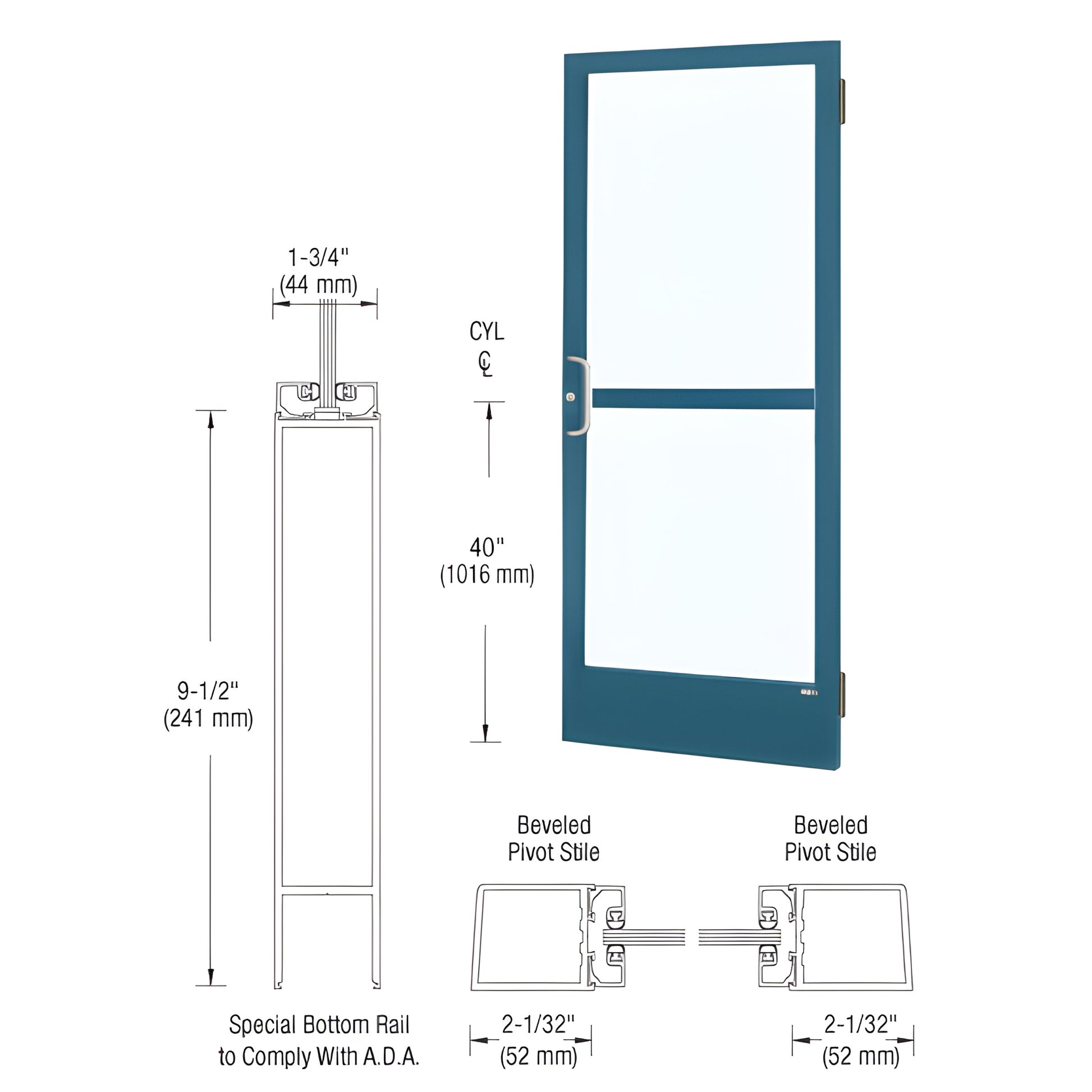

This CRL Custom Narrow Stile Entrance Door (SKU: CZ21571) features narrow 2" (51 mm) stiles, a 2-1/8" (54 mm) top rail, and an ADA-compliant 9-1/2" (241 mm) bottom rail. Designed for commercial storefronts, this narrow stile door ships ready for butt hinge hardware and glass stops for 1/4" tempered glass. It is custom-fabricated to accept a wide range of optional hardware, including concealed vertical rod panic hardware for secure, code-compliant egress.

Note: Included protruding hardware (handles, pivots, etc.) ships boxed separately to prevent transit damage and must be installed by the customer. Door widths under 36" (914 mm) may not meet ADA inspection requirements.

Most shipping weights are approximate and have not been verified. If exact weight or shipping cost is required to complete your order, contact CRL Customer Service before submitting your order. Product images are actual or close representations; colors may vary with monitor settings.


For pricing or to order SKU CZ21571, contact CRL or add this narrow stile entrance door to your cart today.

Specifications
