CRL-U.S. Aluminum 400 3'0x7'0 Clear Anod. Inactive Leaf Geared Hinge
CRL-U.S. Aluminum 400 3'0x7'0 Clear Anod. Inactive Leaf Geared Hinge
Regular price
$1,285.67 CAD
Regular price
Sale price
$1,285.67 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# DE42811R136
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Clear Anodized Class 1
Overview
- 9-1/2" (241 mm) Bottom Rail installed to comply with A.D.A. — ADA-compliant entrance door bottom rail
- Inactive leaf of pair includes standard push/pull, hanging hardware, MS hookbolt lock, and two keyed-alike cylinders for simplified keying
- Accommodates 1/4" (6 mm) tempered glass (by others) with optional 1" (25 mm) tempered insulating unit; glass not included

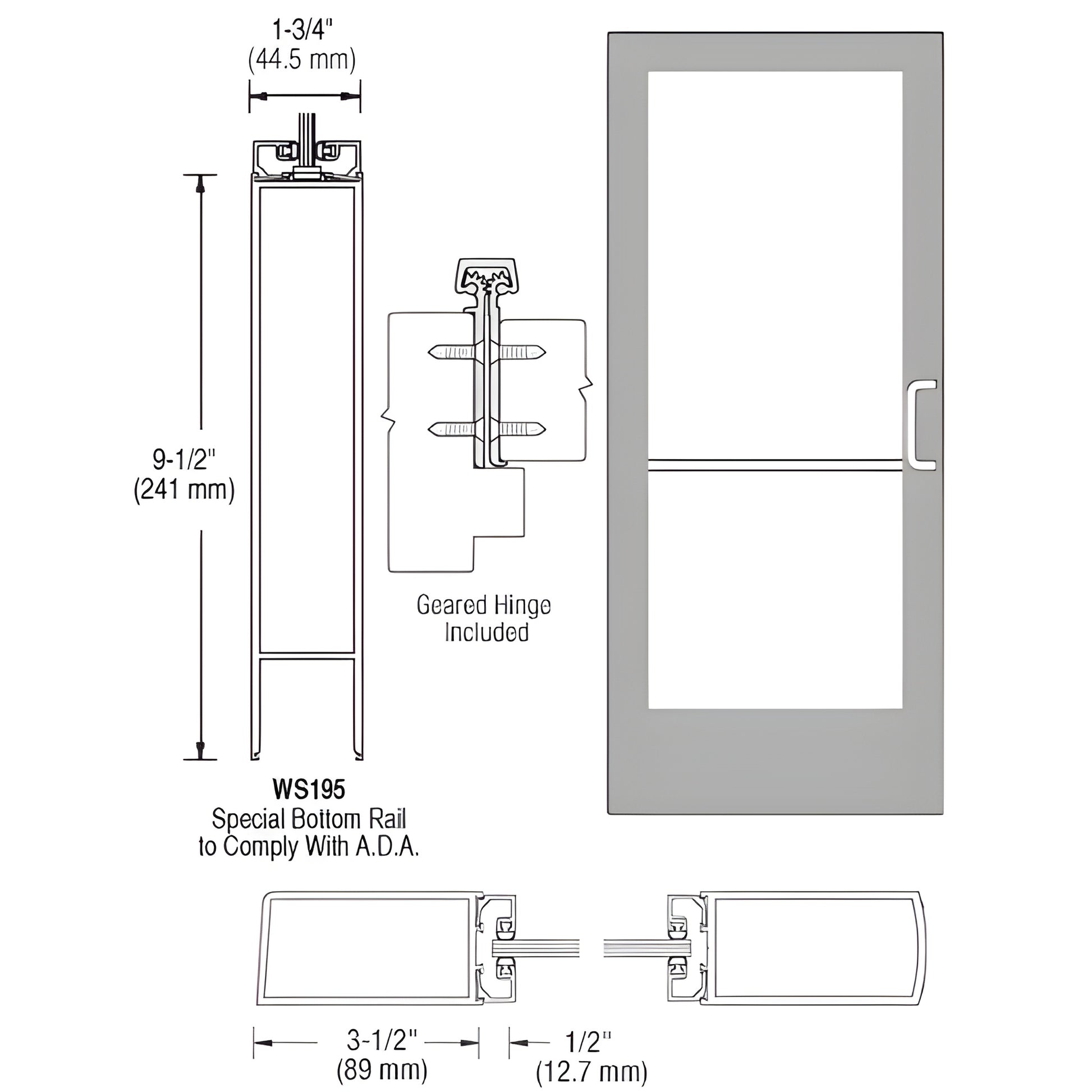

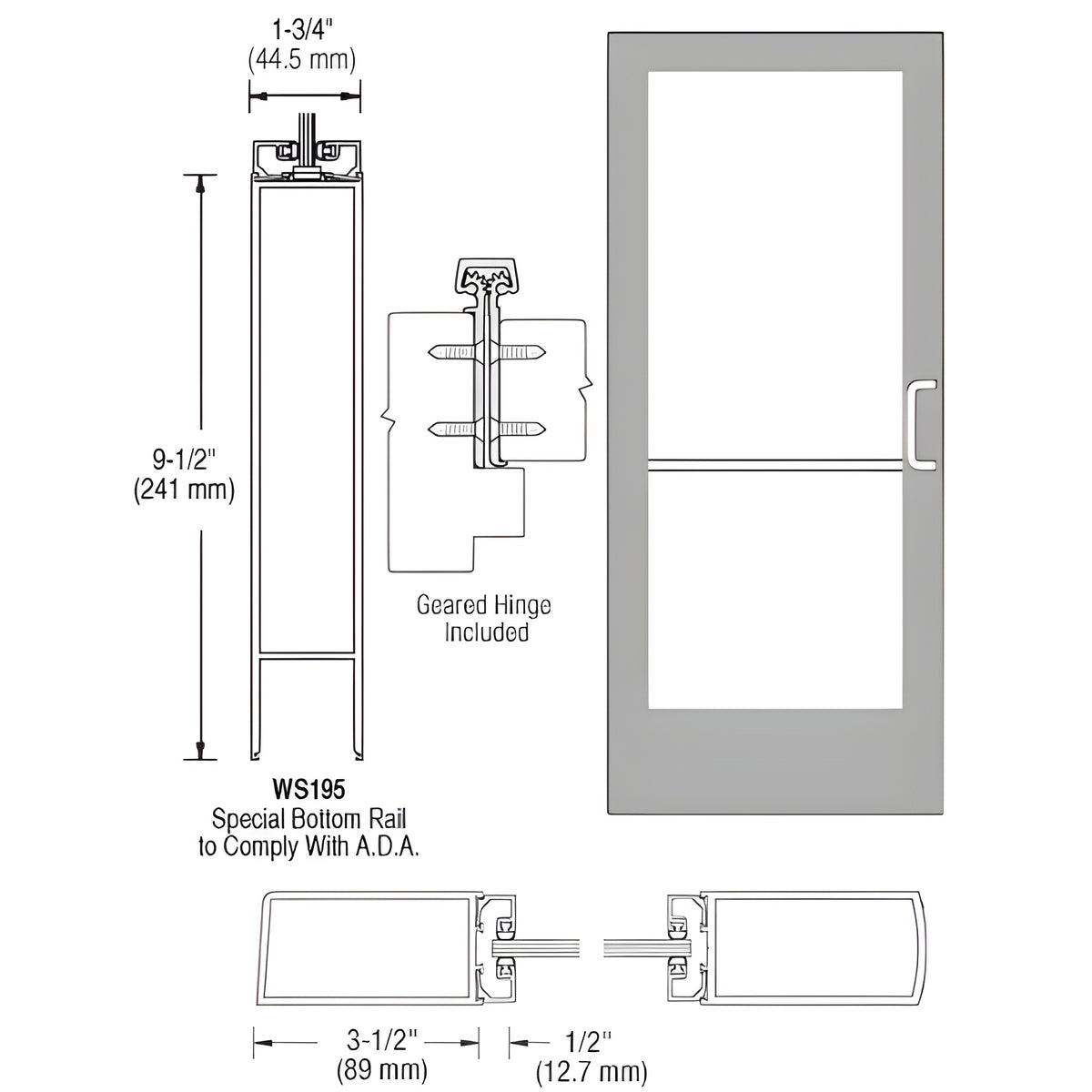

Standard Medium Stile Entrance Door — 3-1/2" (89 mm) stiles, 3-3/16" (81 mm) top rail, and 9-1/2" (241 mm) bottom rail. Designed for Gear Hinge hardware and supplied with glass stops sized for 1/4" (6 mm) tempered glass. Comes with standard hardware and factory fabrication. Ideal for commercial storefronts and ADA-compliant entryways where durability and keying convenience matter.
Customer must install included protruding hardware (handles, pivots, etc.) which is boxed separately to prevent damage during transit.
SKU: DE42811R136 — Contact CRL Customer Service to confirm glass options or shipping weight and to place your order.
Specifications
BIM Objects - rvt
