CRL-U.S. Aluminum 400 Clear Anodized 36x84 Offset Door, Geared Hinge
CRL-U.S. Aluminum 400 Clear Anodized 36x84 Offset Door, Geared Hinge
Regular price
$1,137.43 CAD
Regular price
Sale price
$1,137.43 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# DE41811R036
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Clear Anodized Class 1
Overview
- Accepts 1/4" (6 mm) tempered glass or optional 1" (25 mm) tempered insulating glass unit (glass not included)
- 36" x 84" (914 mm x 2.13 m) door opening — Right side latch; ideal for commercial storefronts and interior ADA entrances
- 9-1/2" (241 mm) A.D.A. compliant bottom rail for accessible door thresholds

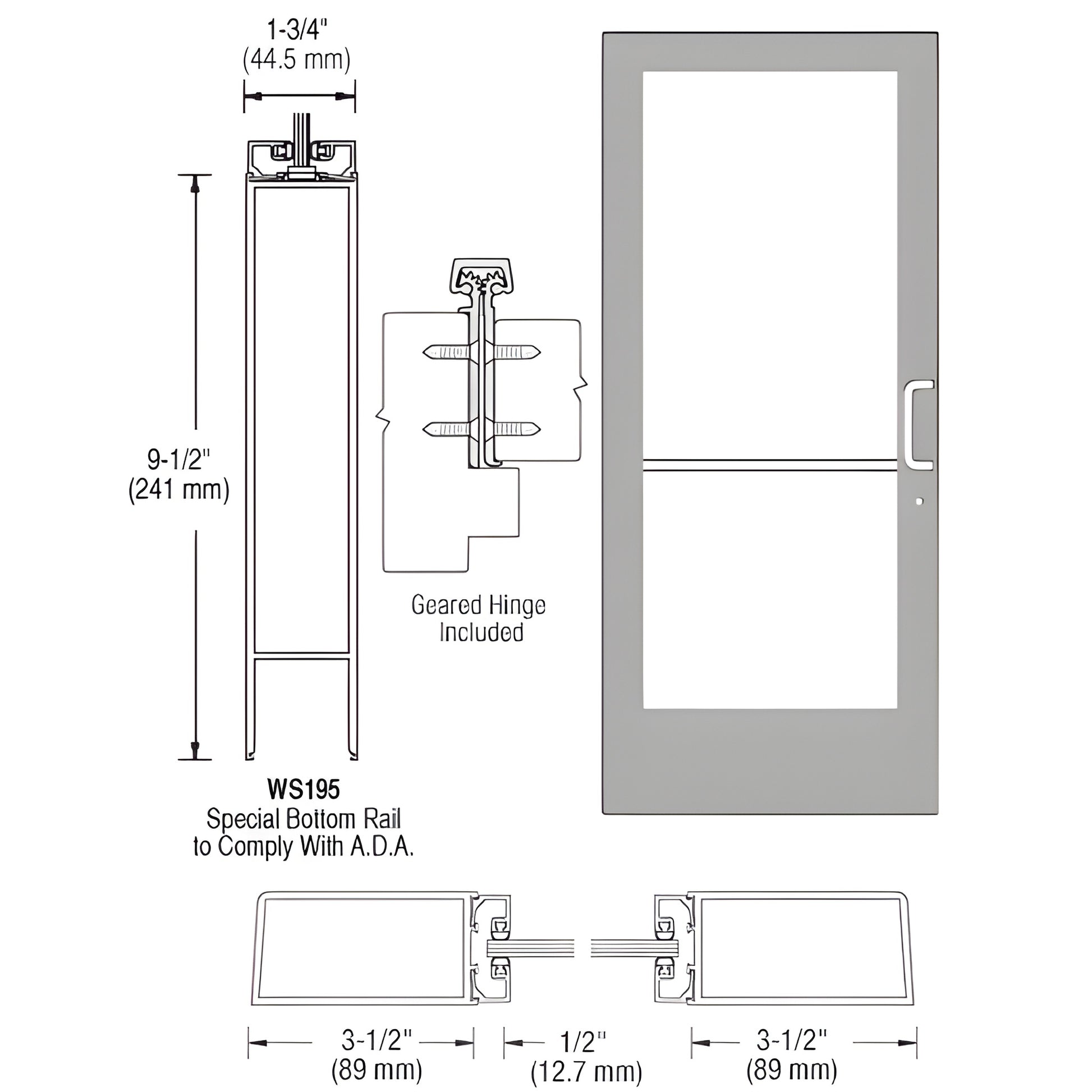

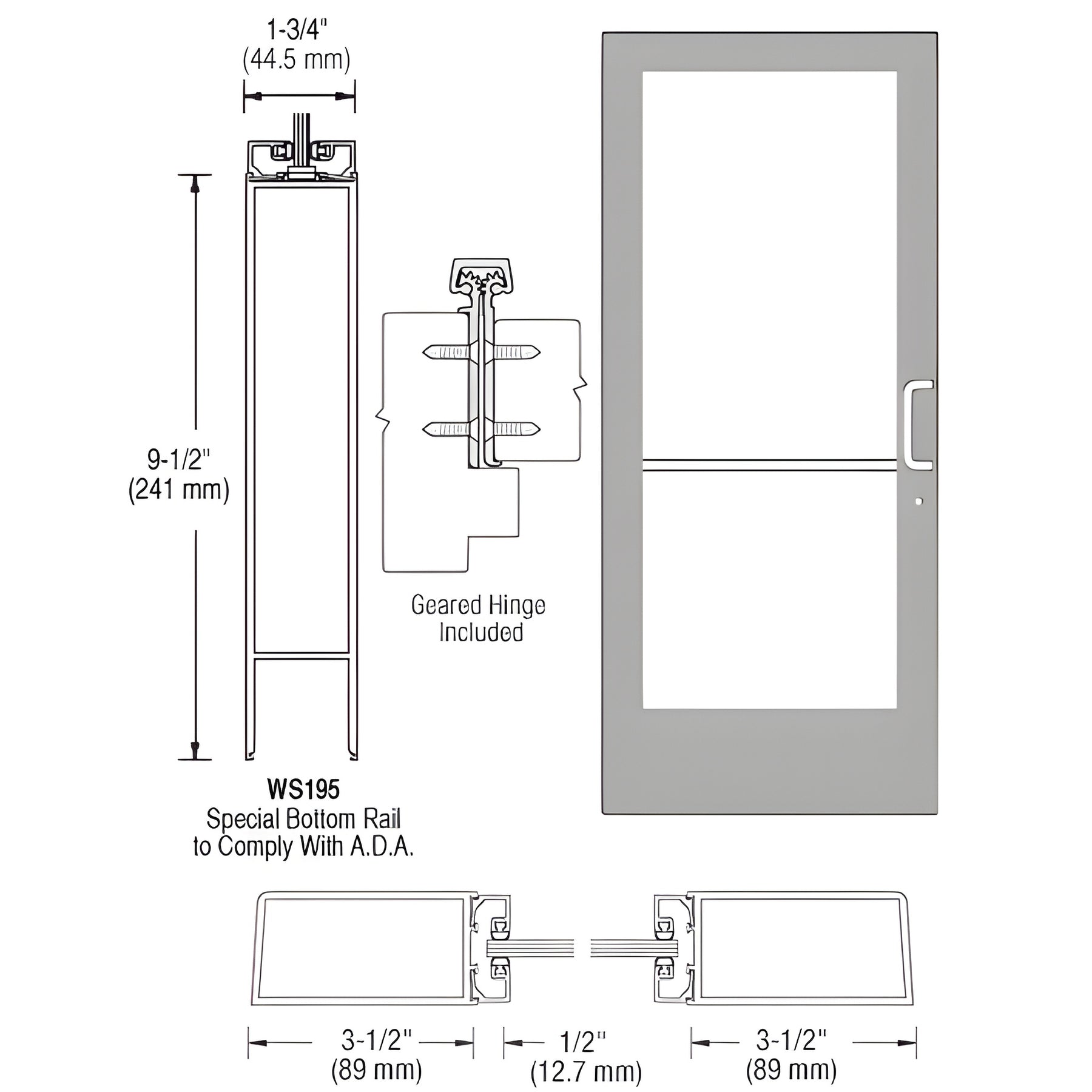

CRL-U.S. Aluminum Clear Anodized Single 36" x 84" Series 400 Medium Stile Inactive Leaf — Right Side Latch Geared Hinge (SKU: DE41811R036) — surface-mount geared hinge inactive leaf for glass doors. Includes flushbolts, push handles, 3-1/2" (89 mm) stiles, 3-3/16" (81 mm) top rail and 9-1/2" A.D.A. bottom rail. Built for commercial glass door installations requiring durable aluminum framing and reliable right-side latch operation.
Specifications
BIM Objects - rvt
