CRL-U.S. Aluminum 400 Clear Anodized Offset-Hung Geared-Hinge Doors
CRL-U.S. Aluminum 400 Clear Anodized Offset-Hung Geared-Hinge Doors
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# DE42911
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Clear Anodized Class 1
Overview
- 9-1/2" (241 mm) bottom rail—installed to comply with A.D.A.
- Custom fabricated to accept optional hardware applications
- Includes active and inactive leaf with all standard hardware
- Accommodates 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit (glass not included)

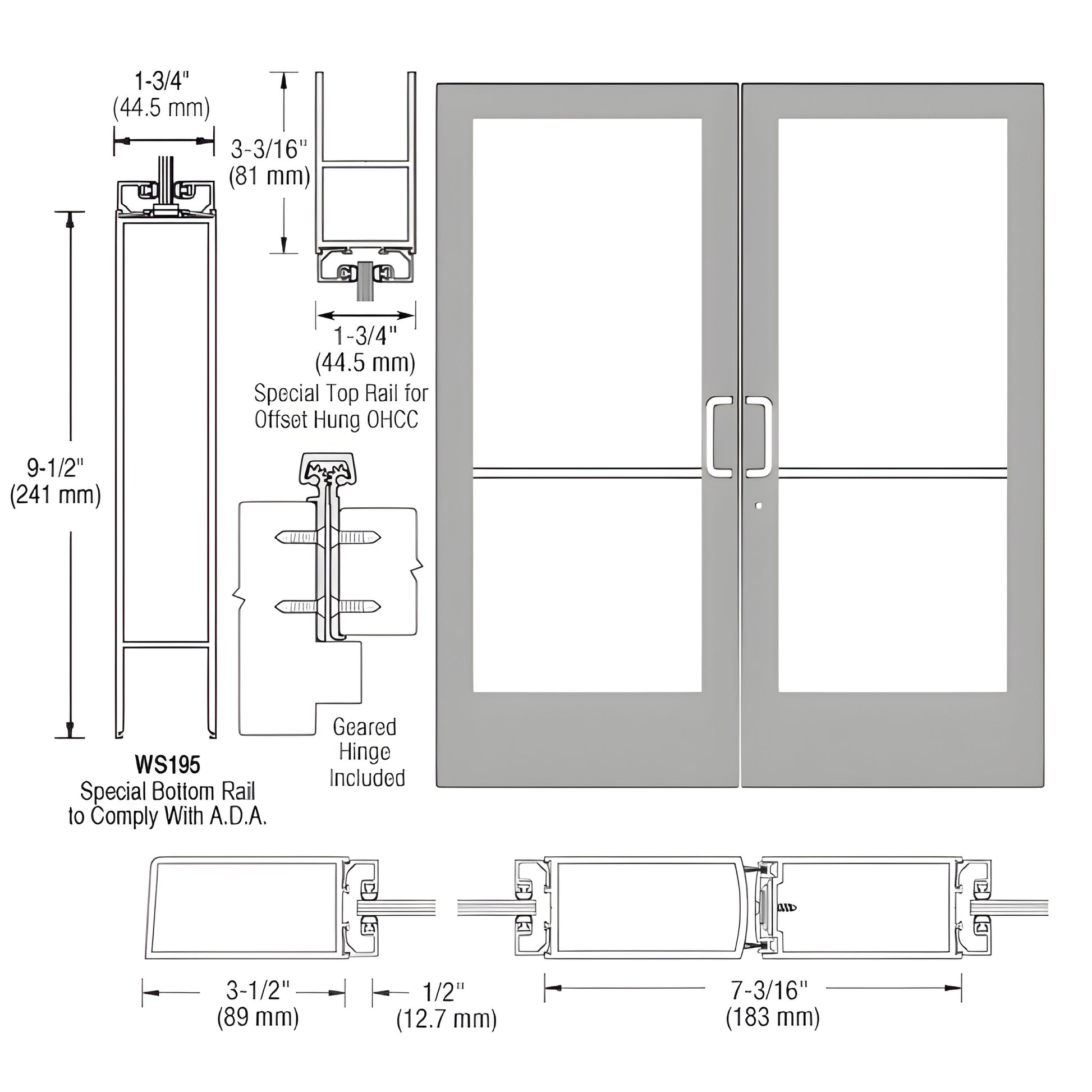

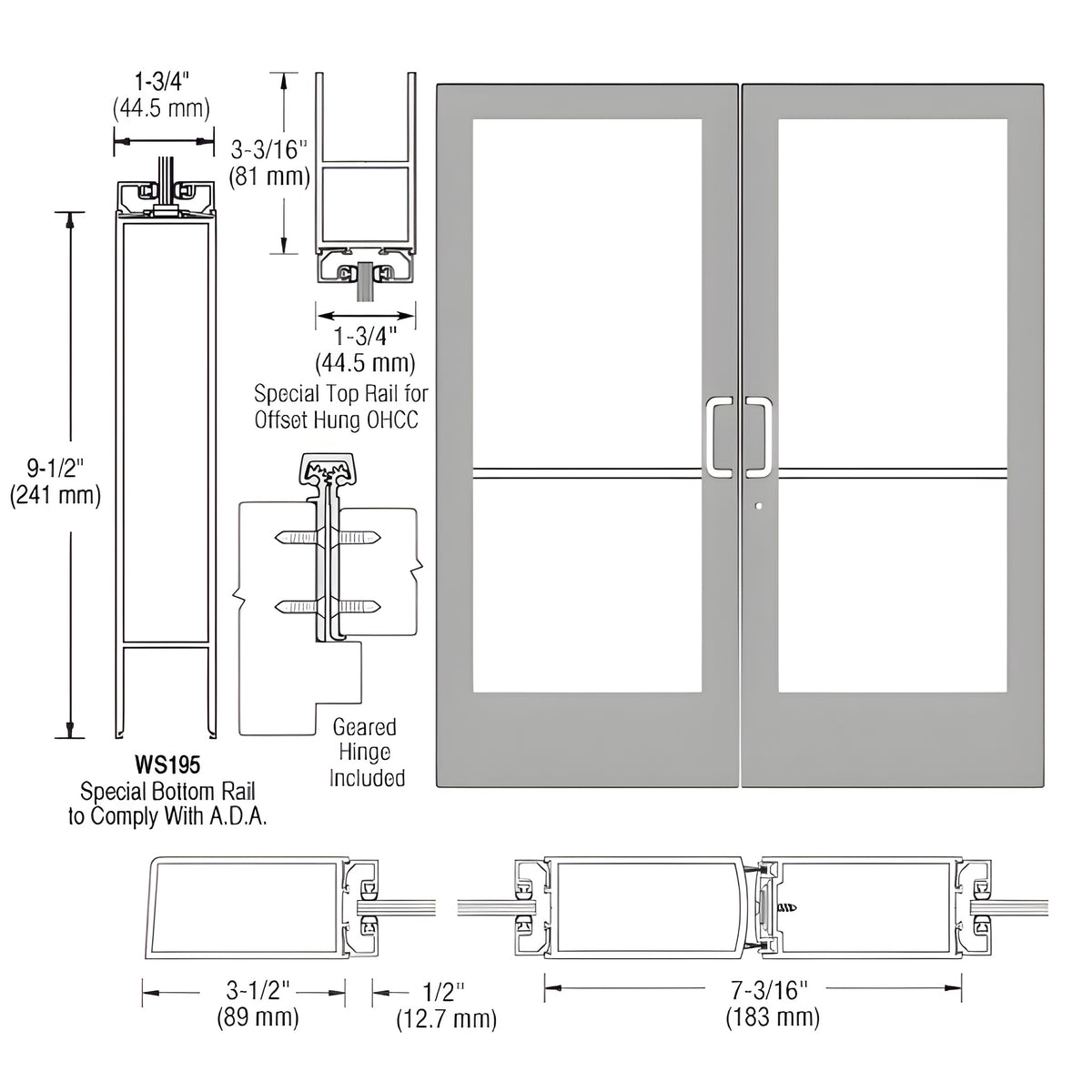

This Custom Medium Stile Entrance Door (SKU: DE42911) features 3-1/2" (89 mm) stiles, a 3-3/16" (81 mm) top rail, and a 9-1/2" (241 mm) ADA-compliant bottom rail. Standard construction includes stiles prepped for Gear Hinge hardware and glass stops for 1/4" (6 mm) tempered glass. Built for custom fabrication, it accepts a wide range of optional commercial entrance door hardware—ideal for storefronts, ADA-compliant entries, and custom glass door installations.
Order SKU DE42911 or contact us for custom hardware options and glass specifications.
Specifications
BIM Objects - rvt
