CRL-U.S. Aluminum 400 Geared Medium Stile Hinge for Concealed Closer
CRL-U.S. Aluminum 400 Geared Medium Stile Hinge for Concealed Closer
Regular price
$1,728.99 CAD
Regular price
Sale price
$1,728.99 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# DC41922
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Black Bronze Anodized Class 1
Overview
- 6-1/2" (165 mm) Bottom Rail
- Custom fabricated to accept optional hardware applications
- Includes standard push/pull, hanging hardware, MS hookbolt lock, and two keyed-alike cylinders
- Accommodates 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit compatible (glass not included)

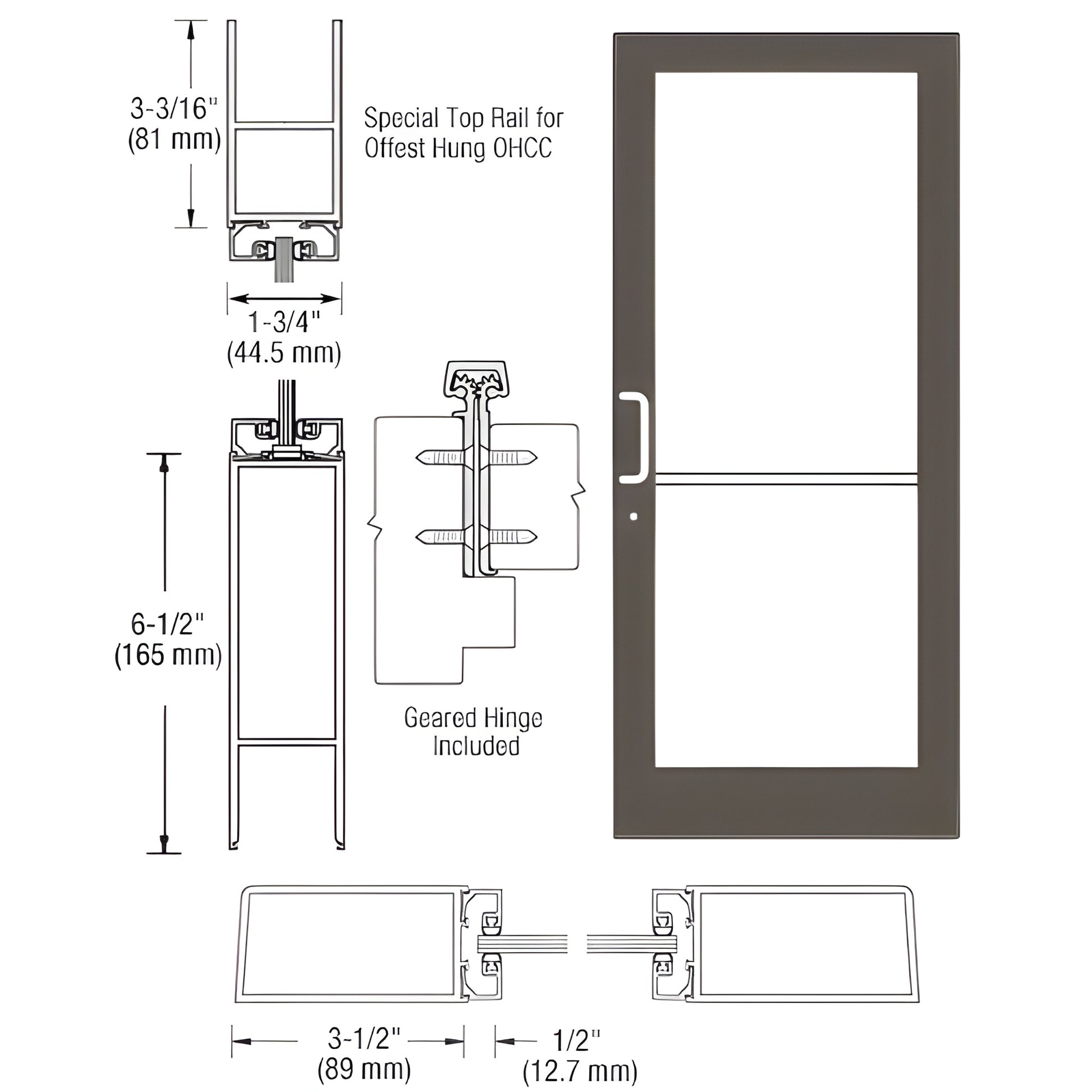

This CRL Custom Medium Stile Entrance Door (SKU: DC41922) features 3-1/2" (89 mm) stiles, a 3-3/16" (81 mm) top rail, and a 6-1/2" (165 mm) bottom rail. Designed for commercial storefronts and custom entrance solutions, it ships with stiles prepared for Gear Hinge hardware and glass stops sized for 1/4" (6 mm) tempered glass. Built for flexible, on-site customization and a wide range of optional hardware applications.
Note: Included protruding hardware (handles, pivots, etc.) is boxed separately to prevent transit damage and must be installed on-site. Door widths under 36" (914 mm) may not meet A.D.A. inspection requirements.
Order SKU DC41922 or contact CRL for customization and lead times.
Specifications
BIM Objects - rvt
