CRL
CRL-U.S. Aluminum 400 Med Stile Geared-Hinge Entry Doors w/Panic
CRL-U.S. Aluminum 400 Med Stile Geared-Hinge Entry Doors w/Panic
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CZ42911
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Clear Anodized Class 1
Overview
- 9-1/2" (241 mm) bottom rail installed to comply with A.D.A.
- Custom fabricated to accept optional hardware applications
- Includes active and inactive leaf with standard concealed vertical rod panic hardware
- Accommodates 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit available (glass not included)

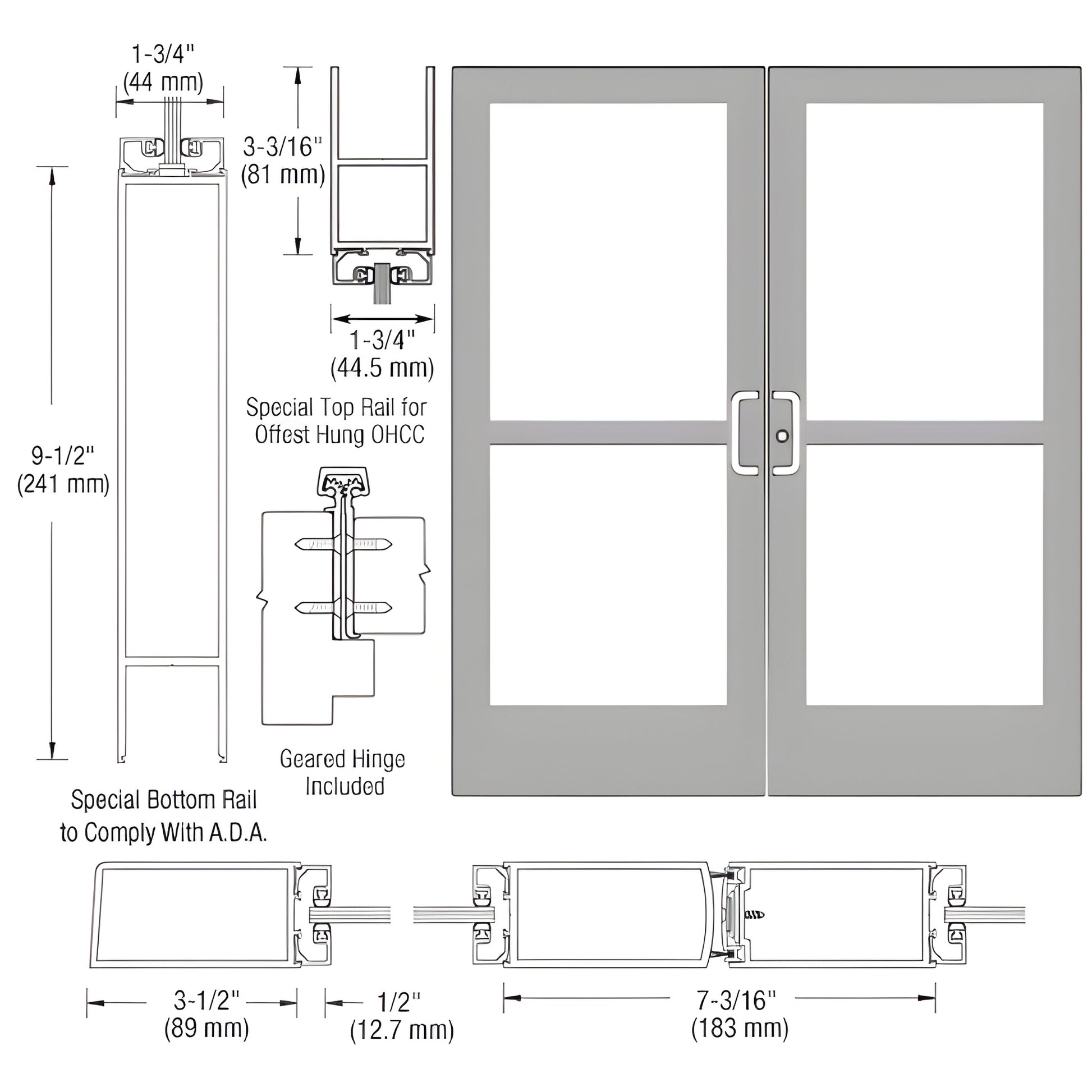

This CRL Custom Medium Stile Entrance Door features 3-1/2" (89 mm) stiles, a 3-3/16" (81 mm) top rail, and a 9-1/2" (241 mm) ADA-compliant bottom rail. Designed for commercial aluminum storefront and entrance door applications, it ships ready for Gear Hinge hardware and includes glass stops for 1/4" (6 mm) tempered glass (glass by others). The door is custom-fabricated to accept a wide range of optional hardware, including concealed vertical rod panic hardware for secure egress solutions.
Customer must install included protruding hardware (handles, pivots, etc.), which is boxed separately to prevent transit damage.
SKU: CZ42911
Ready to specify this CRL custom entrance door for your commercial storefront project? Contact CRL Customer Service or order SKU CZ42911 today.
Specifications
BIM Objects - rvt
