CRL-U.S. Aluminum 400 Medium Stile Geared Hinge Entry Door, KYNAR
CRL-U.S. Aluminum 400 Medium Stile Geared Hinge Entry Door, KYNAR
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# HE41971
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Custom Kynar
Overview
- Fits 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit compatible (glass not included)
- Includes standard push/pull hardware, hanging hardware, MS hookbolt lock, and two keyed‑alike cylinders
- 7-1/2" (191 mm) bottom rail
- Custom fabricated to accept a wide range of optional hardware applications

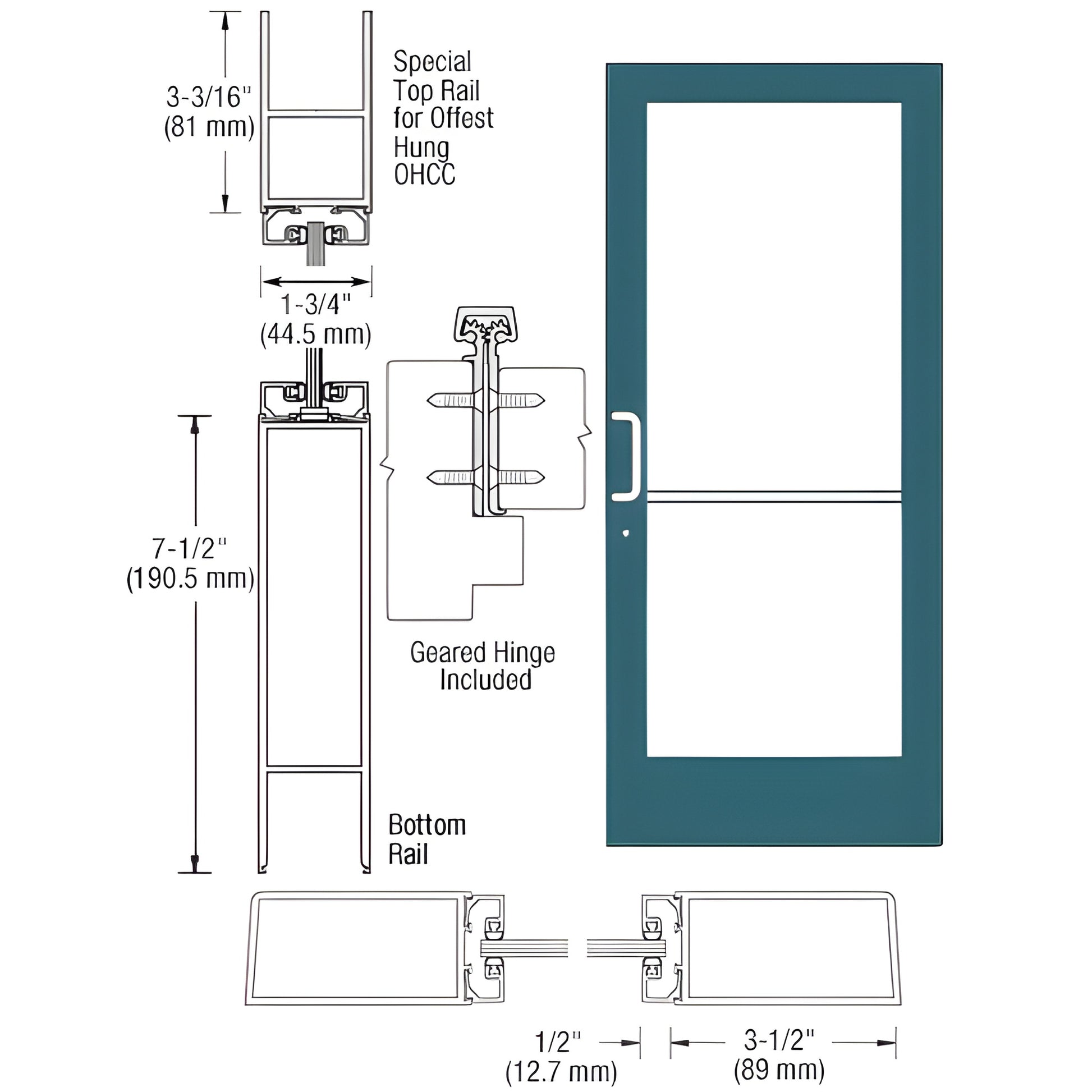

This Custom Medium Stile Entrance Door (SKU: HE41971) is a commercial-grade entrance solution built with 3-1/2" (89 mm) stiles, a 3-3/16" (81 mm) top rail, and a 7-1/2" (191 mm) bottom rail. Standard features include stiles prepared for Gear Hinge hardware and glass stops sized for 1/4" (6 mm) tempered glass (by others). The door is ready for custom fabrication to accommodate storefront and commercial hardware options, making it a flexible choice for retail and office entrances.
Note: Included protruding hardware (handles, pivots, etc.) ships boxed separately and must be installed on site to prevent transit damage. Door widths under 36" (914 mm) may not meet A.D.A. inspection requirements.
Order SKU HE41971 or contact us for custom hardware options and installation guidance.
Specifications
BIM Objects - rvt
