Product Details
- 7-1/2" (191 mm) Bottom Rail
- Custom Fabricated to Accept Optional Hardware Applications
- Includes Standard Panic Pull, Hanging Hardware, Concealed Vertical Rod Panic Hardware, and One Cylinder
- Accommodates 1/4" (6 mm) Tempered Glass with the Option for 1" (25 mm) Tempered Insulating Unit (Glass Not Included)

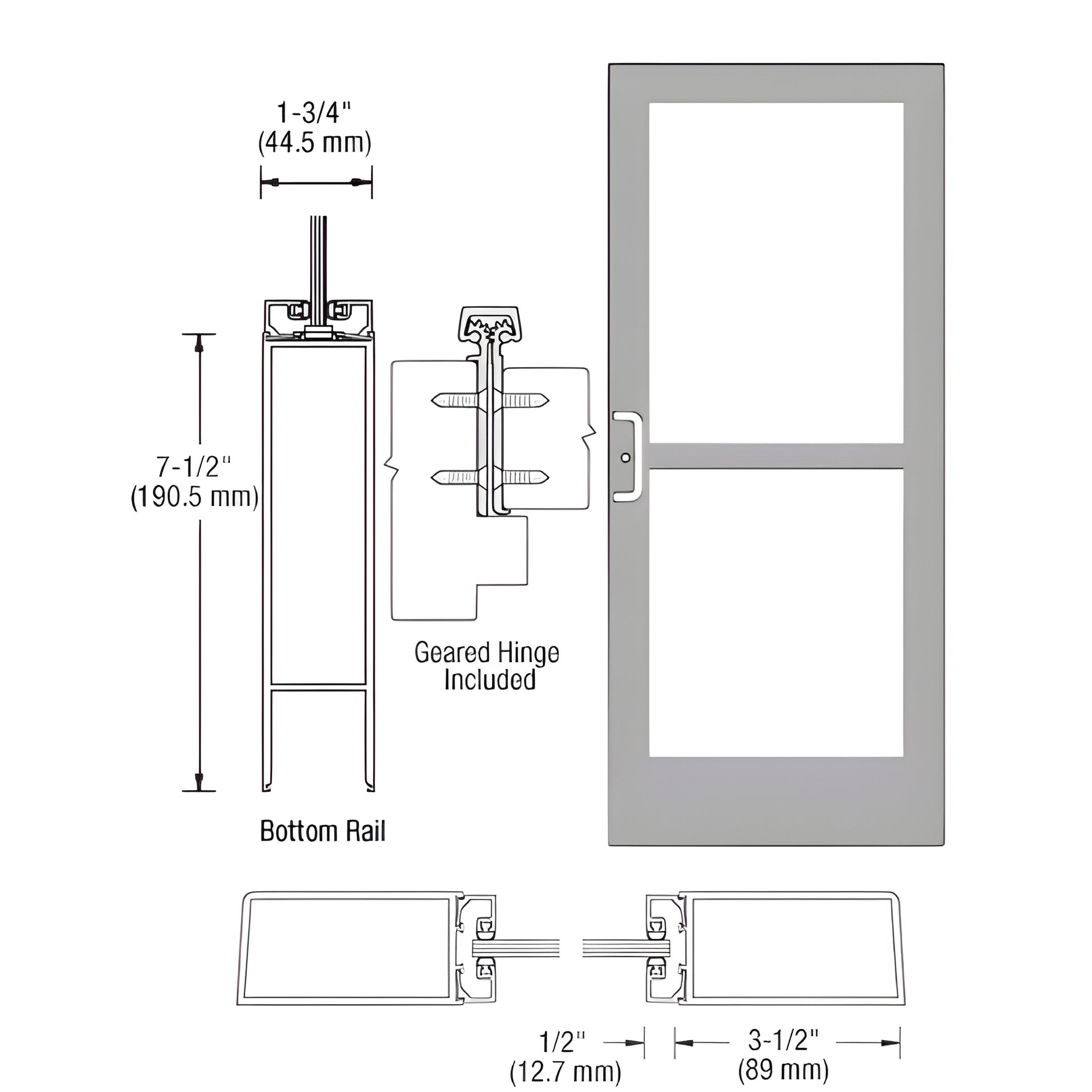

This Custom Medium Stile Entrance Door is built with 3-1/2" (89 mm) Stiles, 3-3/16" (81 mm) Top Rail, and 7-1/2" (191 mm) Bottom Rail. Standard features include stiles for Gear Hinge hardware, glass stops for 1/4" (6 mm) tempered glass (by others), ready for custom fabrication for a wide range of optional hardware applications.
Customer must install included protruding hardware (handles, pivots, etc.) that is boxed separately to prevent damage in transit. Door widths less than 36" (914 mm) may not pass A.D.A. Inspection.
