CRL-U.S. Aluminum 400 Offset Pivot Door — Clear Anodized, Closer Ready
CRL-U.S. Aluminum 400 Offset Pivot Door — Clear Anodized, Closer Ready
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# DC41111
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Clear Anodized Class 1
Overview
- Includes standard push/pull, hanging hardware, MS Hookbolt lock, and two keyed-alike cylinders (SKU: DC41111)
- Fits 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit can be accommodated (glass not included)
- 6-1/2" (165 mm) bottom rail
- Custom fabricated to accept a wide range of optional hardware applications, ready for commercial storefront and entrance door installations

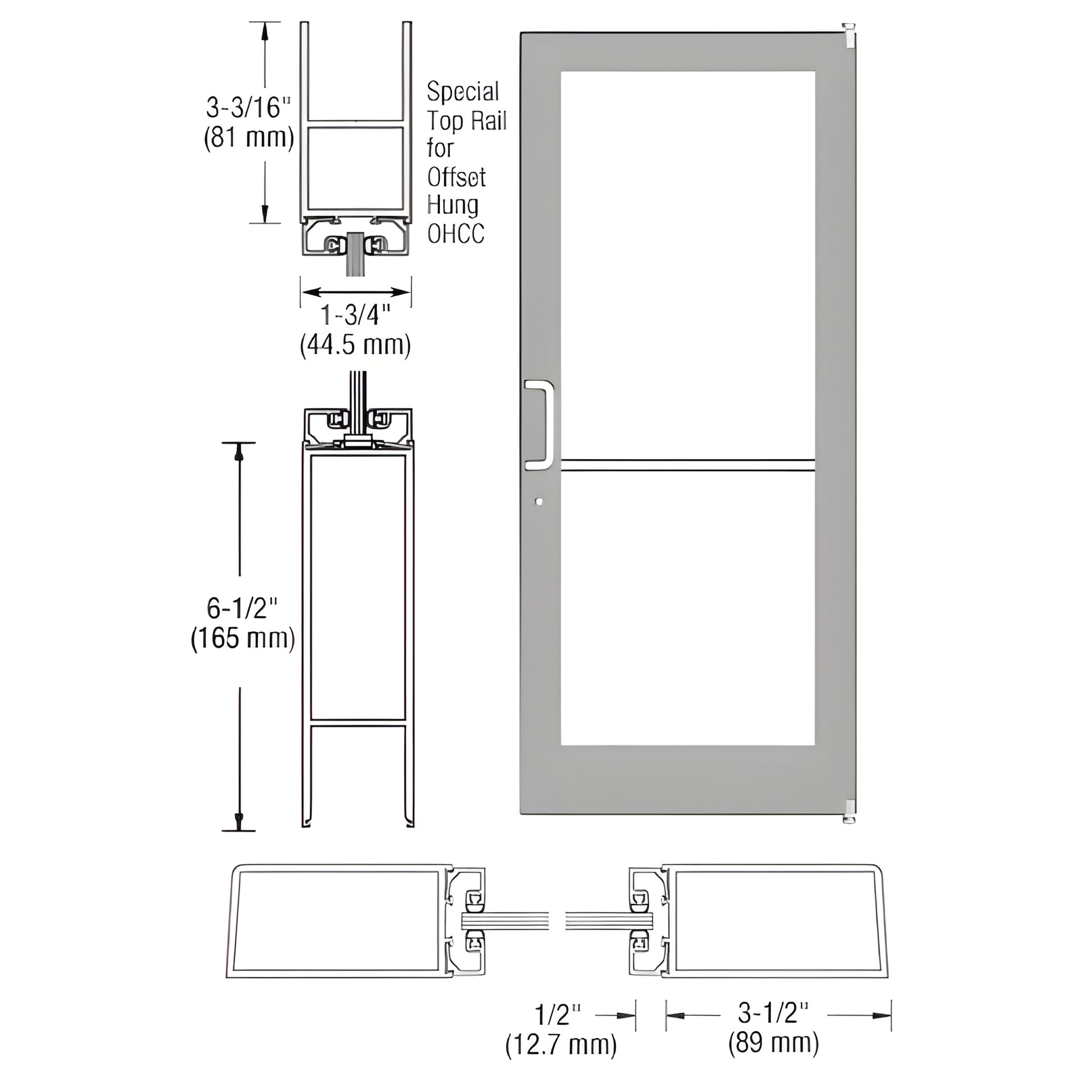

This CRL Custom Medium Stile Entrance Door features 3-1/2" (89 mm) stiles, a 3-3/16" (81 mm) top rail, and a 6-1/2" (165 mm) bottom rail. Standard design includes stiles for offset pivot hardware and glass stops for 1/4" (6 mm) tempered glass (by others). Built for custom fabrication to support optional hardware for commercial storefronts and medium stile entrance door projects.
Customer-installed hardware (handles, pivots, etc.) is boxed separately to prevent transit damage. Note: door widths under 36" (914 mm) may not meet A.D.A. inspection requirements.
Order this customizable medium stile entrance door (DC41111) or contact us for a quote and weight verification.
Specifications
BIM Objects - rvt
