CRL-U.S. Aluminum Custom Sized Clear Anodized Series 450 Tubular Gear Hinge Transom Frame Complete (1FT)

Product Details

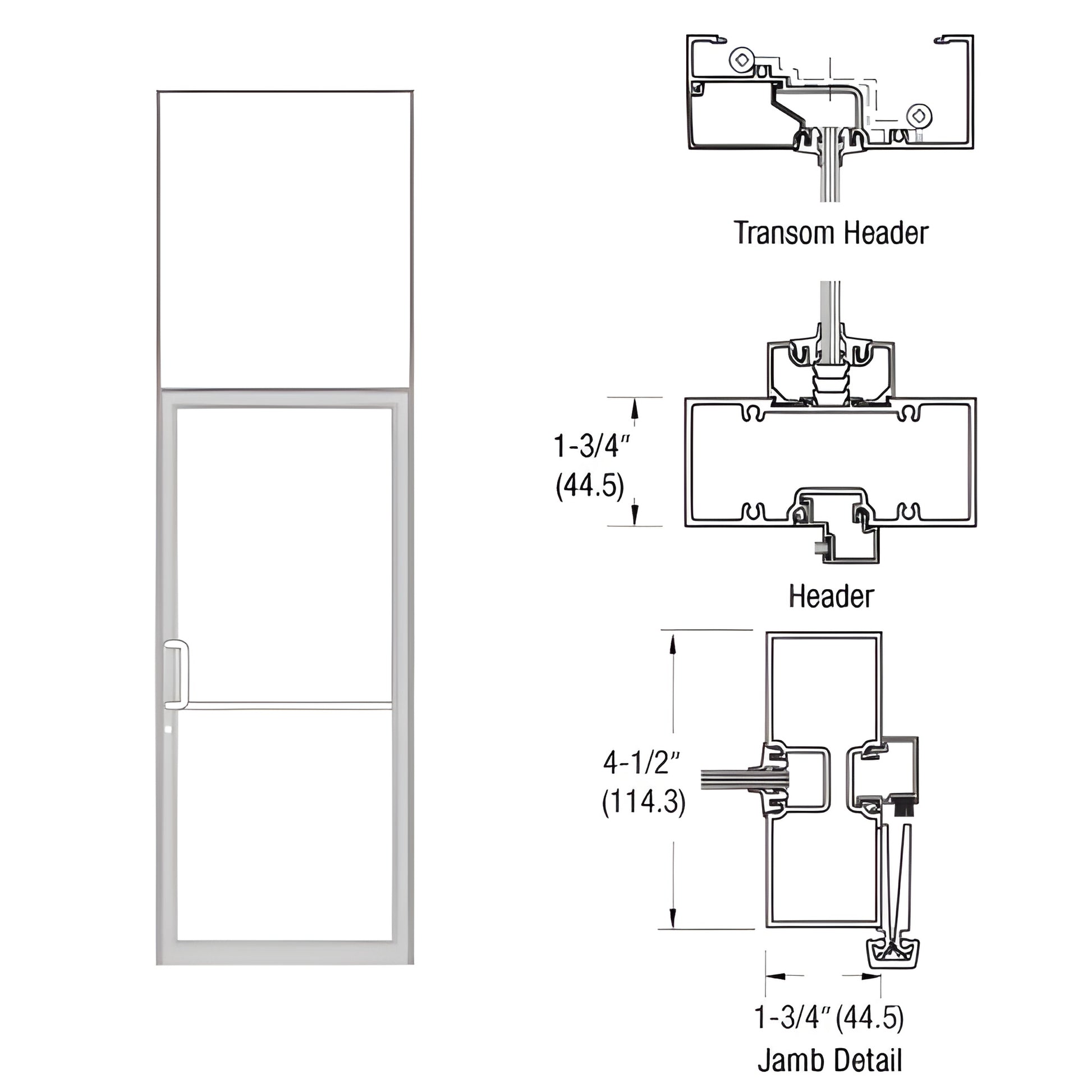

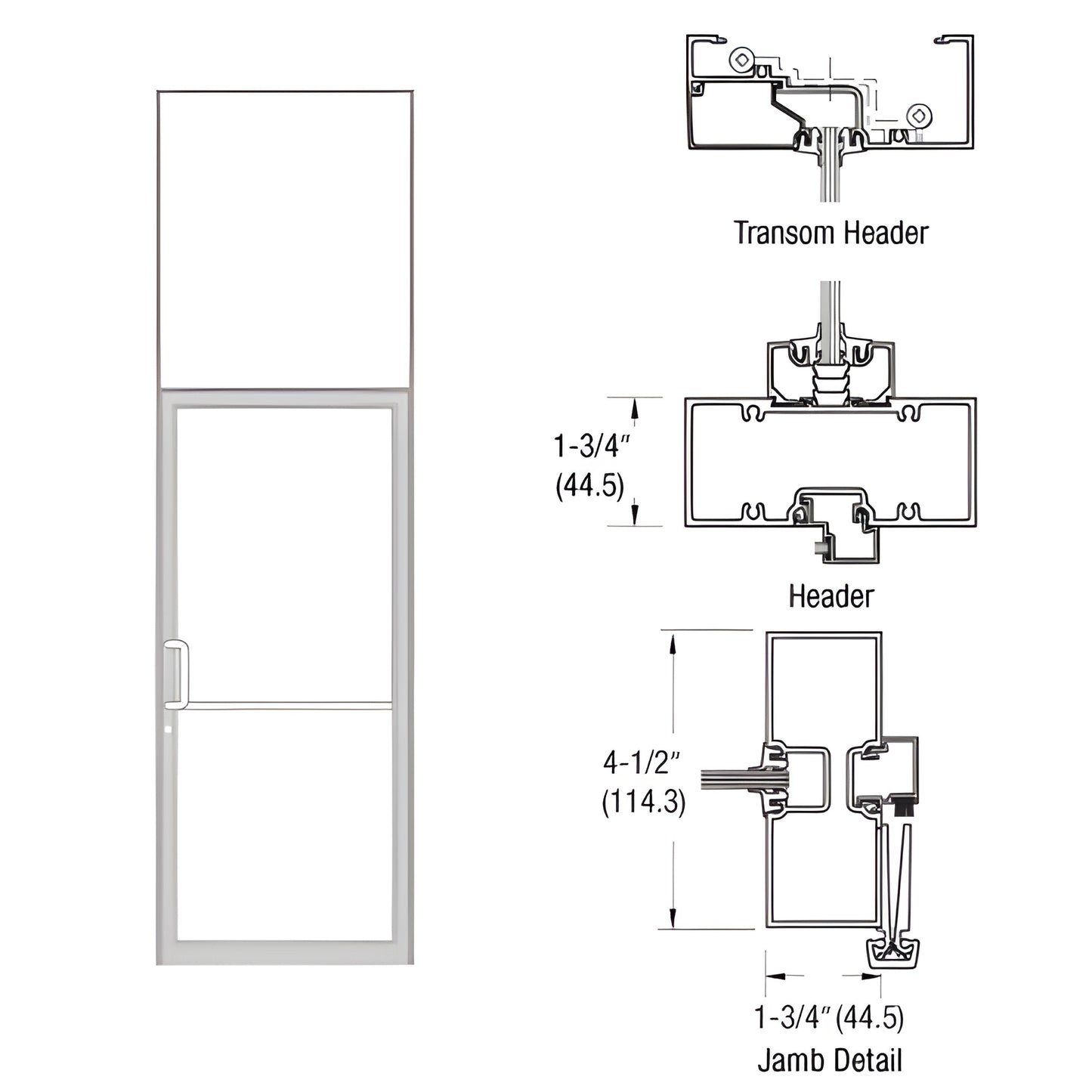

• 1-3/4" x 4-1/2" (44.5 x 114.3 mm) Gear Hinge Transom Frame with Tubular Jambs
• Custom Size
• Aluminum Threshold is Included
• With Standard Hookbolts

Complete Frame is built to accommodate a base 36" x 84" Gear Hinge Door for a Surface Mount Closer, constructed using JS455 Tubular Jambs with JS467 Header. Door stops, weatherstrip, standard hardware, and hardware preparations are included.

All fasteners, standard hardware, and hardware fabrication for frame assembly are included. Customer supplies fasteners to attach frame to opening. Frame widths less than 39-1/2" (1.0 m) may not pass A.D.A. Inspection.
