CRL-U.S. Aluminum Clear Anodized Class 1 40" x 86" 451 Series Right Hand Tubular Offset Pivot Up and Over Frame Complete (1F)

Product Details

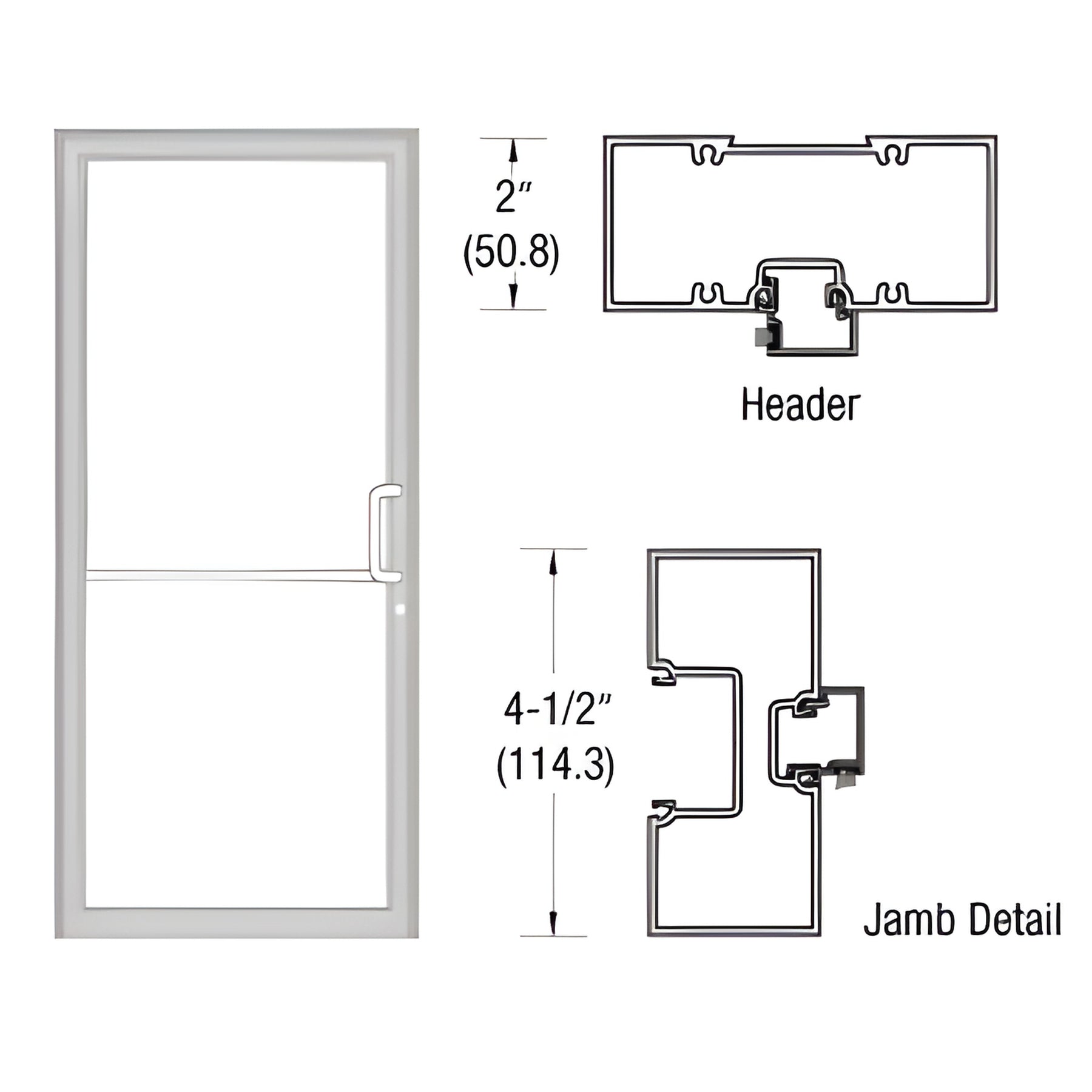

• 2" x 4-1/2" (50.8 x 114.3 mm) Offset Pivot Up and Over Frame with Tubular Jambs
• 40" x 86" (1.0 x 2.2 m) Base Frame Size (Outside Dimensions)
• 36" x 84" (.9 x 2.1 m) Door Opening
• Aluminum Threshold is Included

Complete Frame is built to accommodate a base 36" x 84" Offset Pivot Concealed Vertical Rod Panic Door for a Surface Mount Closer, constructed using 1S456 Tubular Jambs with 1S467 Header. All associated extrusions, weatherstrip, standard hardware, and hardware preparations are included.
