CRL-U.S. Aluminum 451 Custom Tubular Gear Hinge Up & Over Frame
CRL-U.S. Aluminum 451 Custom Tubular Gear Hinge Up & Over Frame
Regular price
$914.60 CAD
Regular price
Sale price
$914.60 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# FR71822
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Black Bronze Anodized Class 1
Overview

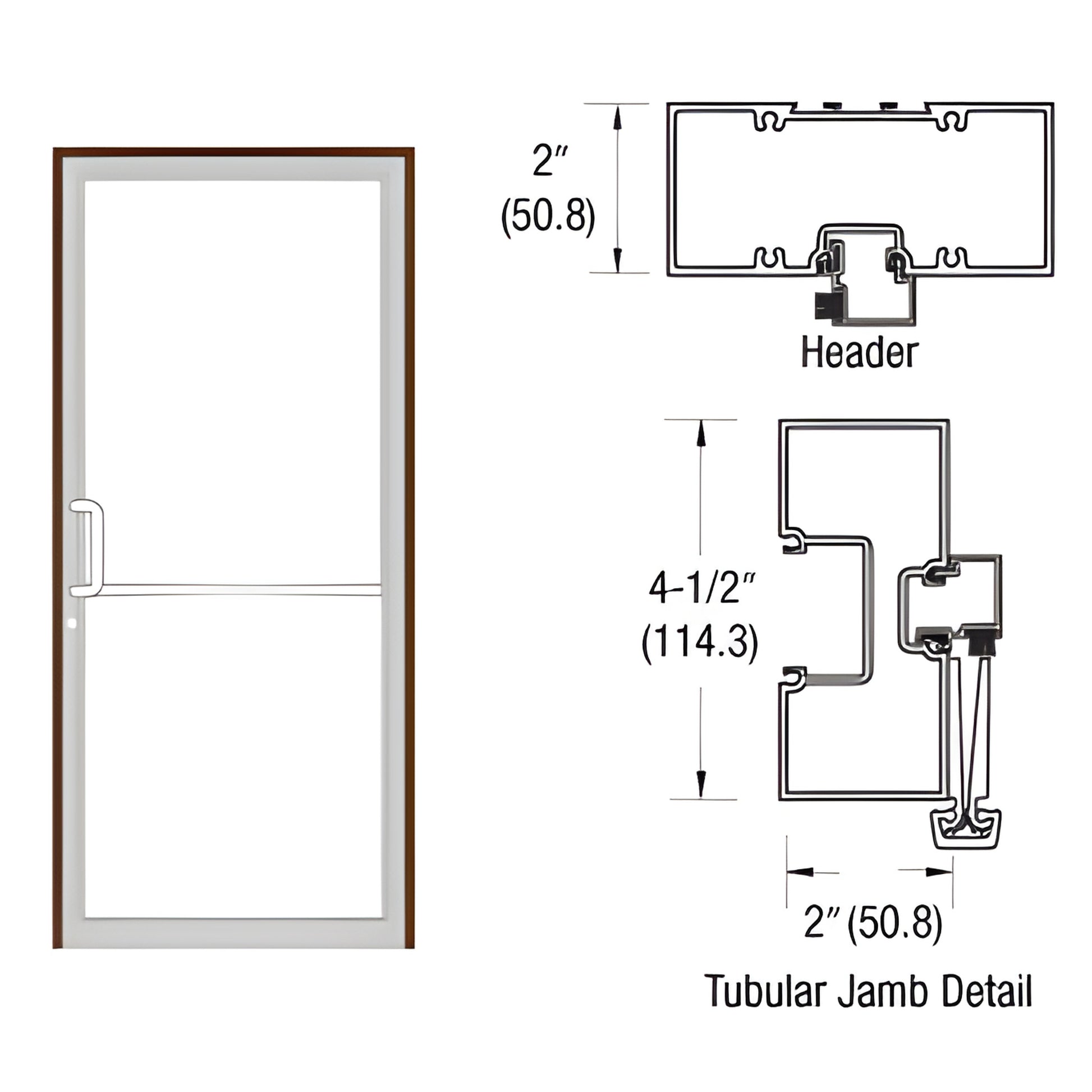

- 2" x 4-1/2" (50.8 x 114.3 mm) Gear Hinge Up and Over Frame with Tubular Jambs
- Custom Size
- Aluminum Threshold is Included
- With Standard Hookbolts
Complete Frame built for a base 36" x 84" Gear Hinge Door with Surface Mount Closer. Constructed using 1S456 tubular jambs and 1S467 header; includes door stops, weatherstrip, standard hardware, and hardware preparations for quick on-site installation.
All fasteners for frame assembly, standard hardware, and hardware fabrication are included; customer supplies fasteners to attach frame to opening. Note: frame widths less than 40" (1.0 m) may not meet A.D.A. inspection requirements.
SKU: FR71822 — Gear hinge up-and-over frame with tubular jambs and aluminum threshold, ideal for commercial door retrofits and custom-size openings.
Order this FR71822 gear hinge frame today or contact us for custom sizing and installation guidance.
