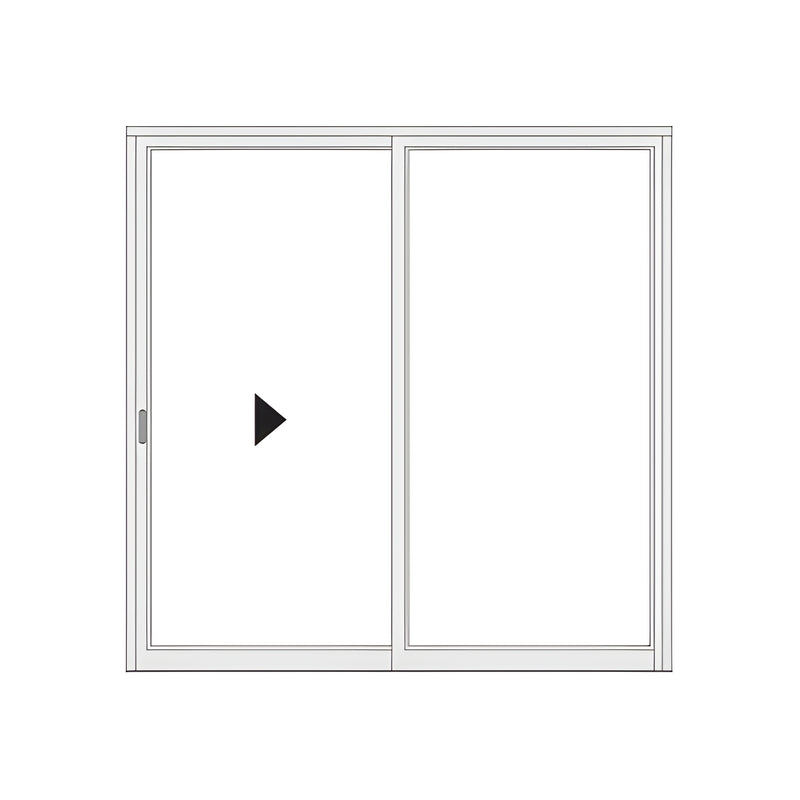

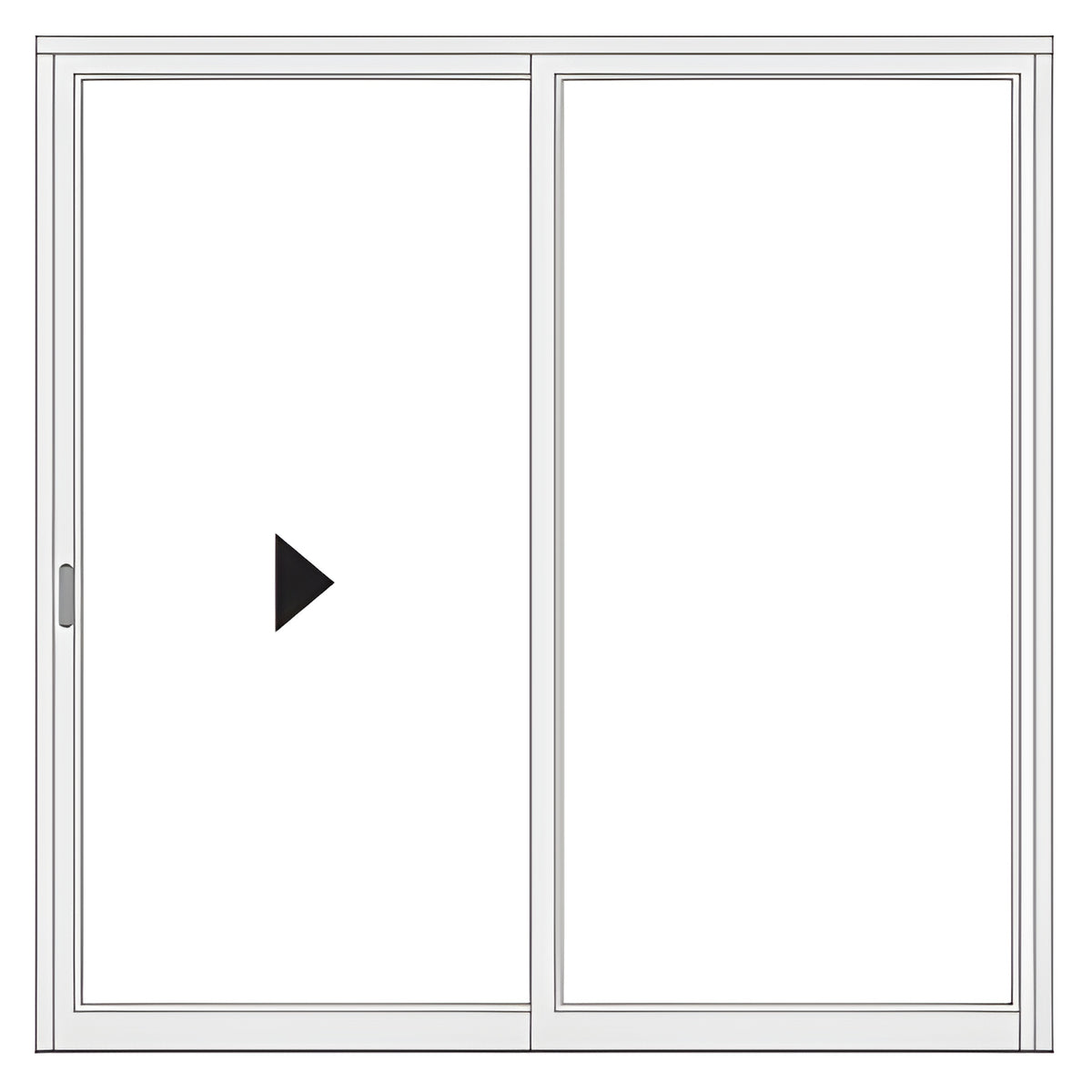

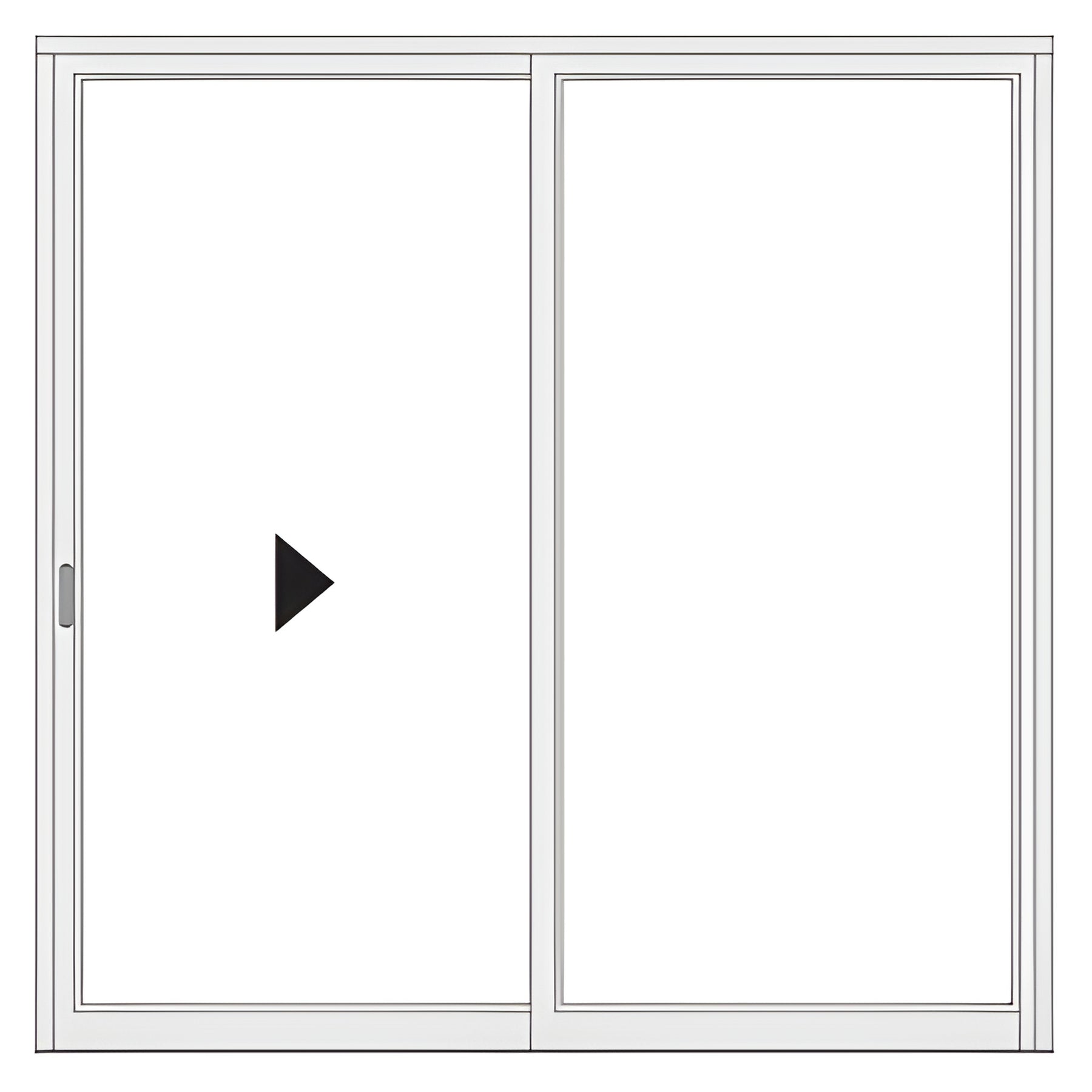

CRL-U.S. Aluminum 48x96 Narrow Stile KYNAR® Sliding Entrance Door
Item# SD20052
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Finish/Color
White Kynar
- 9-1/2" (241 mm) bottom rail available to comply with A.D.A. and Title 24 applications
- Multiple configurations to suit interior mall entrances and other commercial applications
- Custom fabricated to accept optional hardware and glazing systems (glass not included)
- Accepts 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit accommodated
- Includes flush finger pulls, MS hookbolt lock with two keyed-alike 3-pin cylinders, and adjustable tandem steel rollers
This Custom Narrow Stile Entrance Door (SKU: SD20052) features 2" (51 mm) stiles, a 2-1/8" (54 mm) top rail, and a 3-3/16" (81 mm) bottom rail. Designed for narrow stile sliding storefronts, the Series 2000 Sliders are intended for interior mall entrances and are not for exterior applications. Standard preparation includes stiles for sliding hardware and glass stops for 1/4" (6 mm) tempered glass; door is ready for custom fabrication to accommodate a wide range of optional hardware applications.
Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your monitor and settings.
Request a quote or contact CRL Customer Service to confirm specifications and pricing.
Specifications
