CRL-U.S. Aluminum 550 Anodized Wide-Stile Butt Hinge for Panic Doors

• 9-1/2" (241 mm) bottom rail installed to comply with A.D.A.
• Custom fabricated to accept optional hardware applications
• Includes standard panic pull, hanging hardware, concealed vertical rod panic hardware, and one cylinder
• Accommodates 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit available (glass not included)

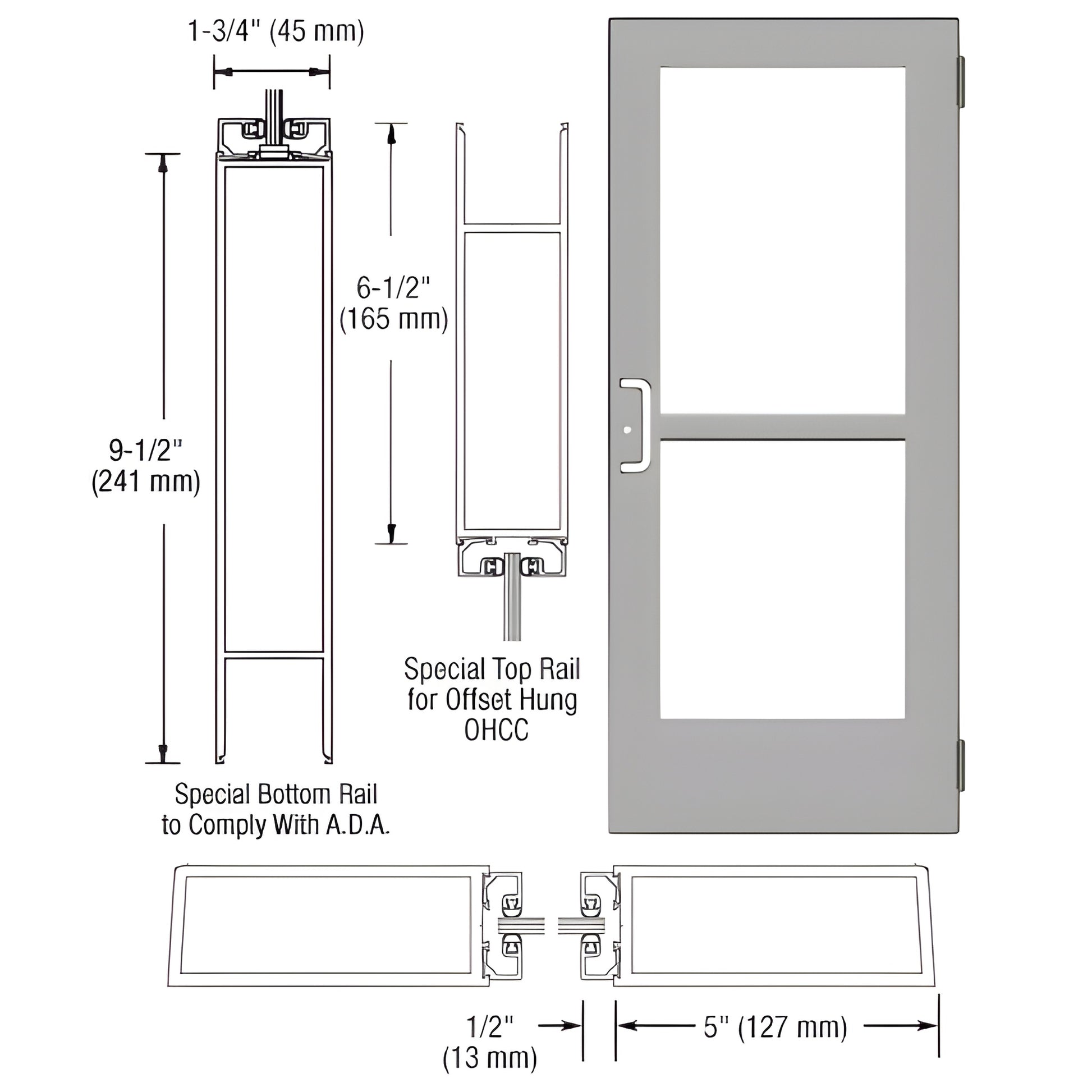

This CRL Custom Wide Stile Entrance Door (SKU: CZ51411) features 5" (127 mm) stiles, a 5-1/2" (140 mm) top rail, and a 9-1/2" (241 mm) ADA-compliant bottom rail. Engineered for commercial and institutional installations, the wide-stile design accepts butt hinge hardware and glass stops for 1/4" (6 mm) tempered glass (glass supplied by others). The door is ready for custom fabrication to support a wide range of optional hardware—ideal for high-traffic exterior or interior commercial entrances requiring panic hardware and cylinder lock compatibility.

Note: Included protruding hardware (handles, pivots, etc.) is boxed separately to prevent transit damage and must be installed by the customer. Doors under 36" (914 mm) wide may not meet A.D.A. inspection requirements. Glass and insulating units are not included; specify glass thickness when ordering options.

Order SKU CZ51411 today or contact CRL for custom hardware and glass options to complete your commercial entrance solution.
