CRL-U.S. Aluminum 550 Anodized Wide-Stile Offset Pivot Entrance Door
Item# DE51111
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Finish/Color
Clear Anodized Class 1
- Includes standard push/pull, hanging hardware, MS hookbolt lock, and two keyed-alike cylinders—convenient for commercial storefront and office entrances
- Accepts 1/4” (6 mm) tempered glass with optional 1” (25 mm) tempered insulating unit (glass not included)
- 9-1/2" (241 mm) bottom rail installed to comply with A.D.A.
- Custom fabricated to accept a wide range of optional hardware applications; stiles are drilled for offset pivot hardware

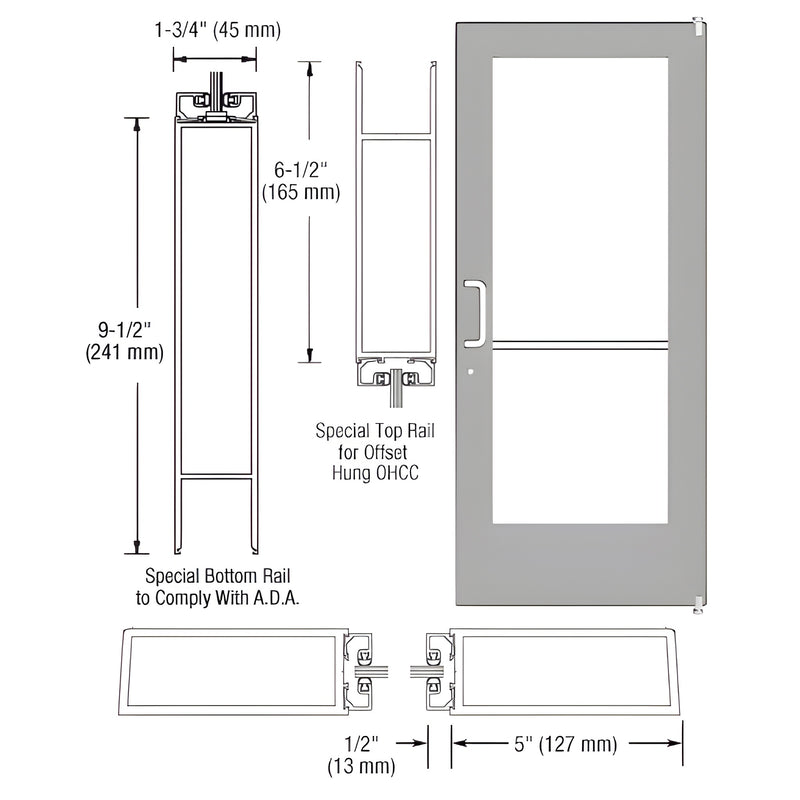

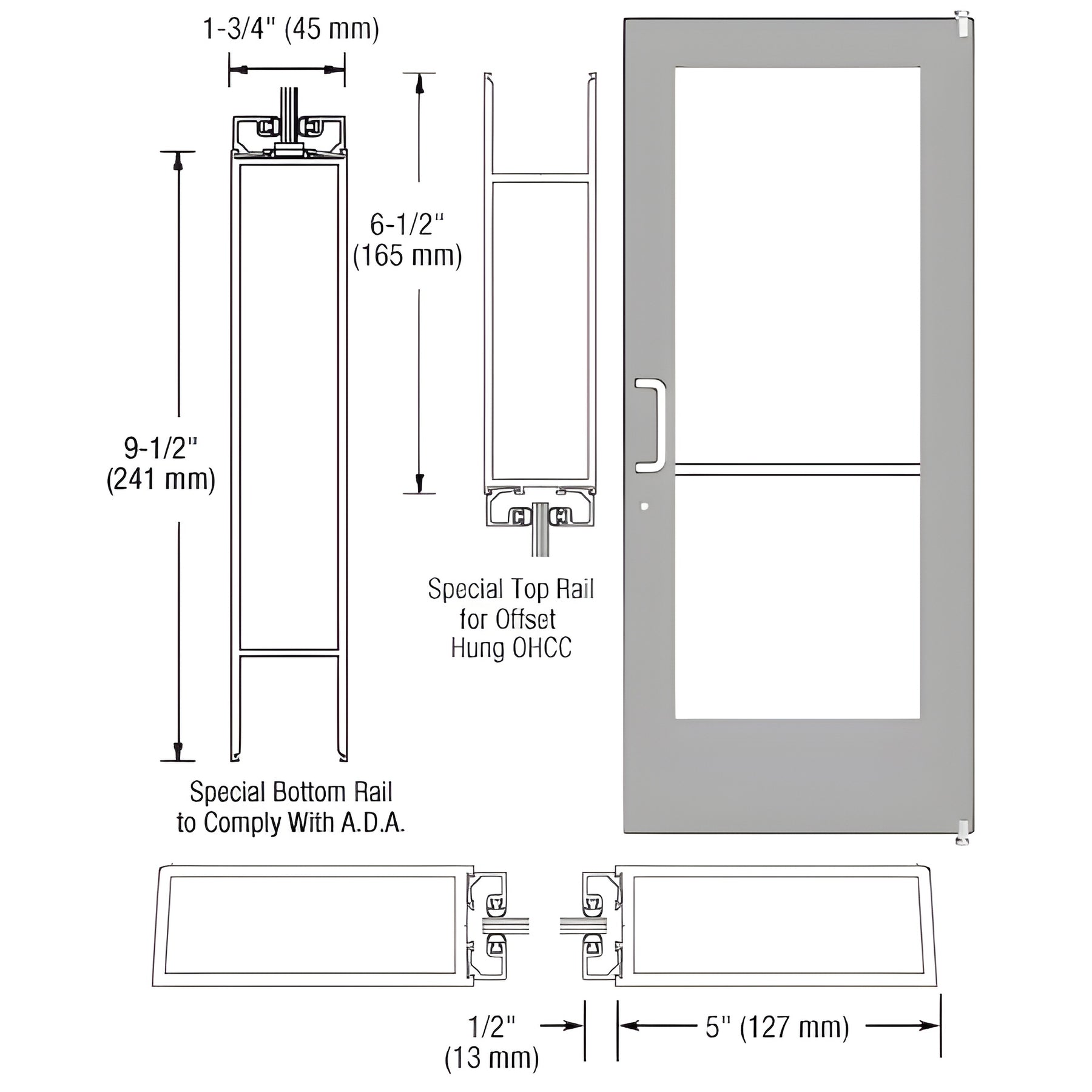

This Custom Wide Stile Entrance Door (SKU: DE51111) features 5" (127 mm) stiles, a 5-1/2" (140 mm) top rail, and a 9-1/2" (241 mm) bottom rail. Glass stops are set for 1/4” (6 mm) tempered glass (supplied by others). Hardware (handles, pivots, etc.) ships boxed separately to prevent damage and must be installed by the customer. Note: door widths under 36" (914 mm) may not pass A.D.A. inspection.
Shipping weights are approximate; request exact weight from CRL Customer Service if needed to determine shipping costs. Product images are representative; actual colors may vary with monitor settings.
Key differentiators: ADA-compliant bottom rail, keyed‑alike cylinders for simplified key management, prepped for offset pivot hardware, and custom fabrication options for commercial storefront applications.
Ready to spec this custom entrance door for your project? Contact CRL Customer Service to order or request exact shipping weight.
