CRL-U.S. Aluminum 550 Center-Pivot Entrance Door, White KYNAR®
Item# DE51752
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Finish/Color
White Kynar

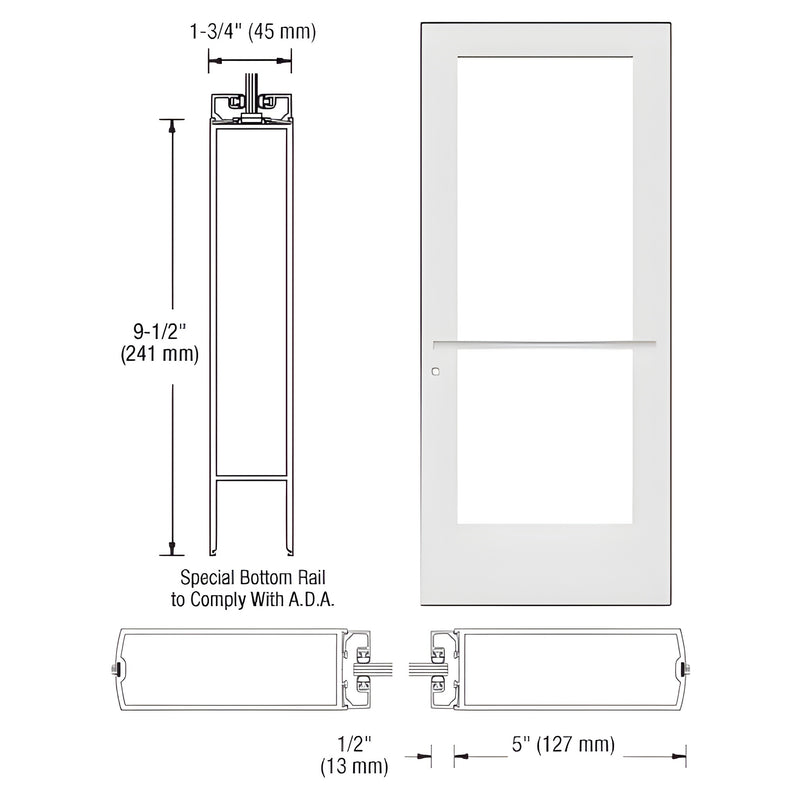

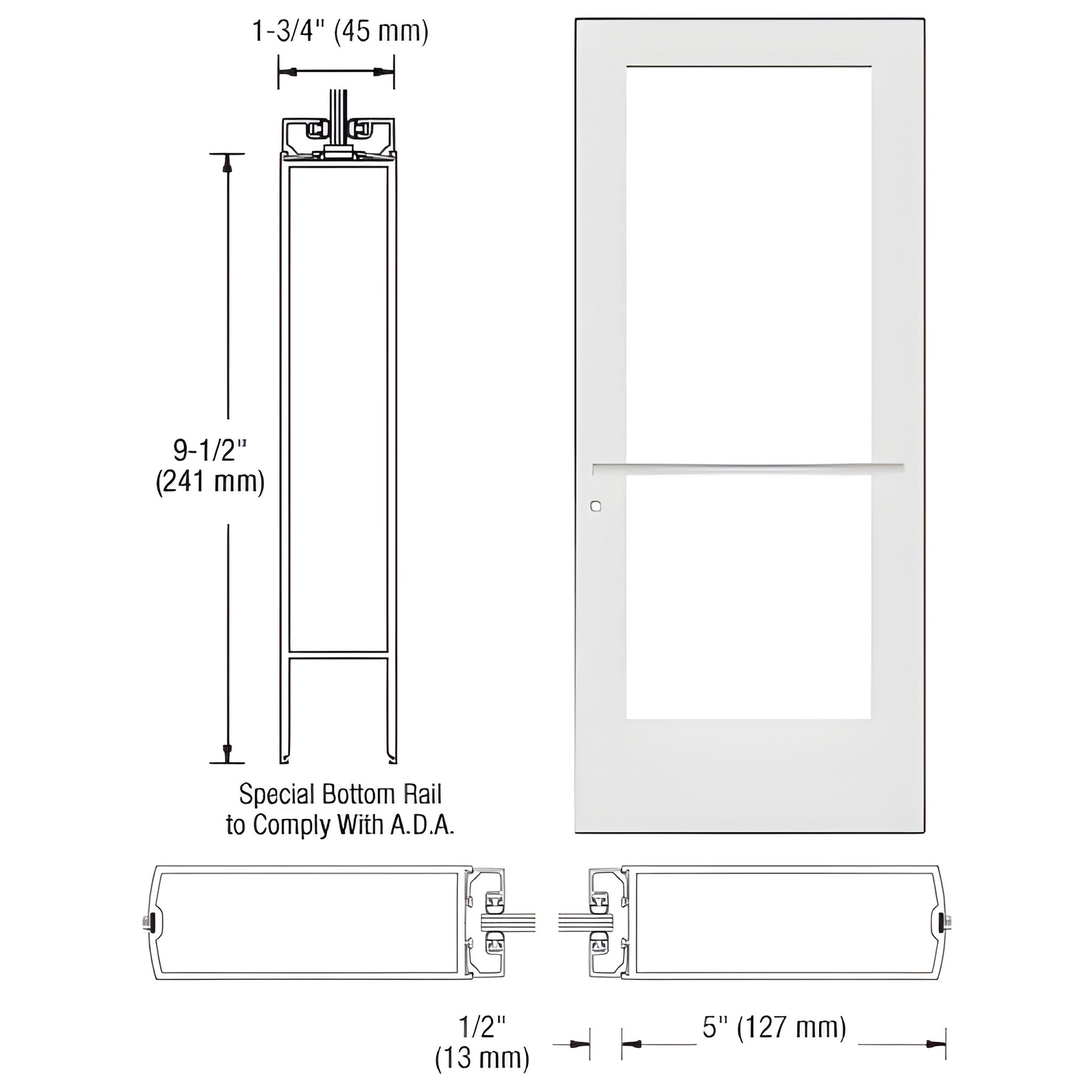

- 9-1/2" (241 mm) bottom rail installed to comply with A.D.A.
- Custom fabricated to accept optional hardware applications
- Includes standard push/pull, hanging hardware, MS Hookbolt lock, and two keyed-alike cylinders
- Accepts 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit available (glass not included)
This Custom Wide Stile Entrance Door (SKU: DE51752) features 5" (127 mm) stiles, a 5-1/2" (140 mm) top rail, and a 9-1/2" (241 mm) ADA-compliant bottom rail. Designed for commercial applications, the door ships with stiles prepared for center pivot hardware and glass stops for 1/4" tempered glass (by others). It is ready for custom fabrication to accommodate a wide range of optional hardware, including MS Hookbolt locking systems and keyed-alike cylinders.
Customer-installed protruding hardware (handles, pivots, etc.) is boxed separately to prevent transit damage. Note: door widths under 36" (914 mm) may not meet A.D.A. inspection requirements.
Most shipping weights are approximate and unverified. If you require exact weight to determine shipping costs, contact CRL Customer Service before ordering. Product images are representative; actual colors may vary based on your monitor and video card.
Order SKU DE51752 today to get a commercial-grade, ADA-ready entrance door tailored for tempered glass and custom hardware applications.
BIM Objects - rvt
