CRL-U.S. Aluminum 550 Clear-Anodized Butt Hinge Custom, Panic, Closer

• Includes standard panic pull, hanging hardware, concealed vertical rod panic hardware, and one cylinder
• Accepts 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit compatible (glass not included)

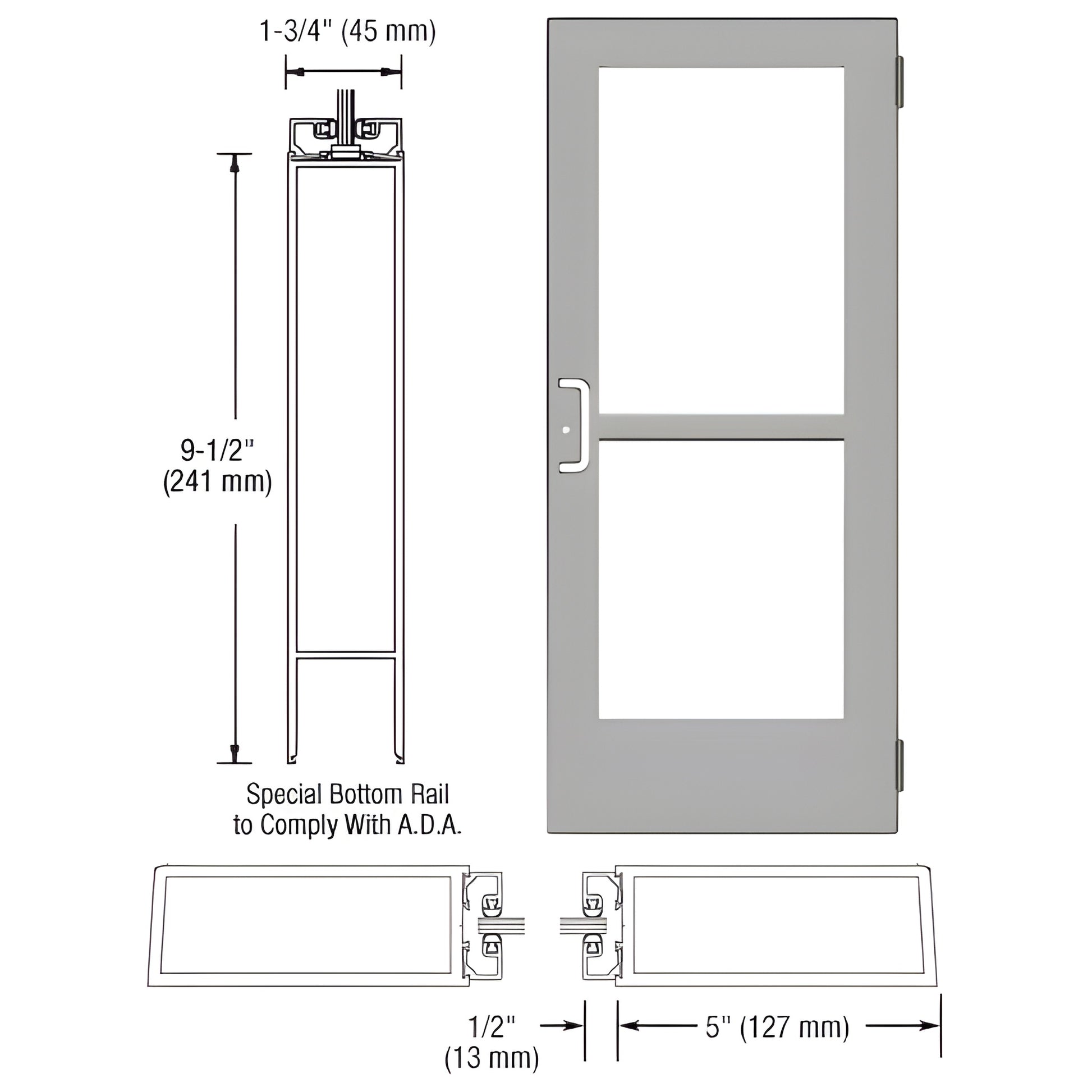

• 9-1/2" (241 mm) bottom rail installed for A.D.A. compliance on qualifying widths
• Custom fabricated to accept a wide range of optional hardware applications (butt hinges, pivots, surface or concealed hardware)

This CRL Custom Wide Stile Entrance Door (SKU: CZ51511) features 5" (127 mm) stiles, a 5-1/2" (140 mm) top rail, and a 9-1/2" (241 mm) bottom rail. Designed for commercial use, this custom wide stile entrance door ships with stiles prepped for butt hinge hardware and glass stops for 1/4" (6 mm) tempered glass (by others). Ready for custom fabrication to accept concealed vertical rod panic hardware, panic pulls, and other optional commercial door hardware.

Included protruding hardware (handles, pivots, etc.) is boxed separately and must be installed by the customer to avoid transit damage. Note: door widths under 36" (914 mm) may not meet A.D.A. inspection requirements.

Why choose this custom wide stile entrance door: built for commercial storefronts and high-traffic entrances, compatible with tempered glass and insulated glazing options, and prepped for panic hardware—ideal when ADA-compliant bottom rails and robust security hardware are required.

Order SKU CZ51511 or contact CRL for custom hardware options and installation guidance.
