Description
Finish/Color
Clear Anodized Class 1
Overview
- Accommodates 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit compatible (glass not included)
- 9-1/2" (241 mm) bottom rail option available to meet A.D.A. and Title 21 requirements
- Custom fabricated to accept a wide range of optional hardware applications for commercial entrance use
- Includes standard panic pull and hanging hardware; selected panic hardware and one cylinder are ordered and added separately

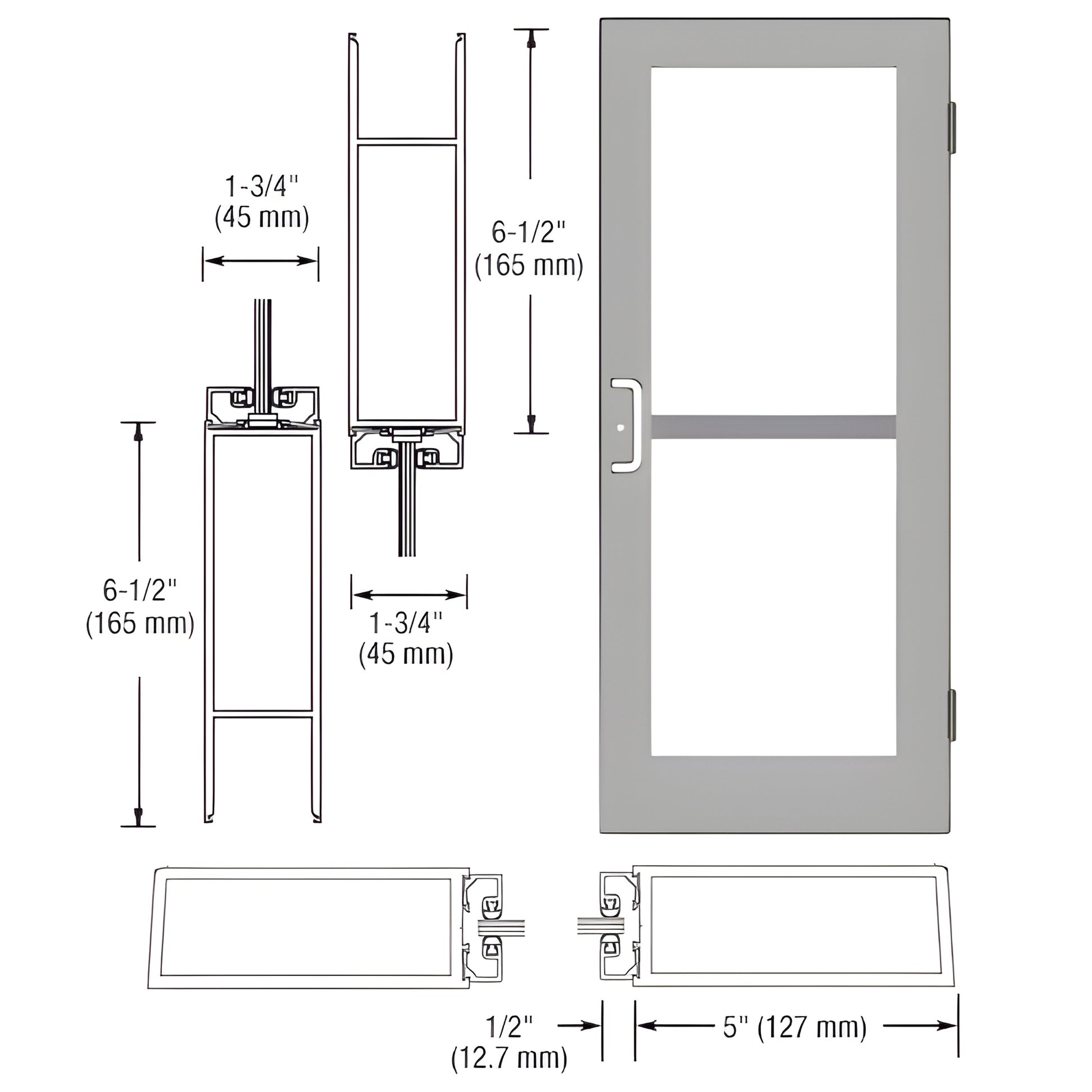

This Custom Wide Stile Entrance Door (SKU: DZ51411) features 5" (127 mm) stiles, a 6-1/2" (165 mm) top rail, and a 6-1/2" (165 mm) bottom rail. Standard stiles are prepped for butt hinge hardware and include glass stops for 1/4" (6 mm) tempered glass (glass supplied by others). Built for commercial applications, the door is ready for custom fabrication to accommodate optional locksets, panic hardware, and other commercial-grade accessories.
Customer-installed protruding hardware (handles, pivots, etc.) is boxed separately to prevent transit damage. Note: door widths under 36" (914 mm) may not pass A.D.A. inspection—select the 9-1/2" bottom rail option for ADA compliance where required.
Specifications
BIM Objects - rvt
