CRL-U.S. Aluminum 550 Clear Anodized Wide Stile Butt Hinge Pair

• Accommodates 1/4" (6 mm) tempered glass or optional 1" (25 mm) tempered insulating unit (glass not included)
• 9-1/2" (241 mm) bottom rail available to comply with A.D.A. and Title 21 applications
• Custom fabricated to accept a wide range of optional hardware applications
• Selected panic hardware and one cylinder must be ordered and added separately
• Includes standard panic pull and hanging hardware; protruding hardware (handles, pivots, etc.) boxed separately for customer installation to prevent transit damage

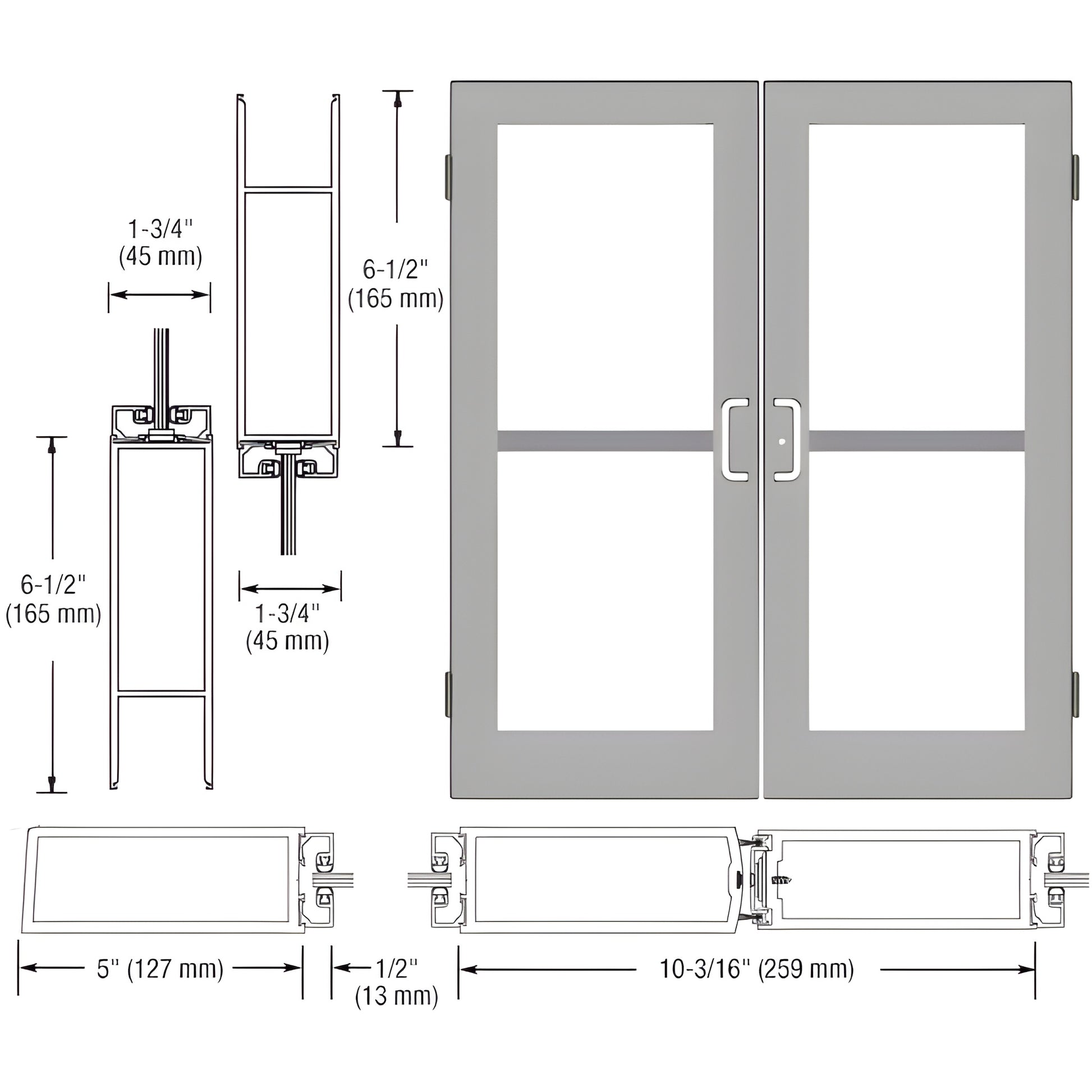

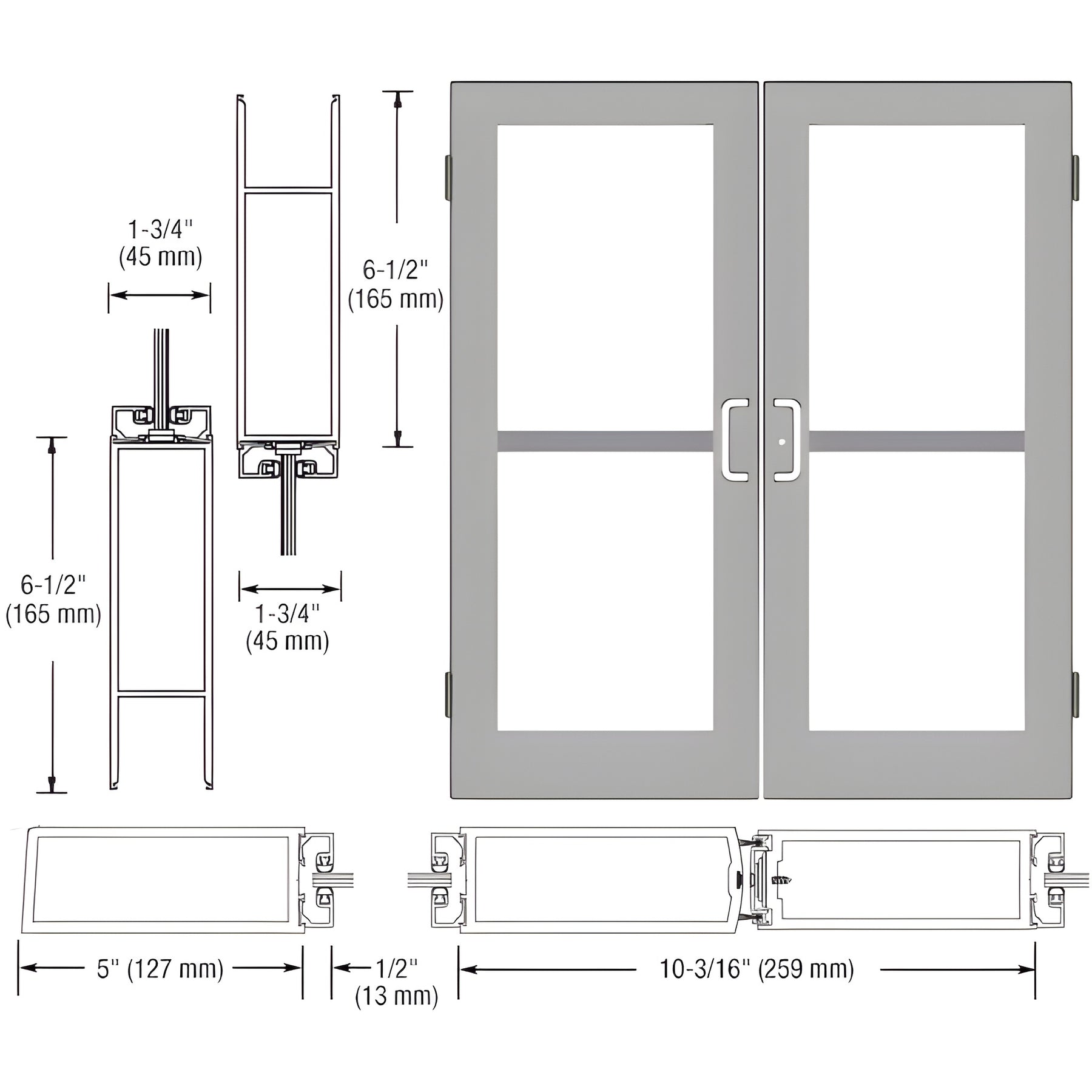

This Custom Wide Stile Entrance Door (SKU: DZ52411) features 5" (127 mm) stiles, a 5-1/2" (140 mm) top rail, and a 6-1/2" (165 mm) bottom rail. Standard preparation includes stiles for butt hinge hardware and glass stops for 1/4" (6 mm) tempered glass. The door is ready for custom fabrication to accommodate optional panic hardware and other specified hardware configurations — ideal for commercial entryways requiring ADA-compliant bottom rail options and panic hardware compatibility.

Customer must install included protruding hardware (handles, pivots, etc.) that is boxed separately to prevent damage in transit.

Order SKU DZ52411 or contact CRL for quoting and hardware options.
