CRL-U.S. Aluminum 550 Clear Anodized Wide Stile Door Butt Hinge Pair
CRL-U.S. Aluminum 550 Clear Anodized Wide Stile Door Butt Hinge Pair
Regular price
$2,538.80 CAD
Regular price
Sale price
$2,538.80 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# DC52511
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Clear Anodized Class 1
Overview
- Accommodates 1/4" (6 mm) tempered glass or optional 1" (25 mm) tempered insulating glass unit (glass not included)
- Includes active and inactive leaf with all standard hardware; stiles configured for butt hinge installation
- 9-1/2" (241 mm) bottom rail option available to meet A.D.A. and Title 24 applications
- Custom fabricated to accept a wide range of optional hardware applications

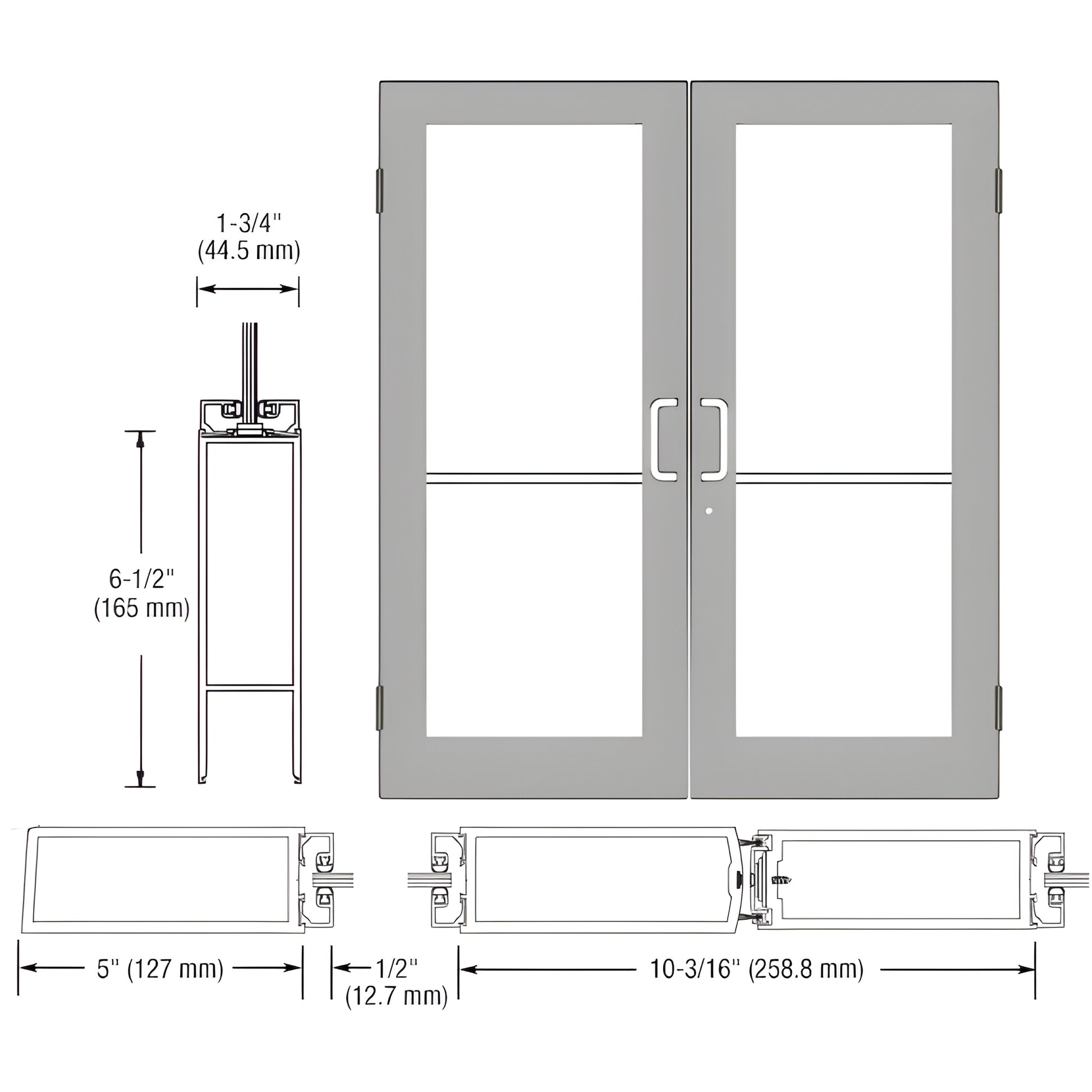

This Custom Wide Stile Entrance Door (SKU: DC52511) features 5" (127 mm) stiles, a 5-1/2" (140 mm) top rail, and a 6-1/2" (165 mm) bottom rail. Standard build includes glass stops sized for 1/4" (6 mm) tempered glass and is ready for custom fabrication to accommodate additional hardware. Ideal for commercial storefronts, ADA-compliant entrances, and retrofit projects requiring a robust wide-stile door solution.
Hardware shipped separately is boxed to prevent transit damage; customer installation of protruding hardware (handles, pivots, etc.) is required.
